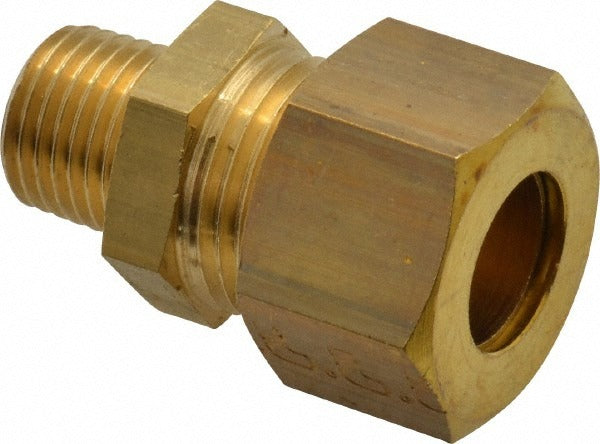

Legris 0105 12 13 Compression Tube Connector 1/4 Inch

Product Description

The LEGRIS 0105 12 13 is a brass compression tube connector designed to join tubing to male BSPT-threaded ports in pneumatic and fluid-handling systems. It features a compression-style end on one side and a 1/4-inch male BSPT (MBSPT) thread on the other, providing a reliable, leak-resistant connection without requiring solder or flare tooling. Rated to 320 psi maximum working pressure, it handles temperatures from -40 degrees F to 210 degrees F. The brass construction offers good corrosion resistance in general industrial environments. Licensed plumbers, pipefitters, and pneumatic system technicians are the primary installers of this fitting.

This connector is suited for use in compressed air lines, hydraulic fluid circuits, and process piping where a compression-to-BSPT male threaded transition is required. It accommodates tubing with a 12 mm outside diameter and is appropriate for both light industrial and demanding environments where ATEX, PED, and REACH RoHS compliance is required. Typical applications include pneumatic control panels, machine tool installations, and process equipment requiring rated fittings.

Key Features

• Compression x MBSPT end connections for tool-free tube installation on one end
• 1/4-inch BSPT thread for compatibility with metric-threaded ports and valves
• Rated to 320 psi maximum working pressure
• Operating temperature range of -40 degrees F to 210 degrees F
• Brass construction for corrosion resistance in general industrial service
• Meets ATEX, PED, CNOMO E07.21.115N, Prop 65, REACH, and RoHS standards

Compatibility

Designed for use with tubing having a 12 mm outside diameter and systems with 1/4-inch male BSPT-threaded ports. Suitable for pneumatic and fluid-handling installations requiring ATEX- and PED-compliant compression fittings.

Installation Notes

Installation is typically performed by licensed pipefitters or pneumatic system technicians. Depressurize and isolate the circuit completely before removing or installing any fitting. Ensure tubing is cut cleanly and squarely and is fully seated in the compression body before tightening the nut. Verify thread standard compatibility before installation, as BSPT threads are not interchangeable with NPT threads.
