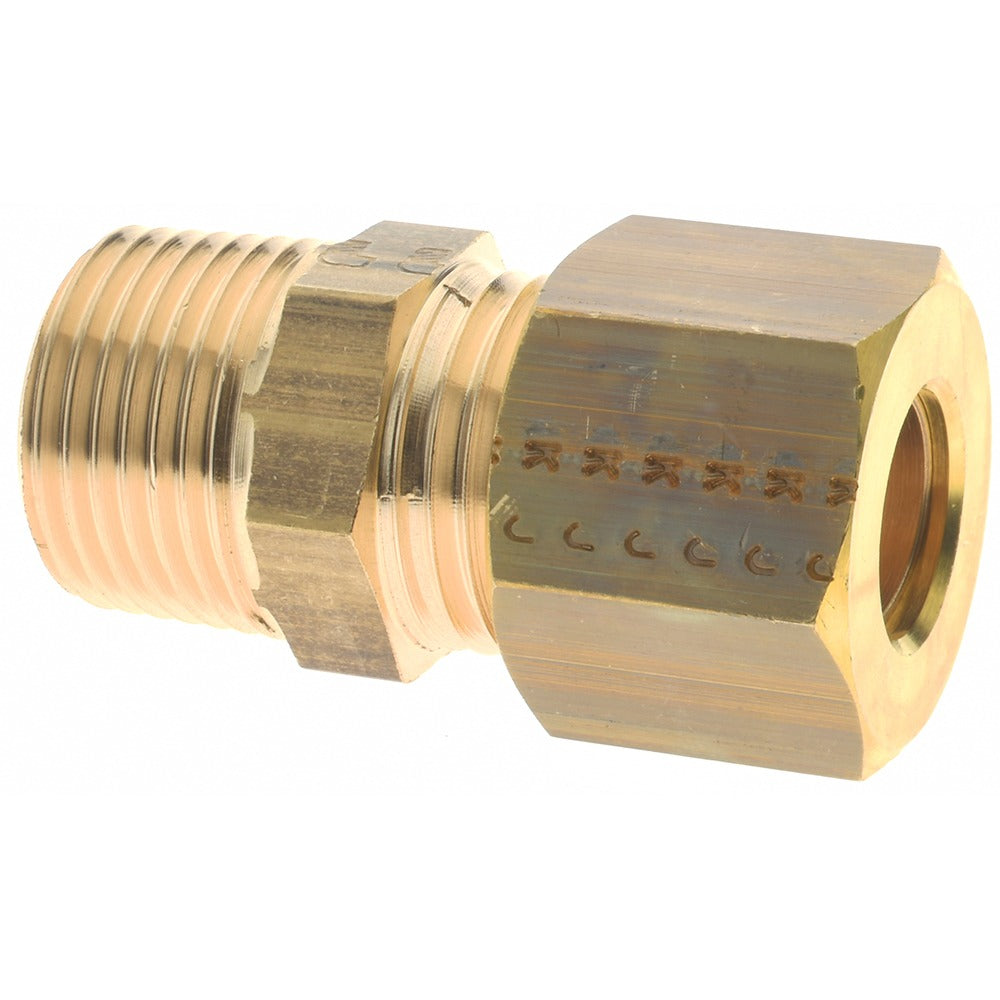

Legris 0105 10 17 Compression Tube Connector 3/8 Bspt

Product Description

The LEGRIS 0105 10 17 is a brass compression tube connector designed to join compressed air and fluid lines in industrial plumbing and pneumatic systems. It provides a Compression x MBSPT end connection with a 3/8 inch BSPT thread, suited for tubing with a 10 mm outside diameter. Rated to 330 psi maximum working pressure and a temperature range of -40 degrees F to 210 degrees F, this fitting handles demanding service conditions. The brass construction offers corrosion resistance and mechanical durability in both stationary and mobile equipment installations. Licensed plumbers, pipefitters, and industrial maintenance technicians are the typical installers.

This connector is used in industrial and commercial pneumatic or fluid-transfer systems where a compression fitting must terminate at a male BSPT threaded port. Typical applications include compressed air distribution headers, hydraulic manifold connections, and process fluid lines requiring a reliable, leak-resistant compression joint. The BSPT thread standard makes this fitting common in European-specification equipment and imported machinery encountered in manufacturing, automation, and process industries. It is sold individually and is intended for single-unit replacement or new installation work.

Key Features

• Brass construction provides corrosion resistance and long service life in fluid and air lines
• Compression x MBSPT end connections allow direct attachment to 10 mm OD tubing and BSPT threaded ports
• 330 psi maximum working pressure rating supports industrial compressed air and fluid service
• Wide temperature range of -40 degrees F to 210 degrees F suits both cold and elevated-temperature environments
• Compliant with ATEX, CNOMO E07.21.115N, PED, Prop 65, REACH, and RoHS standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for industrial pneumatic and fluid systems requiring a 3/8 inch BSPT male thread with a 10 mm OD compression tube connection.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified industrial maintenance technician familiar with compression fittings and BSPT thread standards. Depressurize and isolate the line completely before disconnecting or installing any fitting. Use appropriate thread sealant compatible with the system fluid and verify that the compression ferrule seats squarely on the tubing before tightening. Refer to applicable local codes and the system manufacturer's specifications for torque and pressure-testing requirements.
