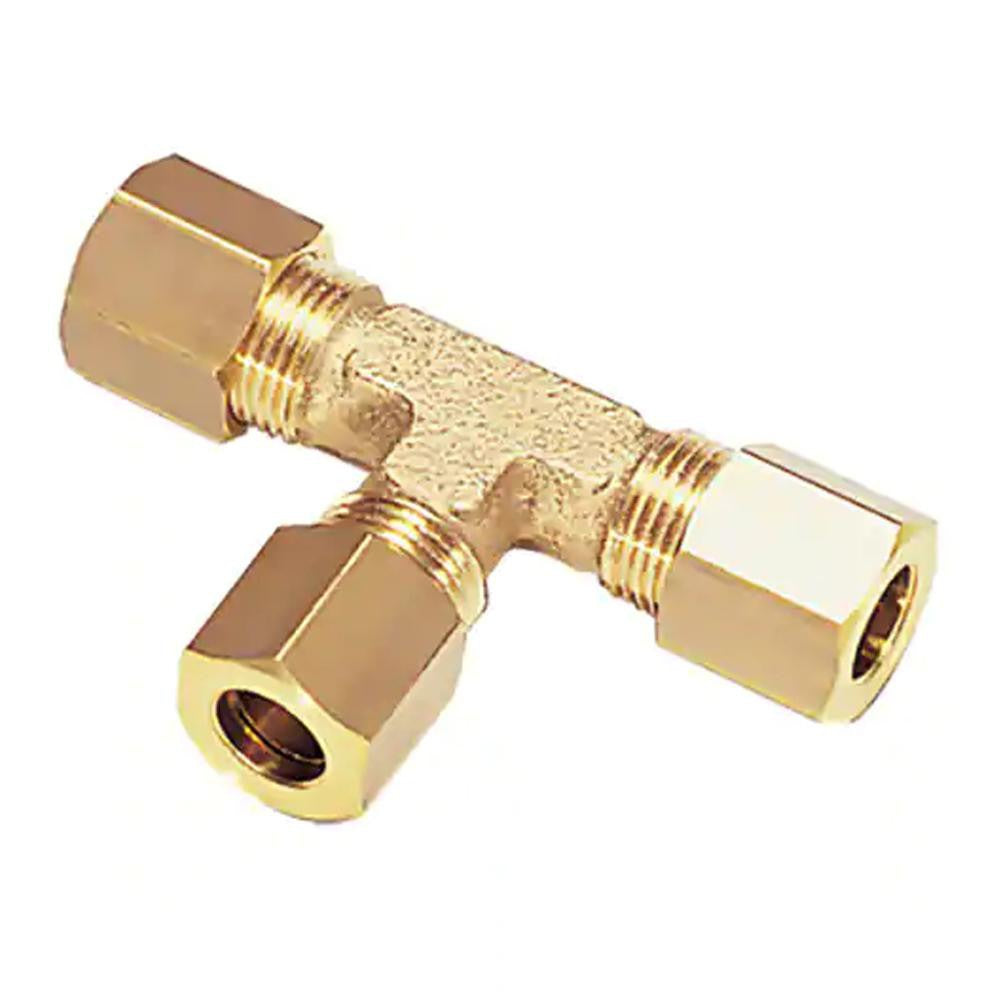

Legris 0104 10 00 Compression Tube Union Tee Brass

Product Description

The LEGRIS 0104 10 00 is a brass compression tube union fitting in a tee configuration, connecting three compression-end tube lines at a single junction point. Designed for 10mm outside diameter tubing, this fitting handles working pressures up to 330 psi and operates across a temperature range of -40 degrees F to 210 degrees F. The all-brass construction provides corrosion resistance suited to pneumatic and fluid distribution systems. Licensed tradespeople and industrial maintenance technicians install this fitting in compressed air lines, pneumatic control circuits, and instrumentation plumbing where a reliable three-way compression connection is required.

This fitting is suited for industrial and commercial pneumatic or fluid systems using 10mm OD tubing. Its compression-style end connections on all three ports allow tool-assisted installation without soldering or adhesives, making it appropriate for both new installations and field repairs on process lines, control panels, and instrumentation manifolds. The ATEX certification extends its use to potentially explosive atmospheres, and compliance with CNOMO standard E07.21.115N supports automotive and industrial assembly applications.

Key Features

• Tee configuration with compression connections on all three ports
• Rated for 10mm outside diameter tubing
• Maximum working pressure of 330 psi
• Operating temperature range of -40 degrees F to 210 degrees F
• Brass construction for corrosion resistance and durability
• ATEX certified for use in potentially explosive atmospheres
• Compliant with CNOMO E07.21.115N, PED, Prop 65, REACH, and RoHS standards

Compatibility

Designed for use with 10mm outside diameter compression tubing in pneumatic, fluid distribution, and instrumentation systems meeting ATEX and CNOMO E07.21.115N requirements.

Installation Notes

Installation should be performed by a qualified pipefitter, pneumatic technician, or instrumentation mechanic. Depressurize and isolate the line completely before disassembling or installing any compression fitting. Use the appropriate tube insertion depth and verify the tube is fully seated before tightening the compression nut. Follow applicable standards such as OSHA 29 CFR 1910.147 lockout/tagout procedures when working on pressurized systems.
