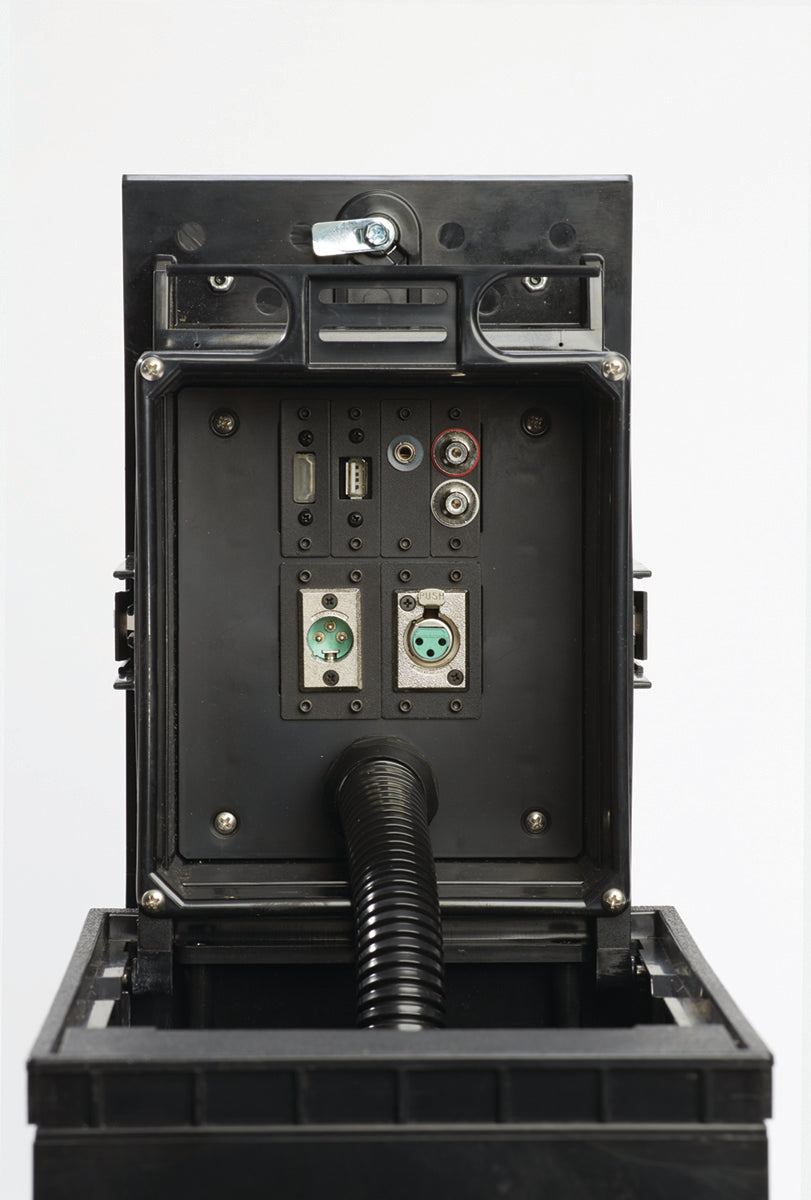

Legrand XB814CLVBK Exterior BX Cvr Assy Low Voltage BK

Product Description

The Legrand XB814CLVBK exterior low voltage cover assembly accepts up to twelve communication ports and eight Legrand AVIP devices. It is suitable for outdoor applications and designed to keep connections dry. The cover must be closed while in use. Only use cables rated for outdoor conditions with this assembly. The maximum connector length allowed at the end of the cable is two inches.

• Accepts twelve data ports or eight Legrand AVIP devices
• Outdoor rated design
• Enclosure maintains dry connections even when submerged

Product Highlights

This assembly is ideal for outdoor installations requiring multiple connections in wet environments.

Product Information

Standard Information

• Catalog Number: XB814CLVBK
• Manufacturer: Legrand-Wiremold

Technical Specifications

• Type: Exterior Non-Metallic
• NEMA Rating: NEMA 4X/IP65
• Length: 14 inches
• Width: 8 inches
• Height: 7 inches
• Application: Outdoor open spaces such as grass, concrete, and pavers
• Cable Entry Size: 3/4 to 1-1/4 inches knockouts
• Includes: Cover flange, cover body, textured surface plate, egress door, handle, mounting plate, tamper-resistant key, lock
• UPC: 786776187311
