Product Description

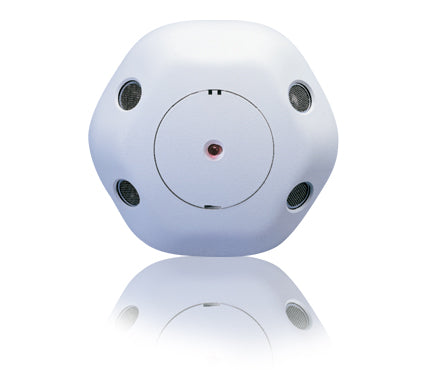

The Legrand WT-2200 is a ceiling mount occupancy sensor designed to improve energy efficiency in indoor spaces. This model operates on twenty-four volts direct current and features ultrasonic technology for occupancy detection.
- Coverage area up to two thousand two hundred square feet
- Automatic on and off control capabilities
- Adjustable time delay from fifteen seconds to thirty minutes
Product Highlights
Ideal for commercial spaces, this sensor is suited for open offices, warehouses, and hallways.
Product Information
Standard Information
-
Manufacturer: Legrand
-
MPN: WT-2200
Technical Specifications
-
Amperage Rating: 40 mA
-
Application: Commercial, Indoor, Open Office, Warehouse, Hallway
-
Color: White
-
Connection Type: Flying Lead
-
Control Output: Automatic On/Automatic Off
-
Coverage: 2200 sq-ft
-
Dimensions: 4.8 in Dia x 1.5 in D
-
Lamp Type: LED
-
Material: Plastic
-
Mounting Type: Ceiling
-
Response Frequency: 25 kHz
-
Sensor Type: Ultrasonic
-
Series: WT Series
-
Standards/Approvals: RoHS Compliant, cUL Listed, UL 244A, UL 508
-
Temperature Rating: 35 deg C
-
Time Delay: 15 s to 30 min
-
Viewing Angle: 360 deg
-
Voltage Rating: 24 VDC
