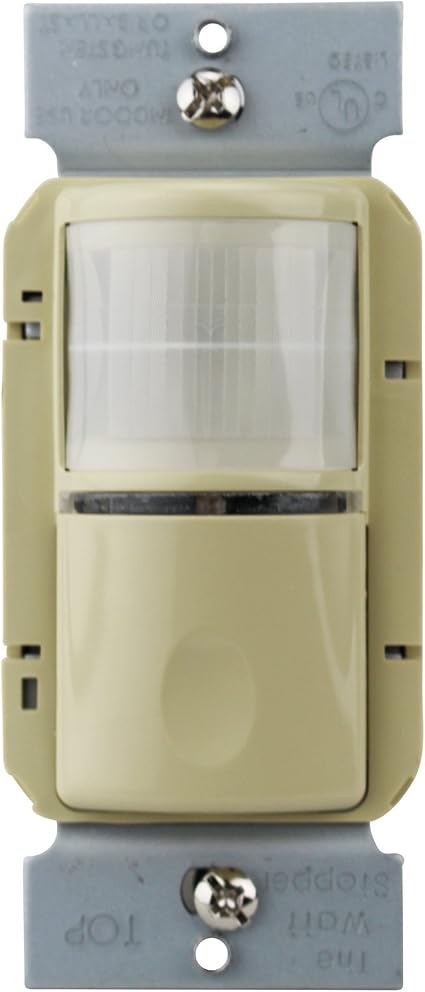

Legrand WS-250-I Passive Infrared Wall Switch Sensor 120/277 VAC (180°)

Product Description

Legrand WS-250-I is a passive infrared (PIR) wall switch sensor designed for indoor wall mounting that controls lighting loads on 120/277 VAC circuits. It provides relay-type switching with 6-inch flying lead terminals, adjustable time delay from 30 seconds to 30 minutes, and an adjustable light level from 10 to 200 foot-candela. The sensor offers a 180° field of view with coverage up to 35 ft x 30 ft for major motion and supports electronic ballasts.

• Operates on 120/277 VAC, 60 Hz with 6-inch flying lead hardwired connection
• Load ratings: 0–800 W at 120 VAC (ballast/tungsten), 0–1200 W at 277 VAC (ballast); 1/6 HP motor at 120 VAC
• 180° field of view; coverage up to 35 ft x 30 ft (major motion); time delay 30 s to 30 min; light level 10–200 fc

Product Highlights

Indoor PIR wall switch sensor, 120/277 VAC operation, 180° coverage, adjustable time delay and light level, high load ratings for ballasts and tungsten

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: WS-250-I

Technical Specifications

• Brand: Legrand
• Manufacturer: Legrand-Pass & Seymour
• Manufacturer Part Number: WS-250-I
• Model Number: WS-250-I
• Sensor Type: Passive infrared (PIR)
• Input Voltage: 120/277 VAC
• Frequency: 60 Hz
• Power Source: Hardwired (6-inch flying lead)
• Load Rating: 0–800 W at 120 VAC (ballast/tungsten); 0–1200 W at 277 VAC (ballast); 1/6 HP at 120 VAC (motor)
• Field of View: 180 degrees
• Coverage: Up to 35 ft x 30 ft (major motion); 20 ft x 15 ft (minor motion)
• Time Delay: Adjustable, 30 seconds to 30 minutes
• Light Level Sensitivity: Adjustable, 10 to 200 foot-candela
• Mounting Type: Wall mount
• Wiring: 6-inch flying lead terminals (hardwired)
• Dimensions: 2.6 x 1.7 x 1.55 inches
• Weight: 0.3 Pounds
• Compatible Devices: Electronic ballasts
• Certifications: UL and CUL approvals
• Unit Count: 1
