Legrand-Wiremold V5785 Combination Connector; 2 1/2 In

Product Description

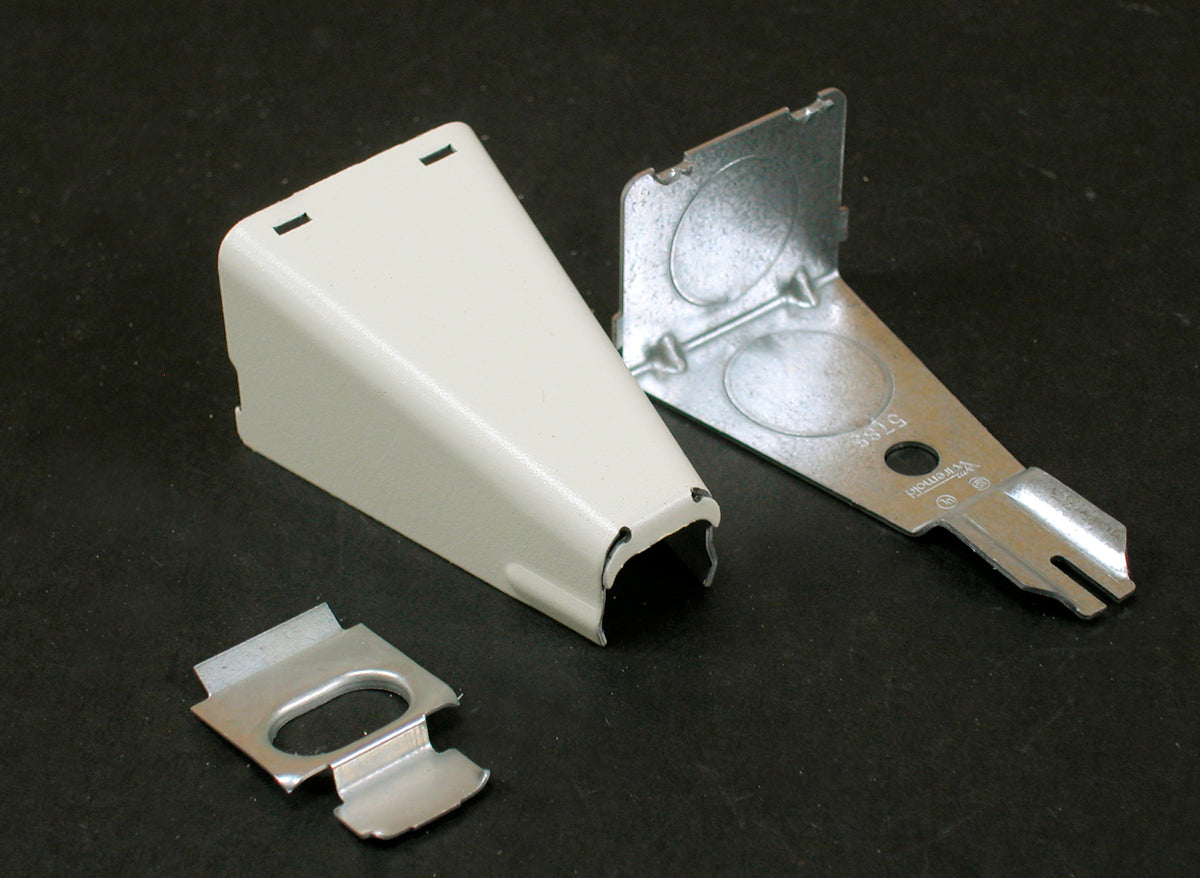

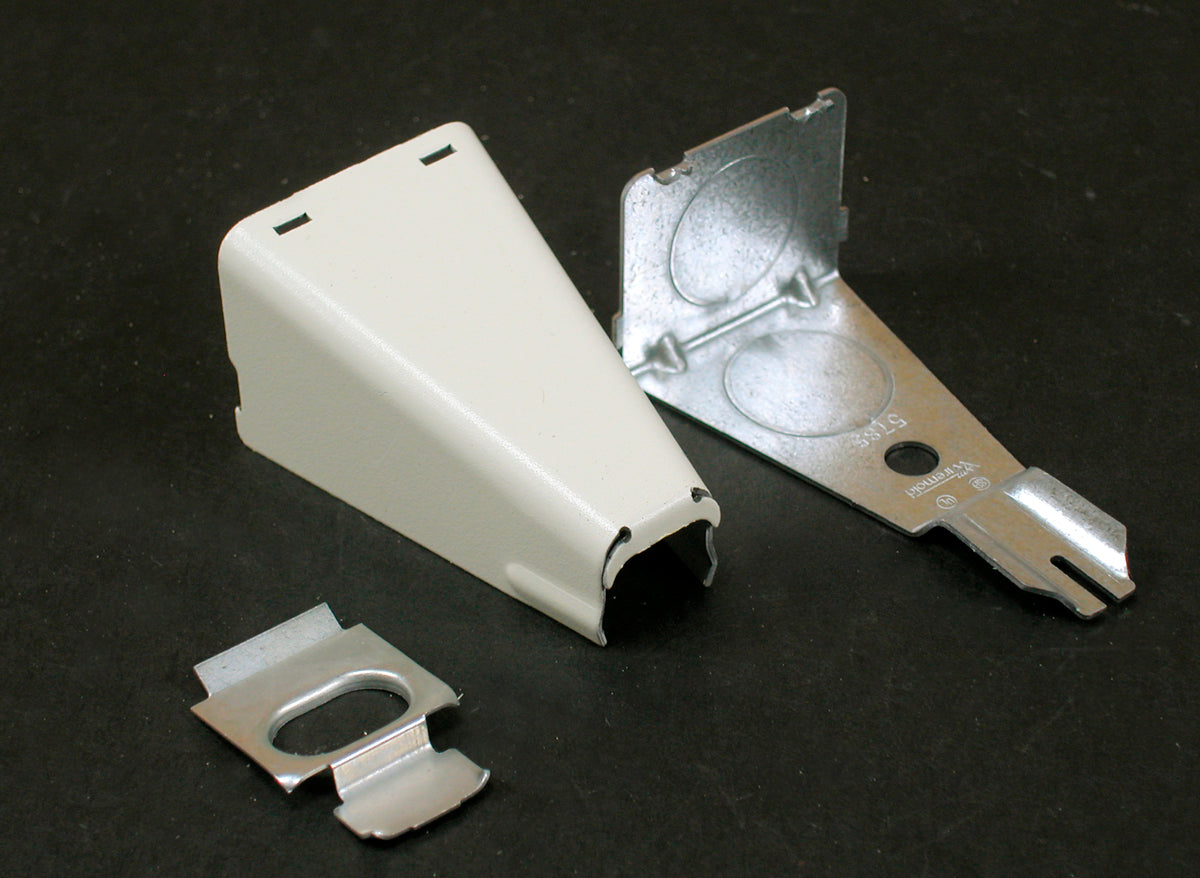

The Legrand-Wiremold V5785 is a combination connector designed to connect raceway to surface-mounted outlet boxes. This connector is suitable for use with 3 1/4 inch or 4 inch outlet boxes, featuring 1/2 inch trade size conduit knockouts. The design includes two knockouts, one at the end and one at the bottom of the base. A spring steel bushing is included for secure connections while eliminating the need for additional hardware. This connector is compatible with the 700 Series Raceway and allows for easy installation.

• Connects raceway to outlet boxes directly.
• Spring steel bushing included for easy installation.
• Two knockouts available for flexible installation options.

Product Highlights

The Legrand-Wiremold V5785 combination connector is ideal for commercial, office, and residential applications.

Product Information

Standard Information

• Manufacturer: Legrand-Wiremold
• Country of Origin: United States

Technical Specifications

• Catalog Number: V5785
• UPC: 786776070637
• Application: Commercial, Office, and Residential Applications
• Color: Ivory/White
• Material: Steel
• Dimensions: 1-5/8 x 1-5/8 in OD x 2-7/16 in L x 1-3/8 in W x 1-5/16 in H
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cULus File No. E4376
• Suitable For Use With: 500 and 700 Series Raceway
• Type: 1-Channel
