Product Description

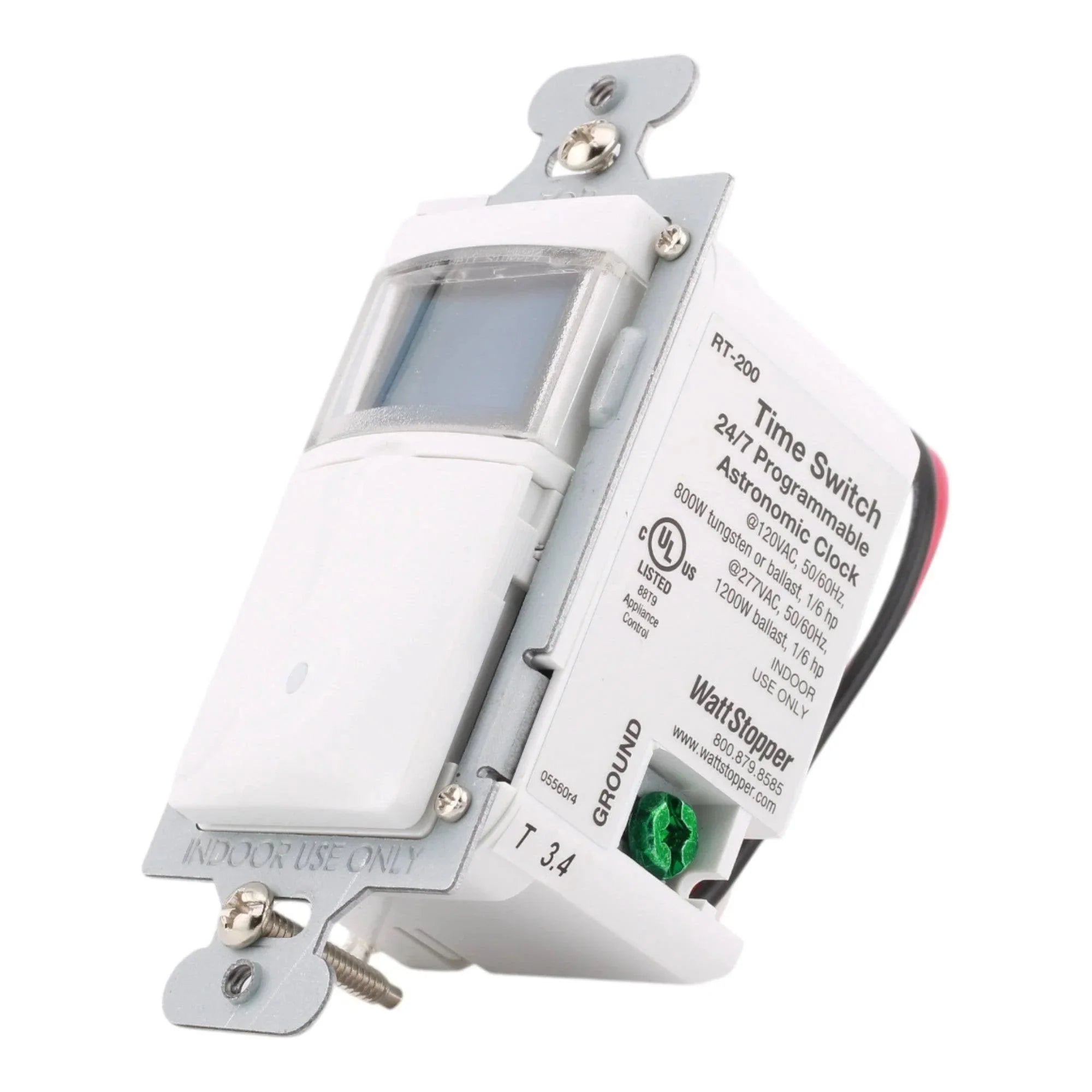

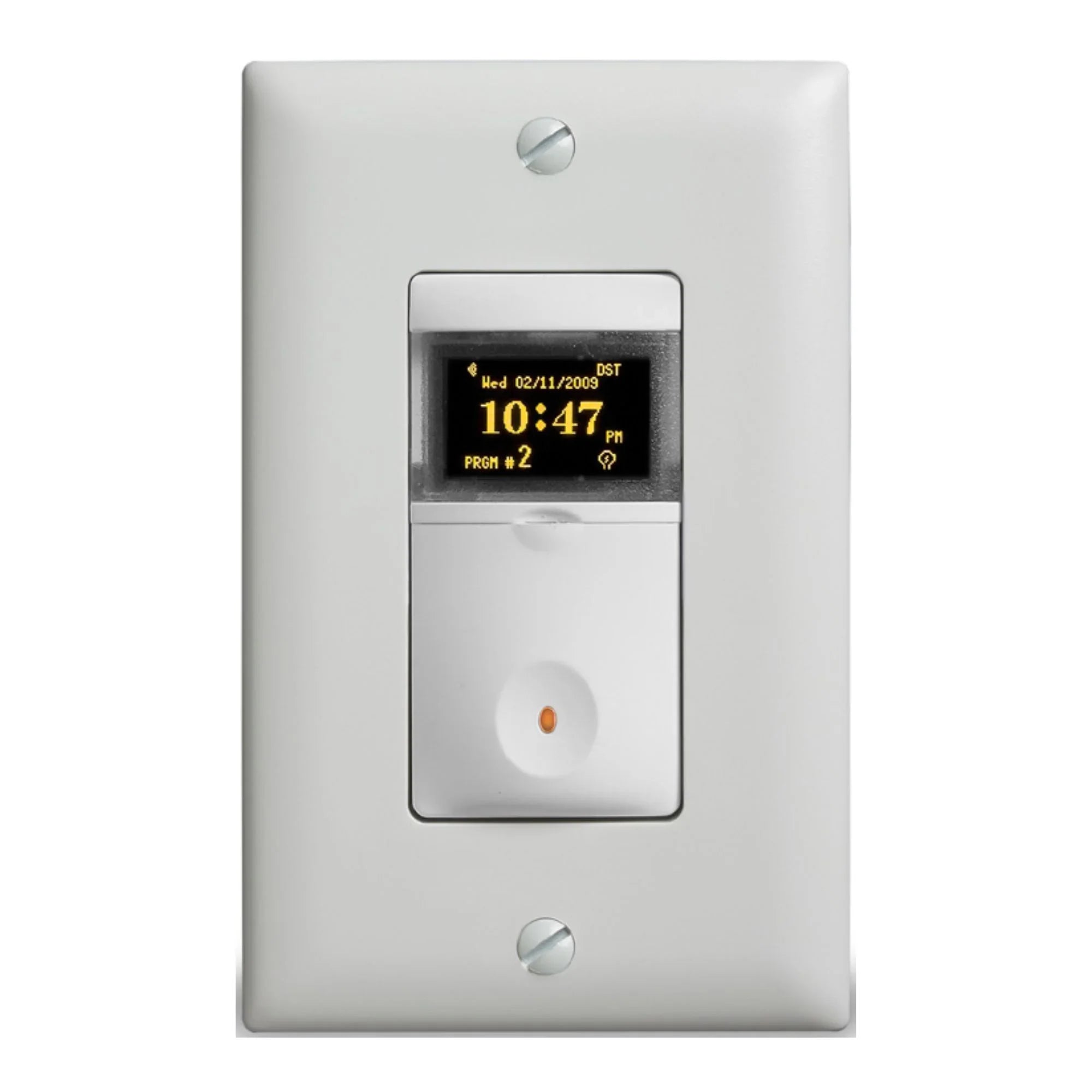

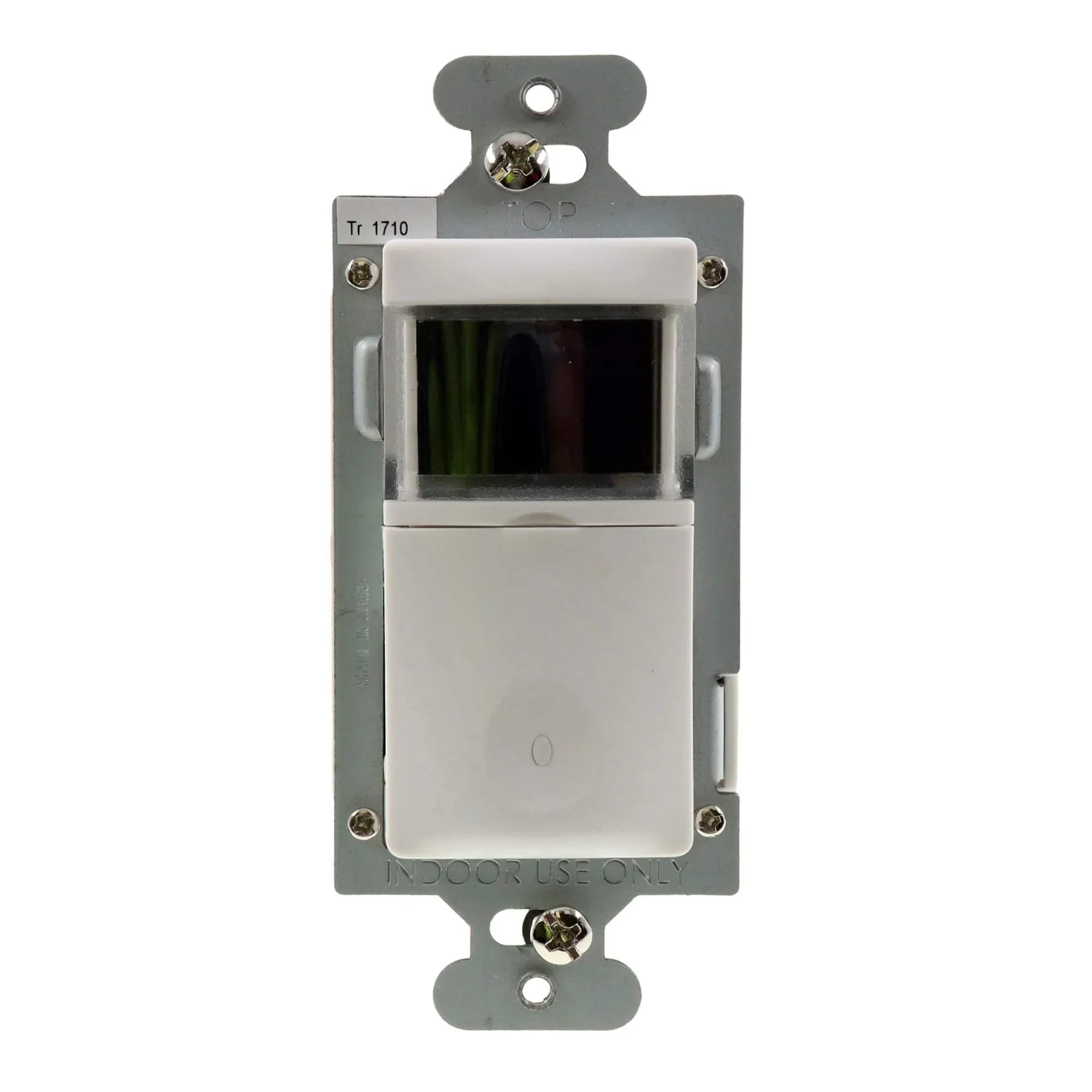

The LEGRAND-WATTSTOPPER RT-200-W is an astronomical time switch designed to automatically turn lighting or other loads on and off according to user programming. It features a 1-pole switch and is suitable for indoor or outdoor lighting applications. The timer operates at 120 VAC at 50/60 Hz with a power rating of 0 to 800 W for various load types and a 1/6 HP motor rating.
- Astronomical Time Switch
- 1-Pole Switch
- Suitable for Indoor/Outdoor Lighting
Product Highlights

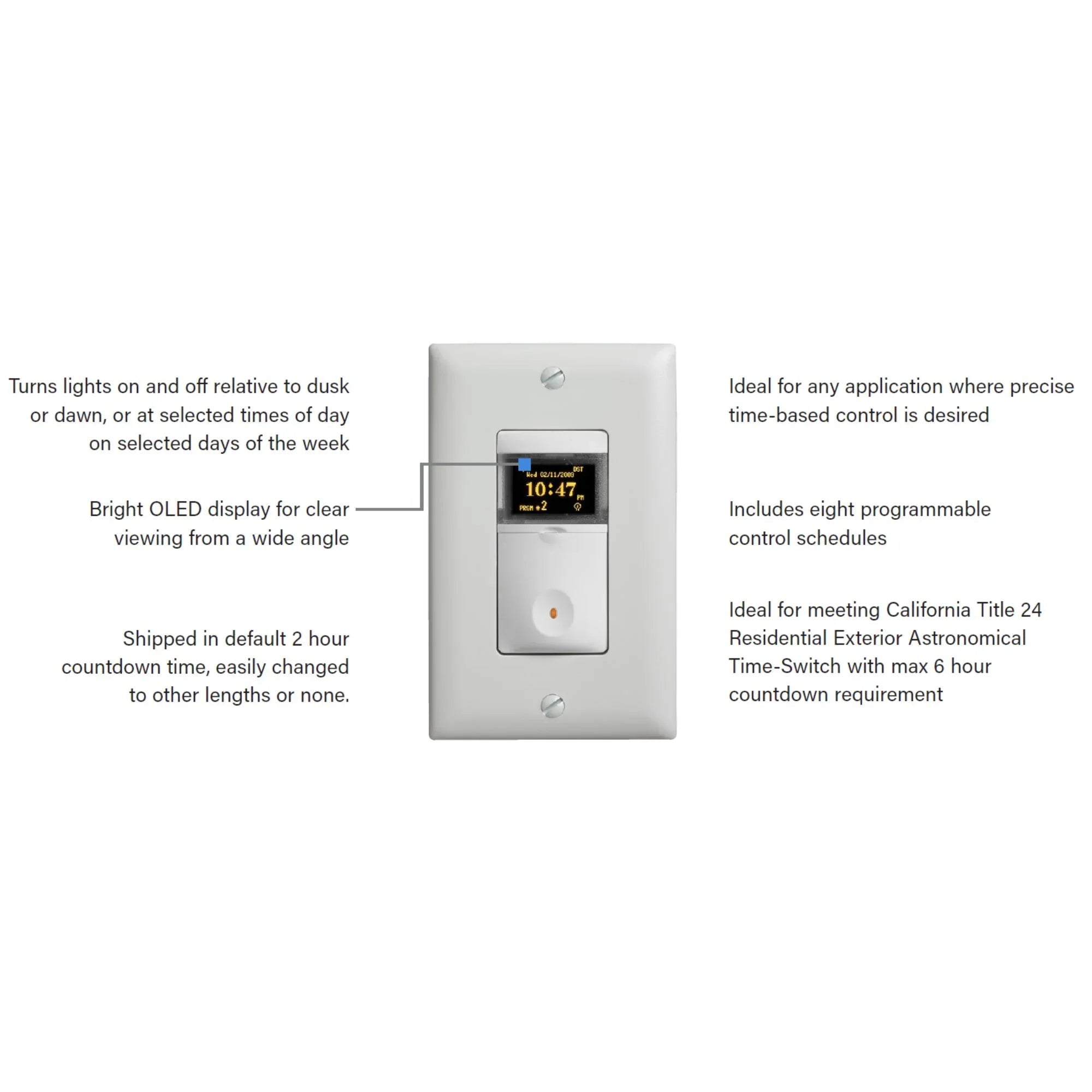

This timer switch replaces standard single-pole wall switches for energy savings and security, offering precise time-based control.
Product Information
Standard Information
-
Brand: LEGRAND-WATTSTOPPER
-
Manufacturer Part Number: RT-200-W
-
Country of Origin: China
Technical Specifications
-
Type: Astronomic
-
Switch Type: Push
-
Voltage Rating: 120 VAC at 50/60 Hz
-
Power Rating: 0 to 800 W (Incandescent/LED/Fluorescent/Compact Fluorescent/MLV/ELV), 1/6 HP (Motor)
-
Operating Temperature: 32 to 122 Deg F
-
Finish: White
-
Application: Indoor/Outdoor Lighting
-
Approval: UL, CUL
-
Material: Plastic
-
Application Sector: Commercial
-
Product Line: Wattstopper
-
Country Of Origin: China
-
Wall Plate Included: No
-
Installation Location: Wall Box
-
Standard: UL, cUL
-
RoHS Compliant: Yes
-
Amperage: 4.3 A
-
On Function: Selectable Auto/Manual
-
Requires Neutral Wire: Yes
-
Wire Connection Type: Flying Leads
-
Connection Type: Wired
-
Frequency Rating: 50/60 Hz
-
Load Rating: 1200 W @ 277 VAC, 800 W @ 120 VAC
-
Number of Buttons: 1
-
Number of Poles: Single Pole
-
Timer Type: Astronomical
-
Timer Duration: 1-6 Hours, 5-30 Minutes
-
Horsepower Rating: 1/6 HP @ 120 VAC
-
Timing Range: 24-Hour Programmable
-
Voltage: 120 VAC, 277 VAC
-
Wattage Rating: 1200.0W
-
Function Type: Single Pole
-
Mounting Type: In-Wall mount
-
Brand: WattStopper
-
MPN: RT200W
-
Number of Switches: 1
-
Suitable For: Wall
-
Current Type: AC
-
Control Style: Push Button, Switch
-
Number of Ports: 1
-
Features: Wall Plug-In, Timer
-
Terminal Type: Ground
