Legrand-WattStopper LP8S-8-115 LP8 Peanut Lighting Control Panel 115 Volt NEMA 1

Product Description

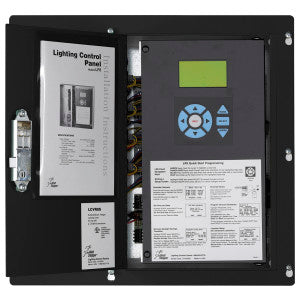

The Legrand-WattStopper LP8S-8-115 is a lighting control panel designed for effective zone-based management of interior and exterior lighting. This panel can control up to eight channels or zones and responds to control signals from the system clock or other signaling devices to operate lighting systems efficiently. The LP8 Panels are shipped pre-assembled and come in compact packages that are easy to install on surfaces or flush surfaces. Each panel includes relays, a system clock, panel intelligence, a power supply, and cover. It features a NEMA 1-rated enclosure, making it suitable for various environments.

• Controls up to eight lighting zones
• Pre-assembled for quick installation
• NEMA 1 enclosure for indoor use

Product Highlights

This panel is ideal for tasks that require reliable lighting control in small applications, providing simple and effective operation.

Product Information

Standard Information

• Brand: Legrand-WattStopper
• Manufacturer: Legrand-WattStopper

Technical Specifications

• Catalog Number: LP8S-8-115
• Application: Lighting Panel for switching and scheduling
• Enclosure: NEMA 1
• Cable Size: 10 - 14 AWG
• Frequency Rating: 50/60 Hz
• Mounting: Wall
• Size: 16.5 inches wide x 15 inches high x 4.5 inches deep
• Operating Temperature: 0 - 90 Degrees C
• Country of Origin: United States
