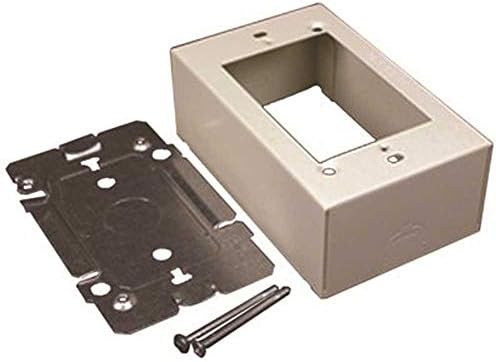

Legrand V2448 raceway 1-gang switch and receptacle device box 600 volt 4-5/8 x 2-7/8 x 1-3/4 inches steel

Product Description

The LEGRAND V2448 is a steel, one-gang device box designed for electrical and communication applications, supporting up to 600 Volt systems. Measuring 4-5/8 x 2-7/8 x 1-3/4 inches, it features a cover with twistouts for 2400, 500, and 700 Series Raceways. The base includes a knockout for extending from existing single-gang flush wall boxes and 1/2-inch trade size KOs, accepting industry-standard faceplates.

• NAFTA Compliant
• UL Listed
• RoHS Compliant

Product Highlights

Steel 1-gang device box compatible with 2400, 500, and 700 Series Raceways, accepting industry-standard faceplates.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: V2448
• Country of Origin: United States

Technical Specifications

• Type: Raceway
• Depth: 1-3/4 Inch
• Width: 2.875 in
• Length: 4-5/8 Inch
• Voltage: 600 Volt
• Material: Steel
• Sub Brand: Wiremold
• Applications: Commercial, Residential
• Certifications: NAFTA, ROHS, UL, Canadian Safety Standards
• Component Type: Boxes
• Product Series: 2400
• Channels: 2
• Device Box Type: 1-Gang Switch and Receptacle
• Faceplate Compatibility: Industry standard and NEMA single-gang standard
• Gang: 1
• Raceway Series Compatibility: 2400, 500, 700
• Buy American Compliant: Y
