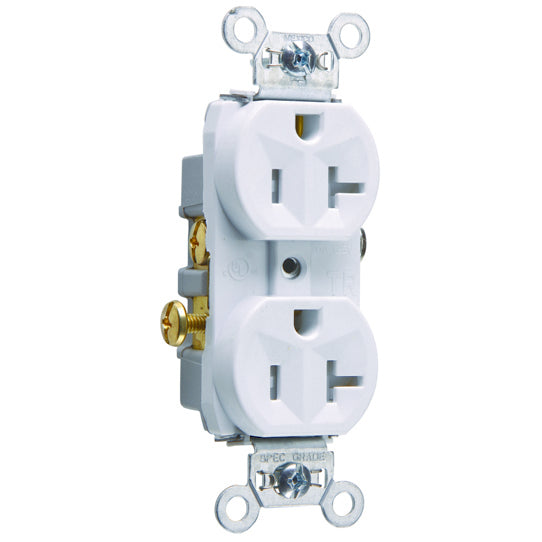

Legrand TR20-W 20A 125V Commercial Grade Tamper-Resistant Duplex Receptacle

Product Description

The LEGRAND TR20-W is a tamper-resistant commercial grade receptacle, 20A, 125V. This duplex receptacle features a dual mechanical shutter system to help prevent insertion of foreign objects. It has an auto-ground clip that assures positive ground and an easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.

• Dual mechanical shutter system to help prevent insertions of foreign objects.
• Auto-ground clip assures positive ground.
• Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.

Product Highlights

This tamper-resistant receptacle is ideal for commercial applications. It is side wire only and features backed-out tri-drive steel terminal screws.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: TR20-W
• Country of Origin: Mexico

Technical Specifications

• Color: White
• Finish: Matte
• Application: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: Tamper-Resistant
• Standard: UL 498
• UPC Number: 785007241655
• Product Depth US: 0.93 in
• Product Height US: 3.28 in
• Product Width US: 1.37 in
• cULus ListingNumber: E140596
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Side Only
• Wire Connection Type: Screw Terminals
• Frequency Rating: 60 Hz
• Indoor/Outdoor: Indoor
• Is Tamper-Resistant: Yes
• Mounting Type: Box
• NEMA Configuration Code: 5-20R
• Number of Poles: Double Pole
• Number of Wires: 3
• Operating Temperature: -40 -60 C
• Operating Temperature Max: 60 C
• Operating Temperature Min: -40 C
• Voltage: 125.0 V
• Wire Size: 14 - 10 AWG
• Catalog Number: TR20W
• Manufacturer: Legrand-Pass & Seymour
• Brand: Legrand-Pass & Seymour
• Made in USA: No
• Connection: Wire Ground
• Material: Thermoplastic
• Mounting: Wall
• NEMA Rating: 5
• Special Features: Side wire, easily accessed break off line contact
• UPC: 785007241655
• GTIN: 00785007241655
• Item Type: Tamper Resistant Straight blade receptacle
• Size: 3.3 in
• Voltage Rating: 125
• ECCN: EAR99
• UNSPSC: 39121406
• Ground: Grounding
• Rated Voltage: 125V
• Color Family: White
• Height: 3.28 in.
• Depth: 0.93 in.
• Width: 1.37 in.
• Amperage Rating: 20A
