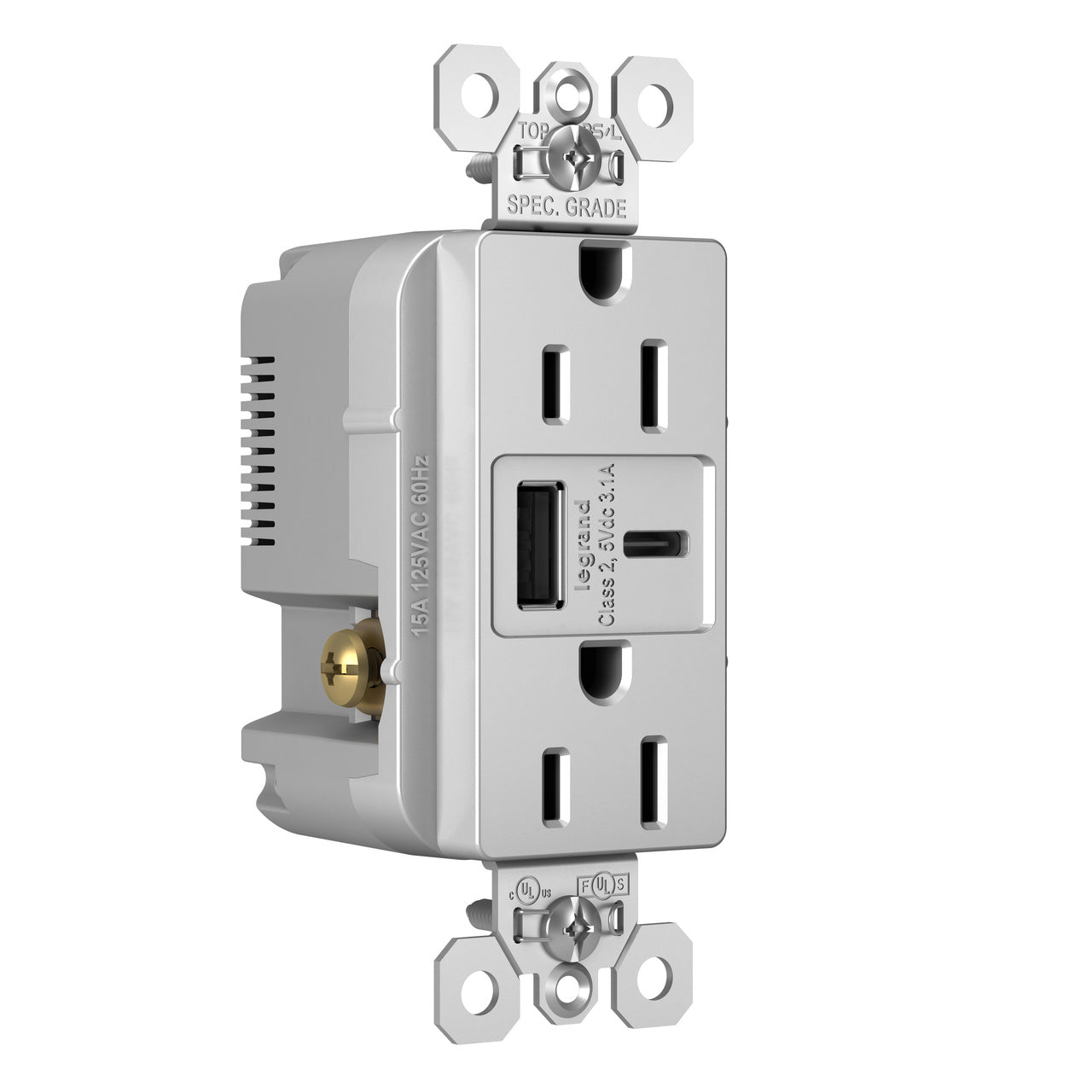

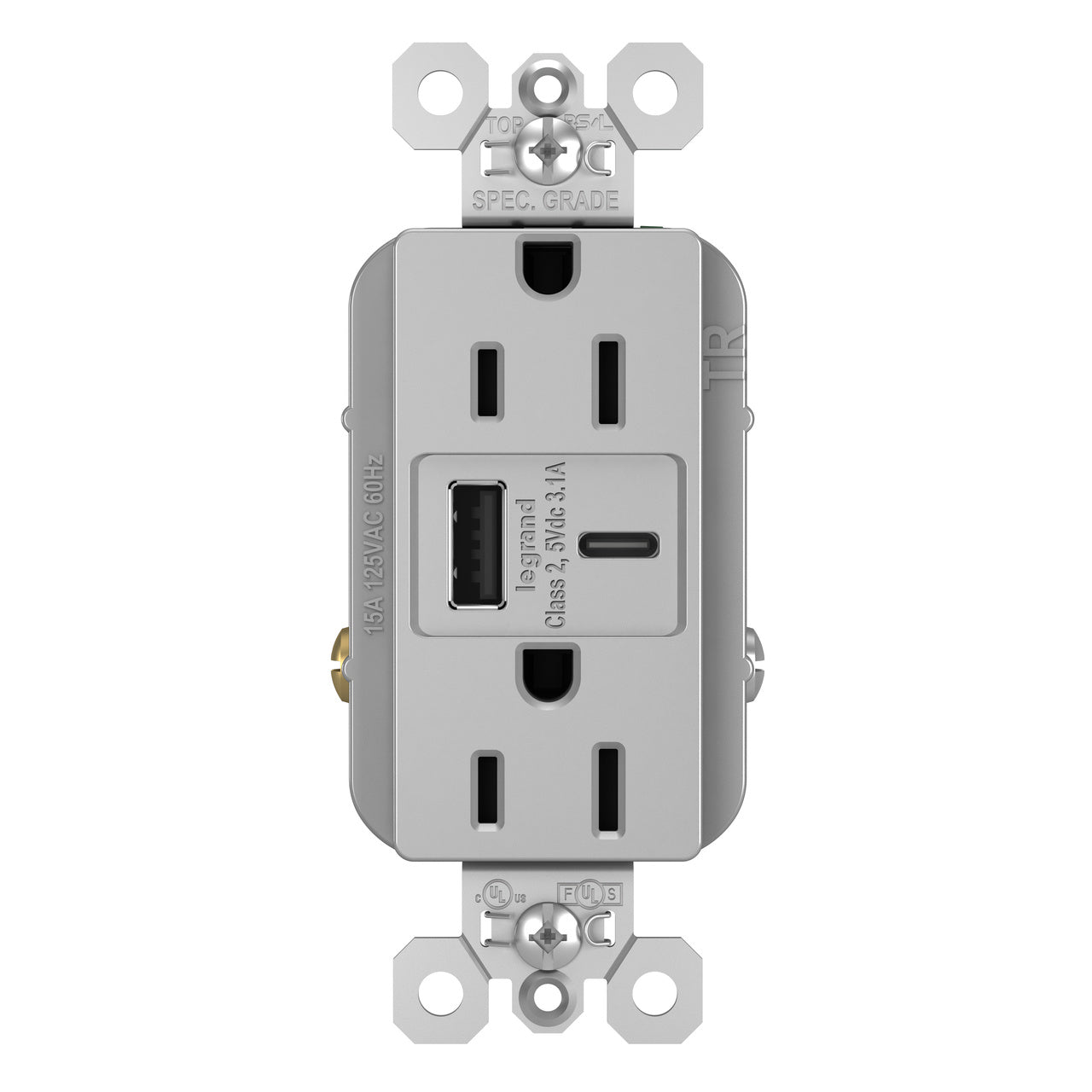

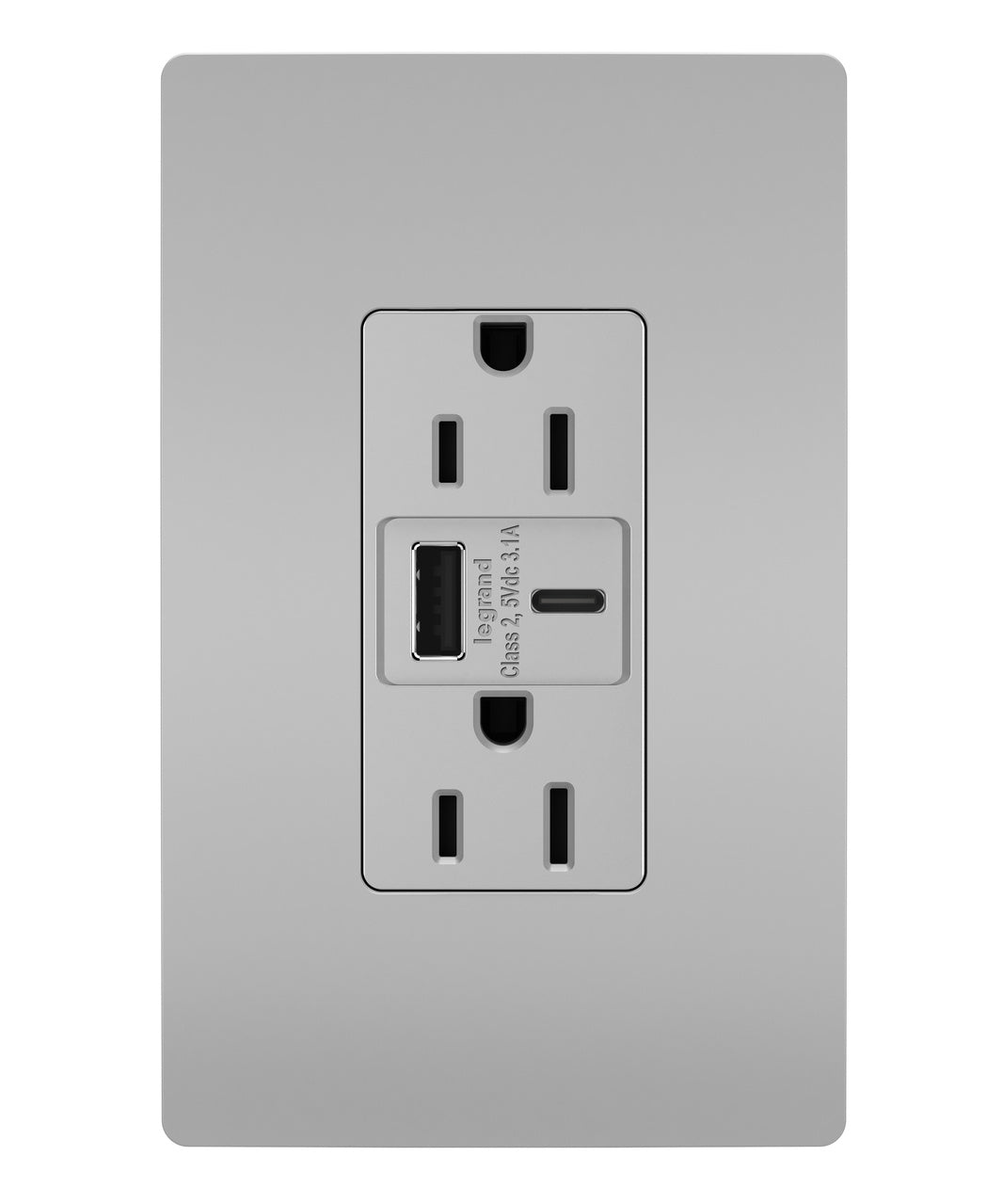

Legrand TR15USBACGRY 15A 125V Duplex Tamper-Resistant Receptacle with USB-A and USB-C (1 Pack)

Product Description

Legrand TR15USBACGRY is a combination tamper-resistant 15 A, 125 V duplex receptacle with two integrated USB charging ports (Type A and Type C) providing up to 3.1 A combined. The device includes tamper-resistant shutters that meet NEC requirements, SafeLock protection and an automatic self-test that runs every three seconds with an indicator on failure. It features screw-terminal side connections, tri-drive terminal screws and supports 14-10 AWG wiring for indoor commercial and residential use.

• Two USB ports (Type A and Type C) delivering 3.1 A combined (15 W) for device charging
• Tamper-resistant shutters meeting NEC tamper-resistant requirement; NEMA 5-15R duplex receptacle
• SafeLock protection with automatic self-test every three seconds and indicator light on failure; screw terminal side connections with tri-drive screws and 14-10 AWG capacity

Product Highlights

15 A, 125 V tamper-resistant duplex receptacle with two USB ports (3.1 A combined), SafeLock protection, automatic self-test, cULus listed

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: TR15USBACGRY
• Country of Origin: China

Technical Specifications

• Brand: Legrand
• Manufacturer: Pass & Seymour / Legrand
• Manufacturer Part Number: TR15USBACGRY
• MPN: TR15USBACGRY
• Product Line / Sub Brand: Pass & Seymour
• Electrical Rating: 15 A, 125 V
• Outlet Type: Duplex tamper-resistant with integrated USB charging
• USB Ports: USB-A and USB-C (2 ports)
• USB Output (Combined): 3.1 A (15 W)
• NEMA Configuration: 5-15R
• Number of Receptacles: 2
• Number of USBs: 2
• Wire Size: 14 - 10 AWG
• Wire Connection Type: Screw terminals (side only)
• Connection Location: Side only
• Construction: High-impact-resistant thermoplastic; tri-drive terminal screws
• Protection Features: Tamper-resistant shutters, SafeLock protection, automatic self-test every three seconds with indicator
• Certifications: cULus, UL Listed, Federal Spec Listed
• Applications: Commercial, multi-dwelling unit, residential (indoor)
• Dimensions (Height x Width x Depth): 3.28 in x 1.693 in x 1.425 in
• Country of Origin: China
• GTIN: 00785007181470
• UPC: 78500718147
• Pack Size: 1
