Legrand TR15USBAC 15A 125V Duplex Tamper-Resistant Receptacle with USB-A/USB-C 3.1A (Pack 1) TR15USBAC

Product Description

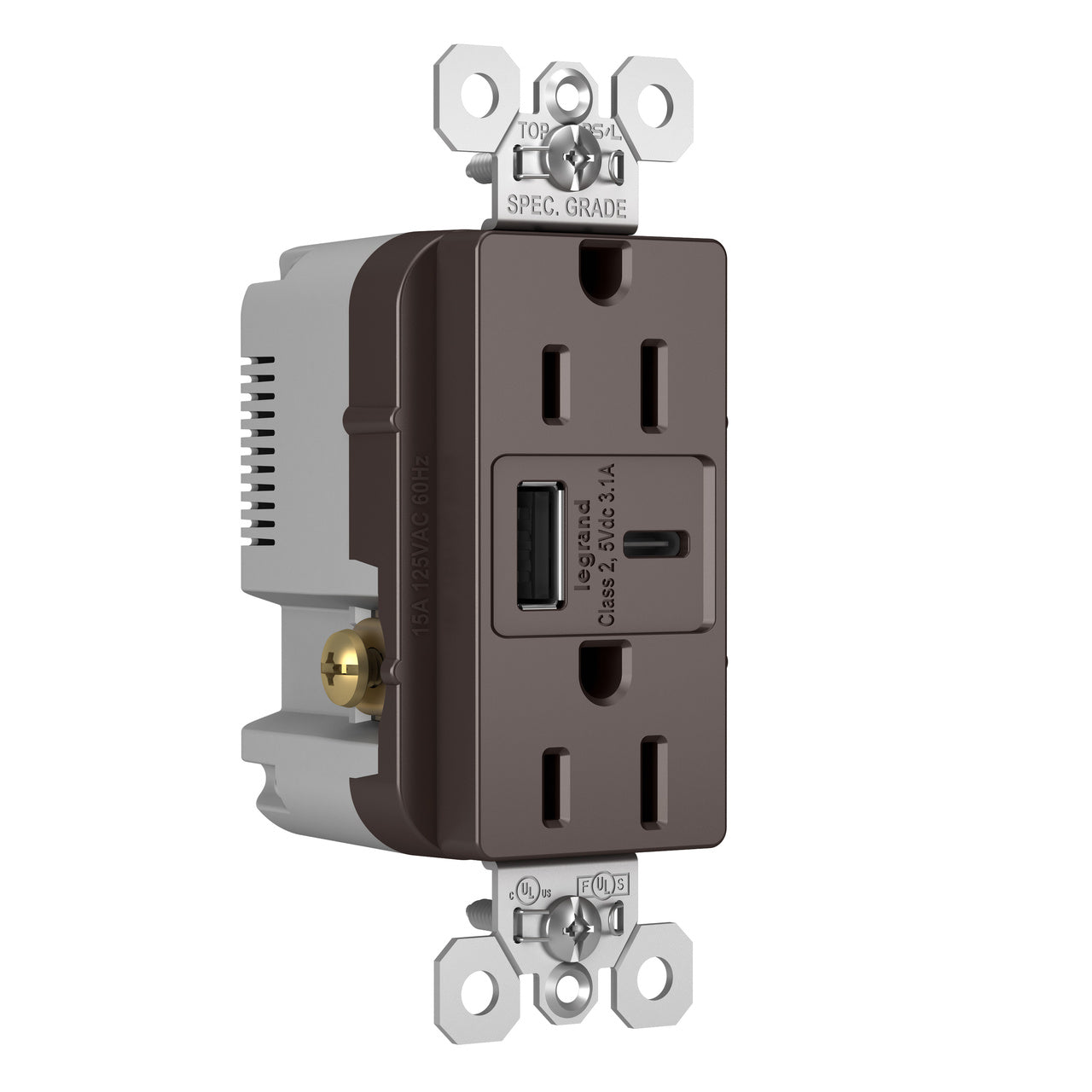

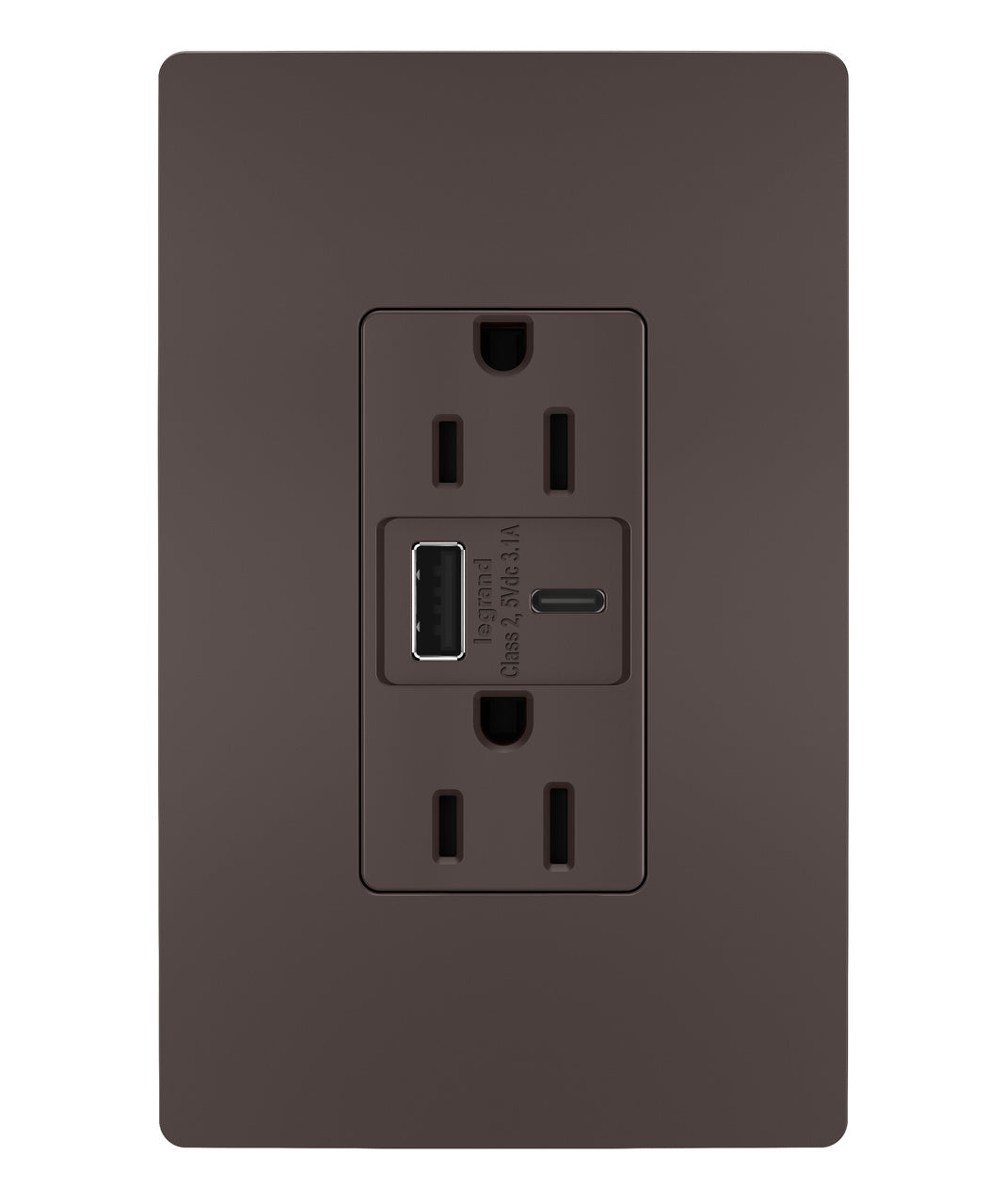

Legrand TR15USBAC is a combination tamper-resistant 15A, 125V duplex convenience receptacle with integrated USB-A and USB-C charging ports. The device provides two 3.1A USB charging ports, meets NEC tamper-resistant requirements with patented shutters, and includes automatic self-test functionality with an indicator and SafeLock protection that disconnects power if protection is lost. The unit uses high-impact thermoplastic construction and tri-drive terminal screws for indoor commercial and residential applications.

• Tamper-resistant duplex receptacle with patented shutters meeting NEC requirements
• Two USB charging ports (Type A and Type C) rated 3.1 A, integrated with 15A/125V outlet
• Automatic self-test every three seconds with indicator and SafeLock protection; high-impact thermoplastic construction with tri-drive terminal screws

Product Highlights

15A 125V duplex receptacle with two USB ports (Type A/C) 3.1A, tamper-resistant shutters, automatic self-test and SafeLock protection

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: TR15USBAC
• Country of Origin: China

Technical Specifications

• Brand: Legrand
• Manufacturer: Pass & Seymour / Legrand
• MPN: TR15USBAC
• Catalog Number: TR15USBAC
• Product Type: Duplex tamper-resistant receptacle with USB charging
• Amperage: 15 A
• Voltage: 125 V
• USB Ports: 2 (Type A and Type C)
• USB Amperage: 3.1 A
• USB Wattage: 15 W
• Number of Receptacles: 2
• Outlet Type: Tamper-Resistant, USB-Charging
• NEMA Configuration Code: 5-15R
• Number of Gangs: 1
• Number of Poles: 2
• Number of Wires: 3
• Wire Size: 14 - 10 AWG

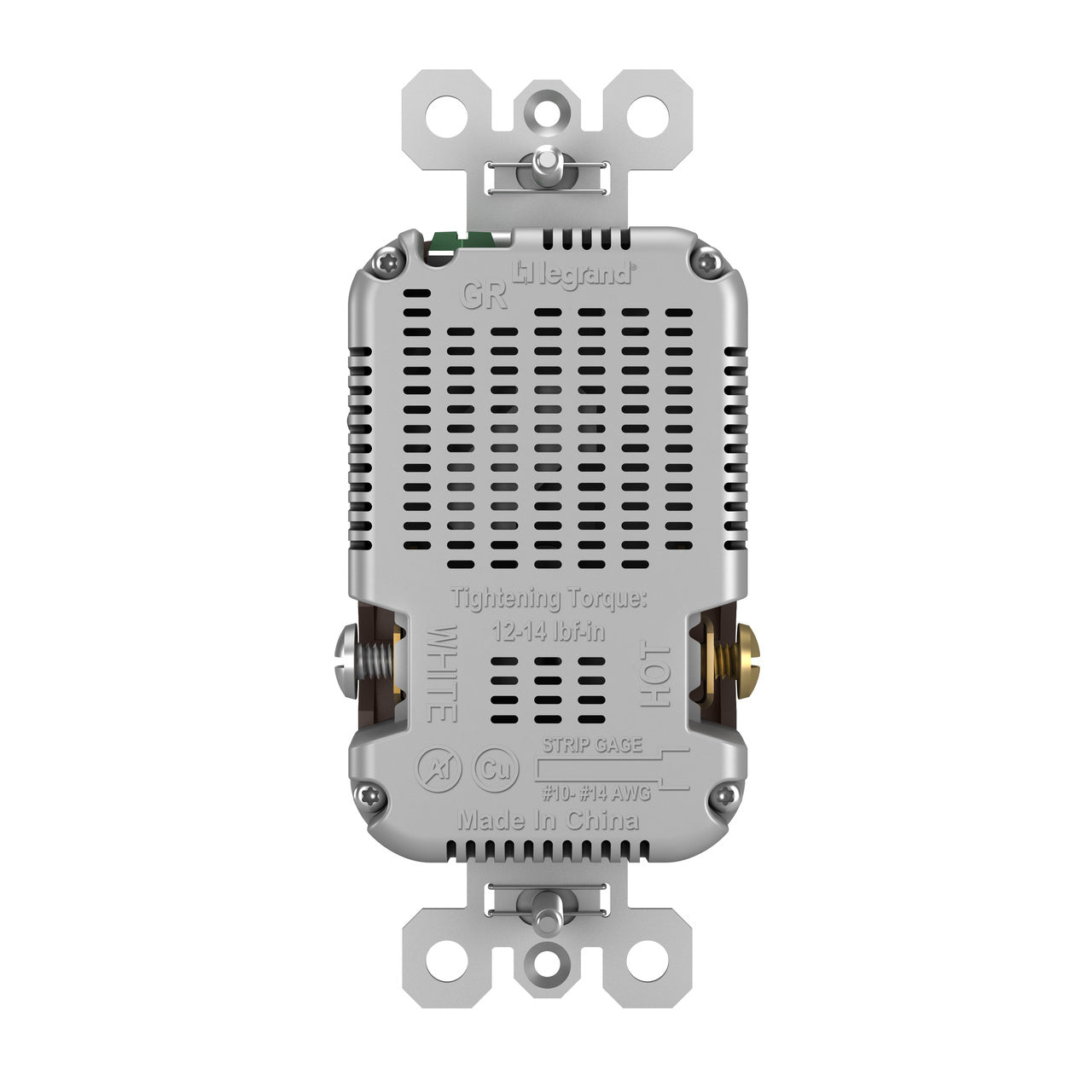

• Wire Connection Type: Screw terminals
• Connection Location: Side only
• Mounting Type: Duplex wall outlet
• Indoor/Outdoor: Indoor
• Applications: Commercial, Multi-Dwelling Unit, Residential
• Dimensions (H x W x D): 2.677 in x 1.693 in x 1.425 in
• Material/Construction: High-impact-resistant thermoplastic; tri-drive terminal screws
• Safety Features: Patented tamper-resistant shutters; automatic self-test every three seconds; SafeLock protection
• Certifications: cULus, UL Listed, FEDSPEC
• cULus Listing Number: E140596
• Country of Origin: China
• UPC: 785007181432
• GTIN: 00785007181432
• Sub Brand: Pass & Seymour
