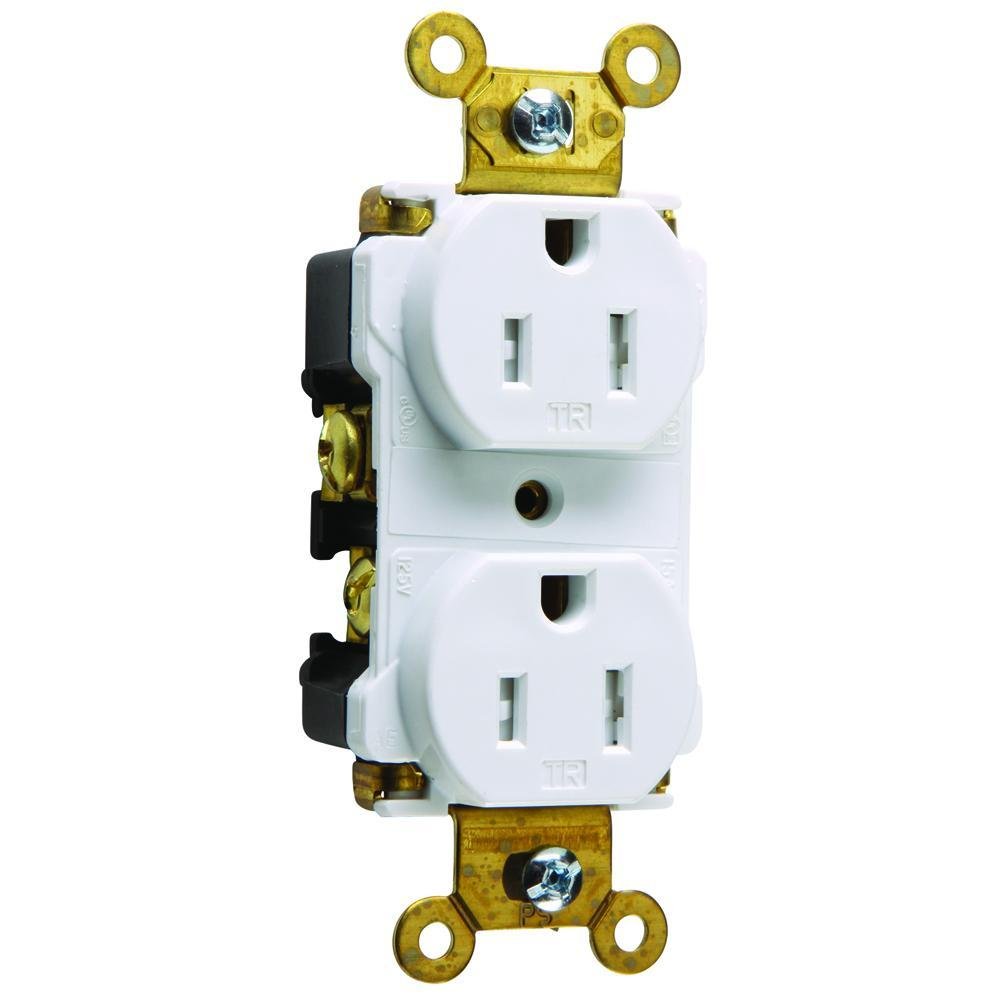

Legrand TR15-W Commercial Grade Tamper-Resistant Duplex Receptacle 15A 125V

Product Description

The LEGRAND TR15-W is a tamper-resistant commercial grade receptacle, 15A, 125V. It features a dual mechanical shutter system to help prevent insertion of foreign objects and an auto-ground clip that assures positive ground. This receptacle has an easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.

• Dual mechanical shutter system to help prevent insertions of foreign objects.
• Auto-ground clip assures positive ground.
• Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.

Product Highlights

Commercial grade, tamper-resistant duplex receptacle with side wire connection, auto-ground clip, and break-off line-contact connecting tab.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: TR15-W
• Country of Origin: Mexico

Technical Specifications

• Color: White
• Finish: Gloss
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: Tamper-Resistant
• Standard: cULus UL498, CSA C22.2 No. 42
• UPC Number: 785007241594
• Product Depth US: 0.93 in
• Product Height US: 3.28 in
• Product Width US: 1.37 in
• cULus ListingNumber: E140596
• cULus Listed: Yes
• Amperage: 15 A
• Connection Location: Side Only
• Wire Connection Type: Screw Terminals
• Dielectric Strength: Withstands 1500V minimum
• Indoor/Outdoor: Indoor
• Is Tamper-Resistant: Yes
• NEMA Configuration Code: 5-15R
• Number of Gangs: 1
• Number of Poles: Double Pole
• Voltage: 125.0 V
• Wire Size: 14 - 10 AWG
• NEMA: 5-15R
• Applications: Commercial
• Capacity: Duplex
• Conductor Size: 14-10 AWG
• Connection Type: Side Wire
• Grade: Commercial
• Style: Duplex
• TC Connection: Side wire
• Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
• GTiN: 00785007241594
• Product UPC: 78500724159
• UNSPSC: 39121406
• Temperature Rating: -40 to 50 degrees C
• Terminal Type: Side wire
• Type: Duplex Tamper-Resistant
• Rated Voltage: 125V
• Ground: Grounding
• Mounting Type: Surface
• Depth: 0.93 Inch
• Material: Nylon
