Product Description

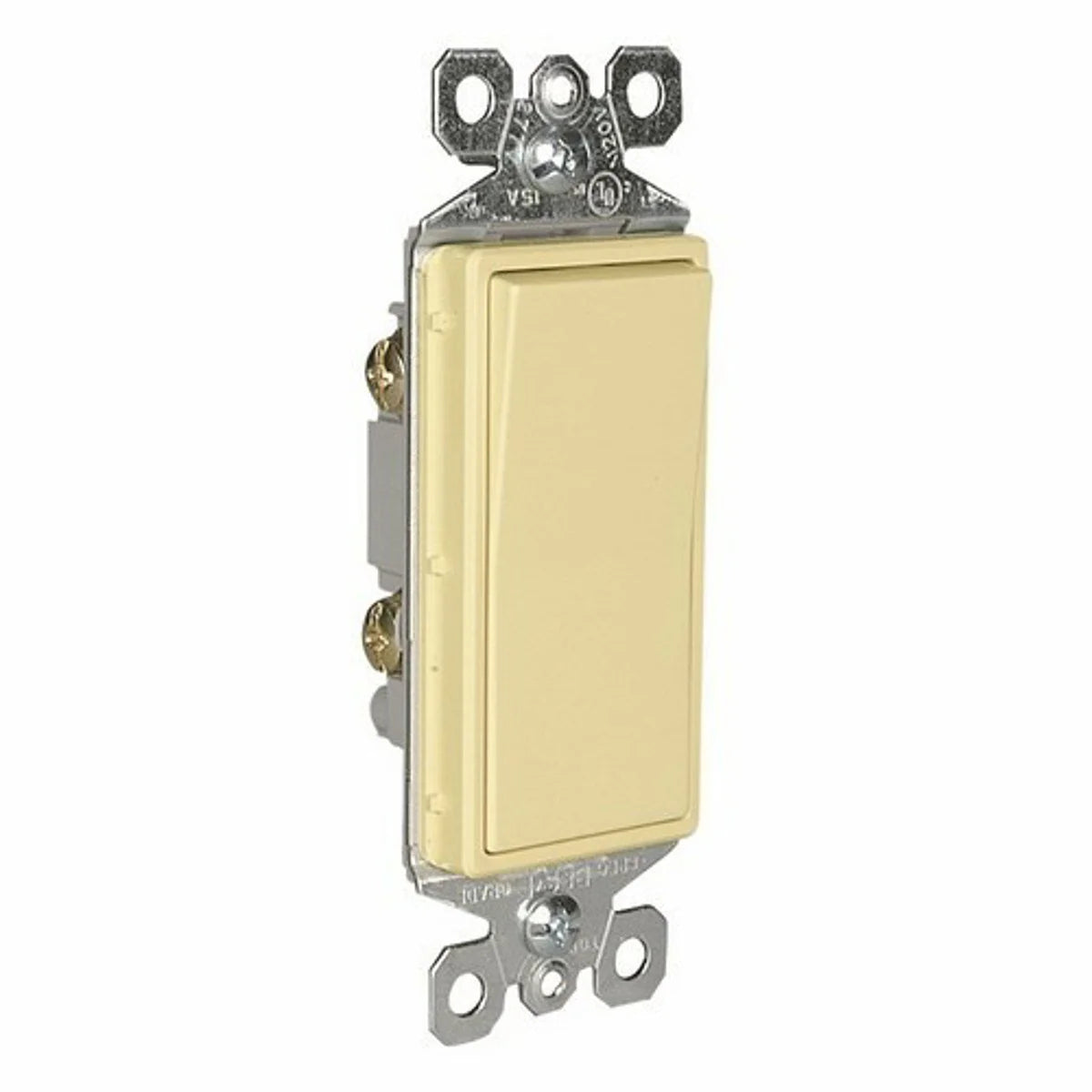

Legrand TM870I is a decorator switch designed for residential and commercial applications. It operates at 15 Amps and is compatible with voltages ranging from 120 to 277. The device features a paddle actuator for easy operation and is wall mounted.
- Rated for 15 Amps at 120/277 volts
- Paddle actuator for convenient on/off action
- Durable thermoplastic construction for long-term use
Product Highlights
This switch conforms to the National Electrical Code, making it suitable for various installation scenarios. Its thermoplastic material is high impact resistant, ensuring reliability and safety.
Product Information
Standard Information
-
Manufacturer: Legrand-Pass & Seymour
-
Catalog Number: TM870I
Technical Specifications
-
Application: Commercial and residential
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 15 A
-
Number of Poles: 1
-
Material: Thermoplastic
-
Insulation: Bare
-
Mounting: Wall
-
Dimensions: 4.19 inches H x 1.43 inches W x 1.27 inches D
-
Standards/Approvals: CSA C22.2 No. 111 Certified, UL 498/20
