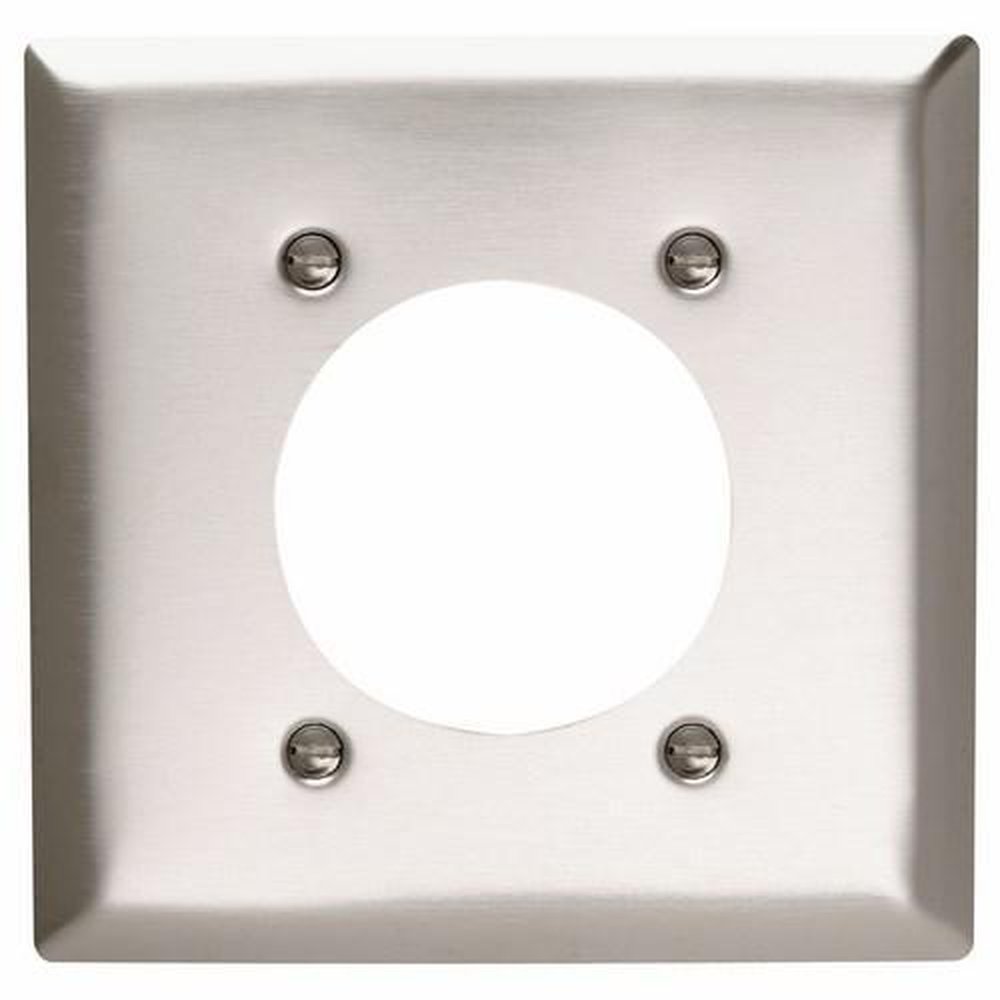

Legrand S703 Stainless Steel Wall Plate 2 Gang

Product Description

The LEGRAND S703 is a two-gang standard wall plate manufactured from 302 stainless steel for long-term durability in residential and light commercial electrical installations. The plate measures 7.8 inches wide by 7.8 inches high with a thickness of 0.28 inches, providing a low-profile, smooth finish that sits flush against standard electrical boxes. The duplex receptacle cutout measures 2.1563 inches in diameter by 2.375 inches high and is oriented vertically to accommodate standard outlet configurations. Electricians and finish tradespeople install this plate as the final cover on rough-in wiring work.

This wall plate is suited for vertical duplex receptacle installations in residential, commercial, and light industrial environments. The corrosion-resistant 302 stainless steel construction makes it a practical choice in areas with elevated humidity or where frequent cleaning is required, such as kitchens, utility rooms, and mechanical spaces. It mounts directly to a standard two-gang electrical box using conventional wall plate screws. The smooth surface finish is compatible with standard painting and cleaning practices without trapping contaminants.

Key Features

• 302 stainless steel construction provides corrosion resistance for demanding environments
• Two-gang configuration accommodates dual vertical duplex receptacle cutouts
• Smooth finish for clean, professional appearance on finished walls
• 0.28 inch plate thickness for low-profile flush mounting
• Standard wall-mount design installs directly over two-gang electrical boxes

Compatibility

Designed as an OEM-style replacement or new-installation cover for standard two-gang electrical boxes with vertically oriented duplex receptacle configurations.

Installation Notes

Installation is performed by licensed electricians or qualified finish trades in accordance with NEC requirements. Always shut off circuit power at the breaker panel and verify the circuit is de-energized before removing or installing wall plates. Align the plate over the two-gang box and secure with the appropriate screws, taking care not to overtighten and crack or bow the plate. Inspect the underlying box and wiring for code compliance before completing the installation.

Technical Specifications

• Material: 302 Stainless Steel
• Finish: Smooth
• Gang Configuration: 2 Gang
• Plate Width: 7.8 inches
• Plate Height: 7.8 inches
• Plate Thickness: 0.28 inches
• Receptacle Cutout Diameter: 2.1563 inches
• Receptacle Cutout Height: 2.375 inches
• Cutout Orientation: Vertical
• Mounting Type: Wall Mounting

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: S703
