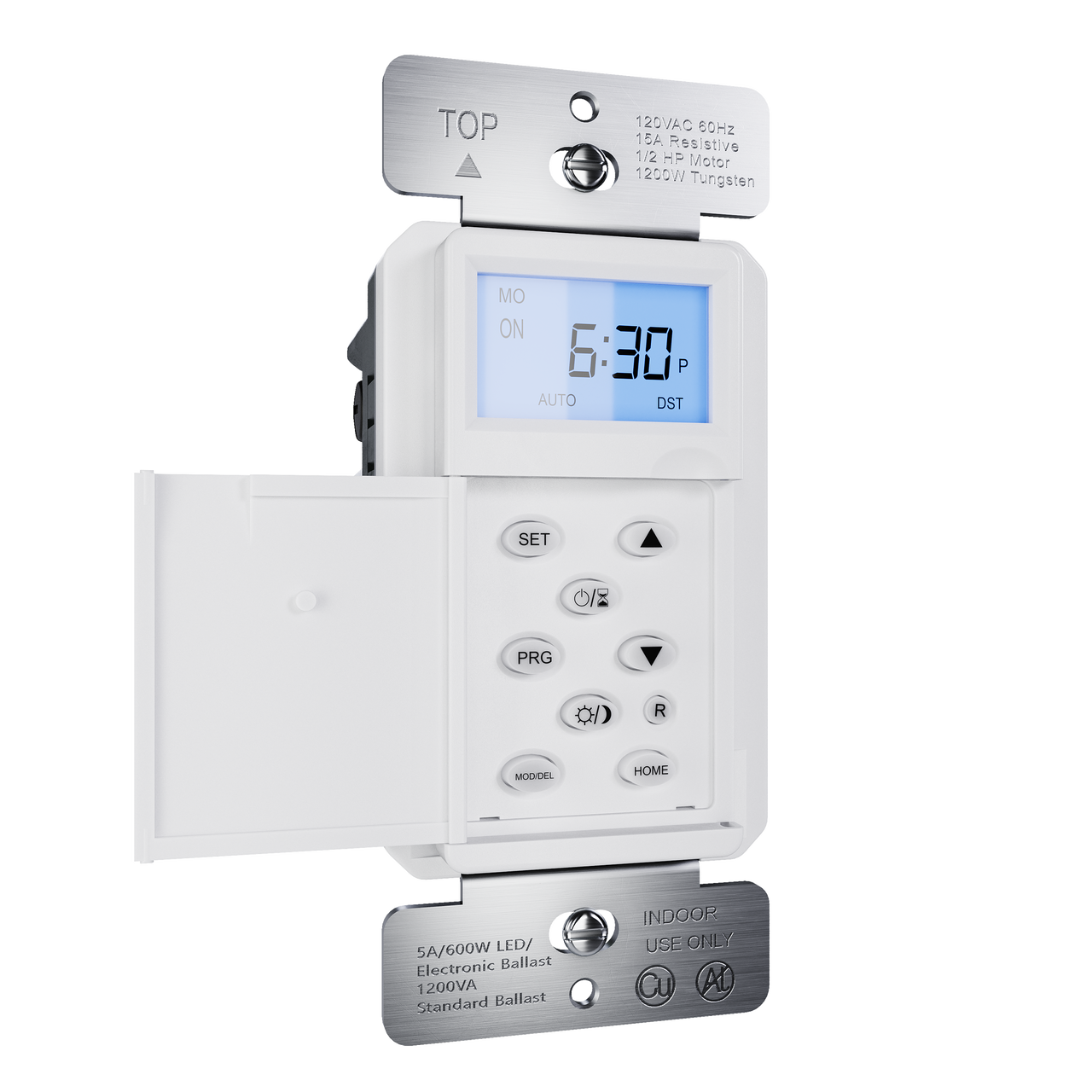

Legrand RTPA24W programmable 24-hour astronomic timer 120 VAC 600W (Single-Pole/3-Way) 2373037

Product Description

Legrand RTPA24W is a programmable 24-hour astronomic timer that controls lighting and small motor loads using user-set schedules and sunrise/sunset calculations. The device offers up to seven ON and seven OFF events per day, automatic daylight savings adjustment, and a rechargeable battery backup that retains programs for up to 14 days. It replaces single-pole and 3-way wall switches and meets Title 24 and IECC exterior lighting requirements.

• Astronomic scheduling with automatic daylight savings adjustment; four operating modes including Manual, Automatic, Random, and Countdown
• Built-in rechargeable battery backup retains programs up to 14 days; manual ON override returns to program within 6 hours
• Wired screw-terminal connections; requires neutral; rated 120 VAC, 600W (LED), 1/2 HP at 120 VAC; compatible with LED, CFL, and incandescent loads

Product Highlights

24-hour astronomic timer with 7 ON/7 OFF events, 14-day battery backup, Title 24/IECC compliant

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: RTPA24W
• Country of Origin: China

Technical Specifications

• Brand: Legrand
• Manufacturer Part Number: RTPA24W
• Alternate Part Number: 2373037
• Type: Timer
• Timer Type: Astronomical, Digital, Programmable, Countdown
• Timing Range: 24-hour programmable; 7 days
• Programming Events: 7 ON and 7 OFF settings per day
• Operating Modes: Manual, Automatic, Random, Countdown
• Voltage: 120 VAC
• Frequency Rating: 60 Hz
• Electrical Rating: 600W (LED)
• Horsepower Rating: 1/2 HP @ 120 VAC
• Load Type: LED, CFL, Incandescent
• Number of Poles: Single Pole / 3-Way
• Requires Neutral Wire: Yes
• Wire Connection Type: Screw terminals
• On Function: Programmable on/off with manual override
• Battery Backup Duration: Retains programs up to 14 days
• Display: Back-lit LCD
• Installation Location: Wall box (replaces standard wall switch)
• Location Rating: Dry
• Operating Temperature: -40 °C to 40 °C
• Material: Steel, Thermoplastic
• Finish: Gloss
• Product Height: 4.11 in
• Product Width: 1.73 in
• Product Depth: 1.42 in
• Product Weight: 0.29 lb
• Standards / Certifications: cULus, UL, RoHS
• Product Line: Pass & Seymour
• Country of Origin: China
• UPC: 785007454611
