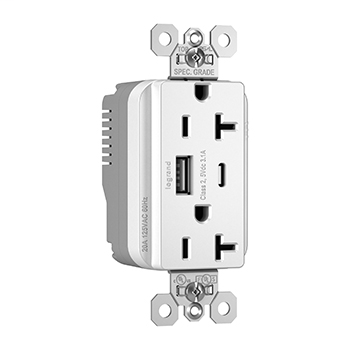

Legrand PTTR20ACUSBW 20A USB Commercial Specification Grade Charging Receptacle White

Product Description

Legrand PTTR20ACUSBW is a 20 Amp USB commercial specification grade charging receptacle in white. This receptacle offers mobile charging without bulky adapters, featuring two UL Fed Spec AC receptacles and two USB ports, one Type-A and one Type-C. It provides a 15.5W power supply suitable for charging phones and tablets efficiently. The PlugTail termination allows for secure and safer installations, meeting demands of modern mobile environments.

• AC receptacles are tamper-resistant with a patented shutter system.
• Designed for hard-use commercial applications.
• Compatible with a variety of wall plates for flexibility.

Product Highlights

This receptacle is ideal for institutional, retail, and hospitality applications.

Product Information

Standard Information

• Brand: Legrand
• Manufacturer: Pass & Seymour

Technical Specifications

• MPN: PTTR20ACUSBW
• Voltage: 125 Volt
• Amperage: 20 Amp
• Material: Thermoplastic
• Depth: 1.45 inches
• Width: 0.69 inches
• Height: 3.281 inches
• Application: Institutional, Retail, Hospitality
• USB Ports: 2
• USB Rating: 3.1 A at 5 VDC
• Environmental Conditions: -40 to 60 degrees Celsius
• Standards/Approvals: UL 498, cULus Listed
