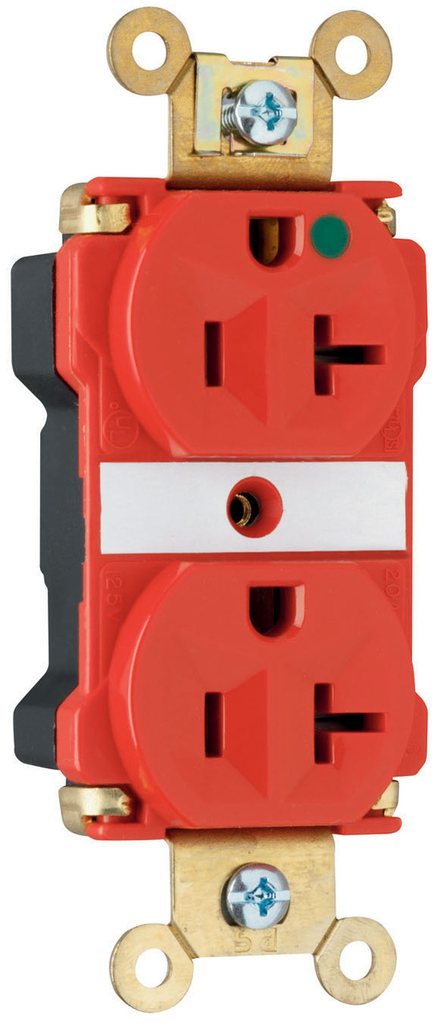

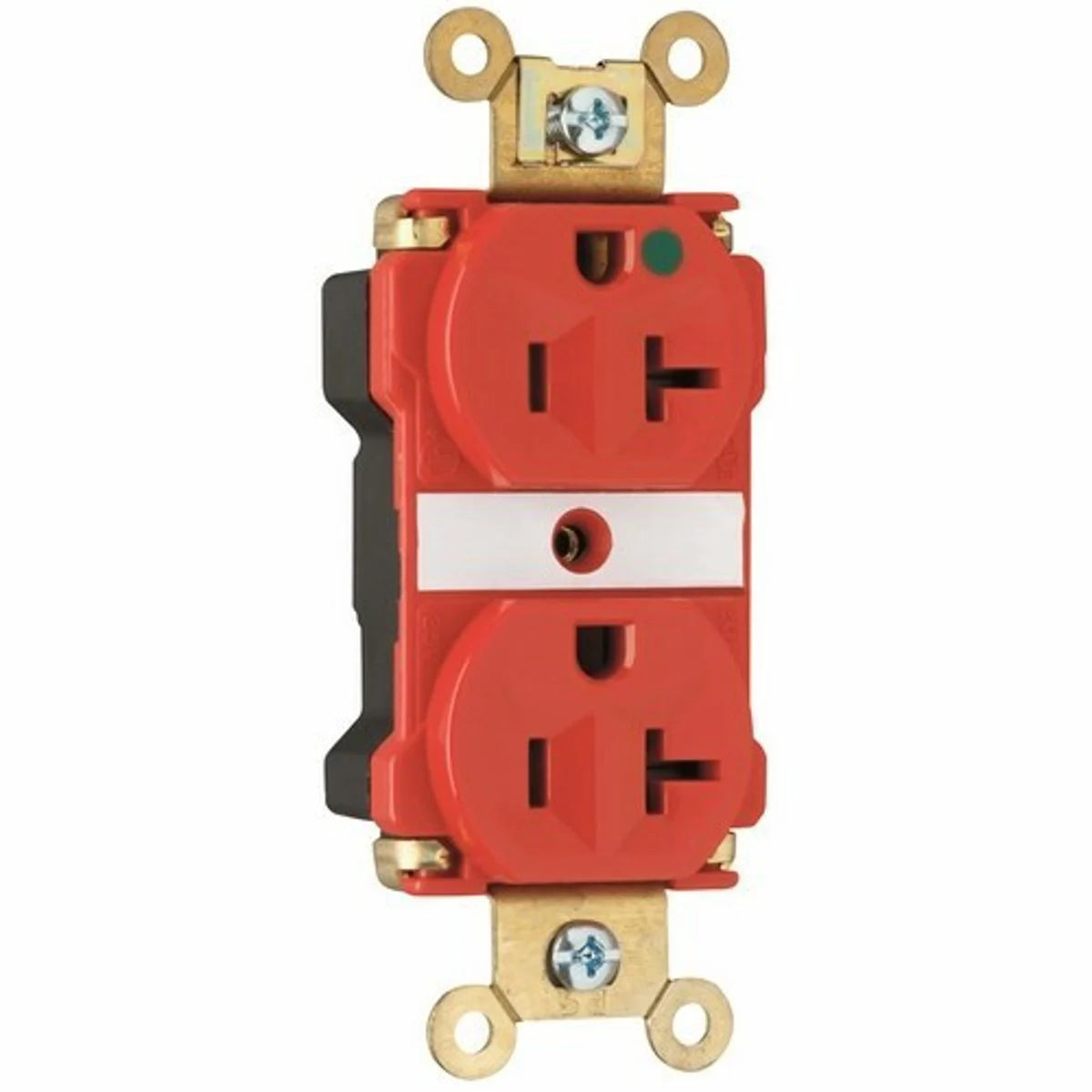

Legrand PT8300RED PlugTail Extra Heavy-Duty Hospital Grade Duplex Receptacle 20A 125V

Product Description

The Legrand PT8300RED is a PlugTail Extra Heavy-Duty Hospital Grade Duplex Receptacle rated for twenty amps at one hundred twenty-five volts. This receptacle features a distinctive red color, making it easily identifiable for hospital and commercial applications.

• Hospital grade for reliable performance in demanding environments.
• Crimped and welded contacts ensure a secure electrical connection.
• Finger-safe design with no exposed terminals.

Product Highlights

This receptacle is designed for safety and durability in industrial and healthcare settings. Its PlugTail design allows for quick and consistent connections, making it suitable for new installations or replacements.

Product Information

Standard Information

• Catalog Number: PT8300RED
• Manufacturer: Legrand - Pass & Seymour

Technical Specifications

• Voltage Rating: 125 volts
• Amperage Rating: 20 amps
• Color: Red
• Material: Thermoplastic
• Dimensions: 3.3 inches high x 1.625 inches wide x 0.866 inches deep
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Grade: Hospital
• Country of Origin: Mexico
