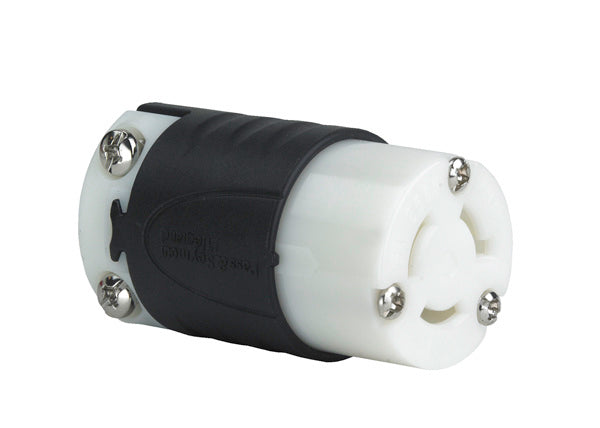

Legrand PSL615-C 15A NEMA L615 Connector

Product Description

The LEGRAND PSL615-C is a Pass & Seymour Turnlok locking connector. This 15A, 250V connector features quick-thread assembly screws and cord-grip screws that come backed-out, ready-to-wire. Its impact- and corrosion-resistant durable nylon 6/6 shell material ensures longevity and reliability in industrial settings.

• Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
• Raised ribs provide non-slip gripping profile for turning to lock and unlock.
• Double dovetail design provides superior protection against cord pull-out forces.

Product Highlights

Ideal for industrial applications, this connector offers a secure and durable connection with easy wiring and robust construction.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: PSL615-C
• Country of Origin: Mexico

Technical Specifications

• Type: Connector
• Application Sector: Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Corrosion Resistant: Yes
• Standard: UL 498, FEDSPEC
• UPC Number: 785007236682
• Product Length US: 2.598 in
• Product Width US: 1.358 in
• cULus Listed: Yes
• Product Environmental Profile: Yes
• Amperage: 15 A
• Flanged: No
• Connector Style: Locking
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: L6-15R
• Number of Poles: 2
• Number of Wires: 3
• Terminal Accommodation: #4 AWG
• Voltage: 250.0 V
• Conductor Size: 4 AWG
• Material: Nylon
• Number of Ports: 2
• Wire Size: 4 AWG
• Brand: Pass & Seymour
• Sub Brand: Turnlok
• GTiN: 00785007236682
• Product UPC: 78500723668
• UNSPSC: 39121403
• Diameter: 1.516 Inch
• Length: 3.3 Inch
• Certifications: CULUS,FEDSPEC
• Part Number #: PSL615-C
• SKU #: 2378298
• Cord Diameter: 0.23 to 0.72 in
• Enclosure: IP20
• Horsepower: 1-1/2 hp
• NEMA Rating: NEMA L6-15R
• Temperature Rating (Degrees F): -40 to 75 deg C
• Terminal Type: Screw
• Country of origin: MX
• Manufacturer Name: Legrand
• Grade: Industrial
• Series: Turnlok
• Voltage Rating: 250 VAC
• Standard & Approvals: CSA Certified, Federal Specification WC596, RoHS Complaint, UL 498 Listed
