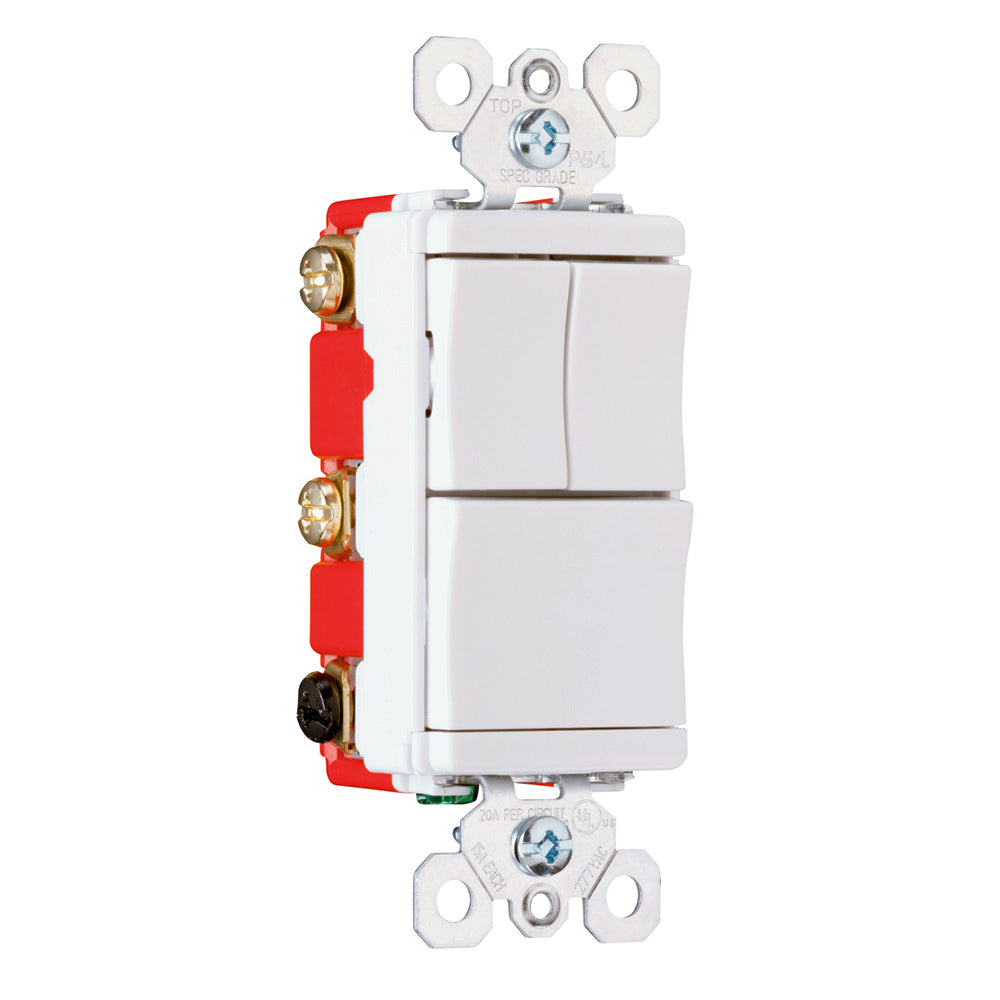

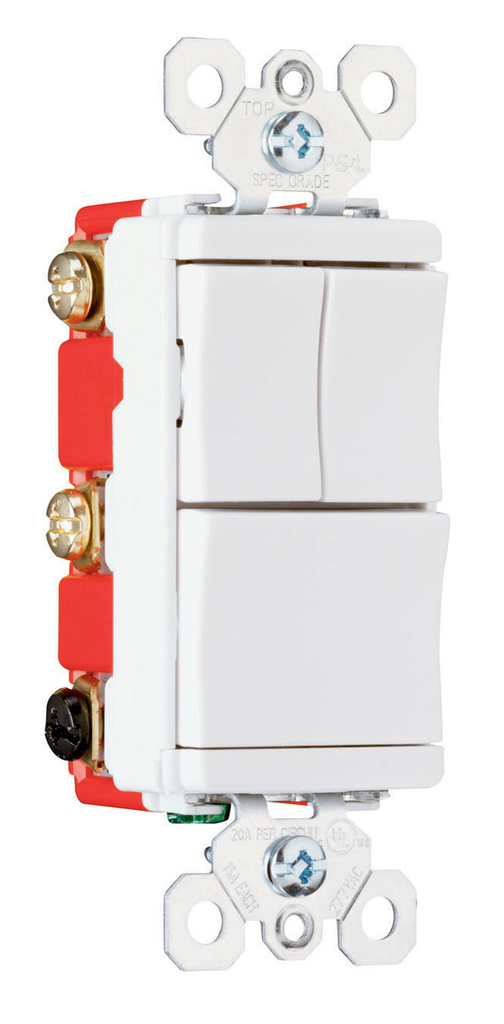

Legrand PS811120W Decorator Combo 3 Switches 277 Volt

Product Description

The Legrand PS811120W is a decorator combo switch featuring three single pole switches designed for use in commercial applications. This model supports a voltage rating of 277 volts and an amperage of 20 amps. It has a compact size of one point twenty-nine inches long by one point fifty-nine inches wide by three point eight hundred twelve inches high. The paddle actuator enables smooth up and down functionality. The switch is built using impact-resistant materials for durability.

• Impact-resistant polycarbonate back body and frame
• Cushioned thermoplastic paddle for quiet operation
• Long-term consistent performance with fewer moving parts

Product Highlights

This product features an auto-ground clip for secure installation and tri-drive terminal screws for easy wiring. It is suitable for both back and side wiring with a capacity for number fourteen to number ten stranded or solid copper wire.

Product Information

Standard Information

• Brand: Legrand
• Manufacturer: Pass & Seymour

Technical Specifications

• Catalog Number: PS811120W
• Amperage: 20 Amp
• Voltage: 277 Volt
• Action: Up/Down Rocking Paddle
• Operating Cycles: 50000
• Operating Temperature: Maximum continuous +115 degrees C, minimum -40 degrees C
• Environmental Conditions: Flammability: UL94 V2
• Contact Rating: 20 A, 277 VAC
• Number of Poles: 1 Pole
