Product Description

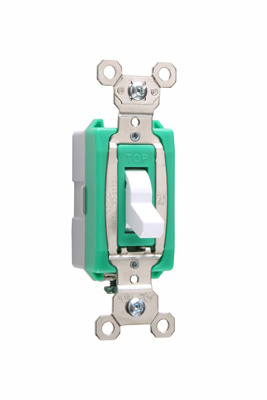

The Legrand PS30AC1W is a one pole toggle switch designed for back and side wiring. It supports a current rating of thirty amps at one hundred twenty to two hundred seventy-seven volts. It is suited for various industrial applications. This switch features an easy installation process and is made from durable materials to withstand heavy use.
- Accepts #14 to #10 AWG copper or copper-clad conductors.
- Virtually eliminates contact bounce with a heavy-gauge one-piece copper alloy contact arm.
- Minimizes arcing with cam controls for fast make and positive break.
Product Highlights
This toggle switch is ideal for industrial settings where durability and reliability are required.
Product Information
Standard Information
-
Catalog Number: PS30AC1W
-
Brand: Legrand-Pass & Seymour
Technical Specifications
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 30 A
-
Operating Cycles: 50000 Cycles
-
Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
-
Material: Thermoplastic
-
Environmental Conditions: -40 to 115 degrees C
-
Country of Origin: Mexico
