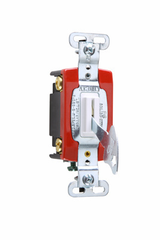

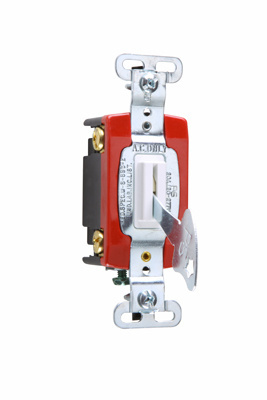

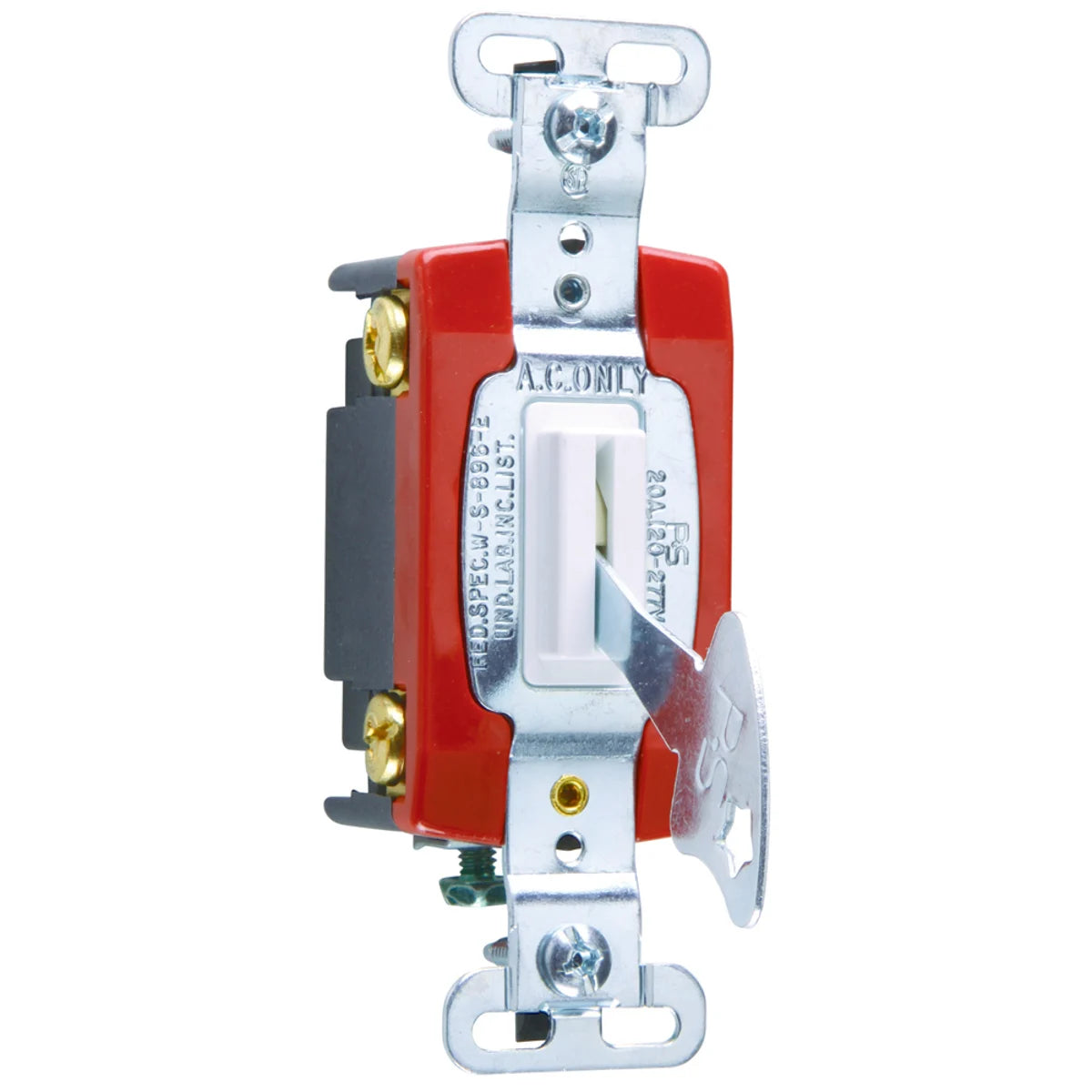

Legrand PS20AC4WL Pass & Seymour 4way Lock Switch 20A 120/277V

Product Description

The Legrand PS20AC4WL is a durable 4way lock switch designed for back and side wiring. It supports a maximum load of twenty amps and operates at either 120 or 277 volts. The product's design allows for key removal in both positions, providing flexibility for various applications.

• External screw-pressure-plate back and side wired; accepts #14 - #10 AWG copper or copper-clad conductors.
• Heavy-gauge one-piece copper alloy contact arm minimizes contact bounce.
• Cam controls ensure a fast “make” and positive “break” to reduce arcing.

Product Highlights

The switch features heavy-duty bumper pads for quiet operation and a toggle made from high-strength thermoplastic polycarbonate.

Product Information

Standard Information

• Brand: Legrand
• Manufacturer: Pass & Seymour / Legrand

Technical Specifications

• Catalog Number: PS20AC4WL
• Voltage Rating: 120/277 VAC
• Wattage: 4 W
• Amperage Rating: 20 A
• Dimensions: 3.281 in H x 1.320 in W x 1.073 in D
• Number of Poles: 4 Pole
• Country of Origin: Mexico
