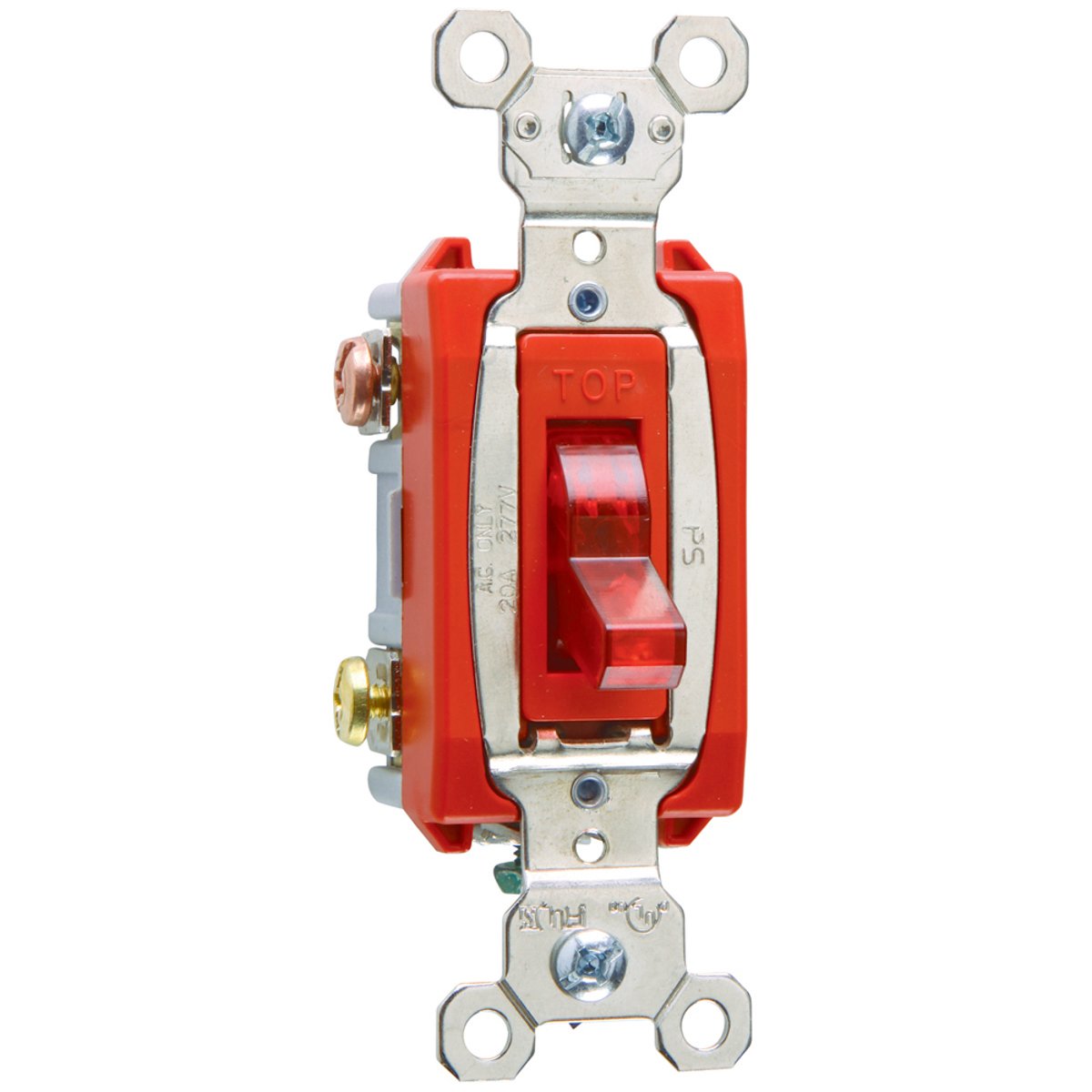

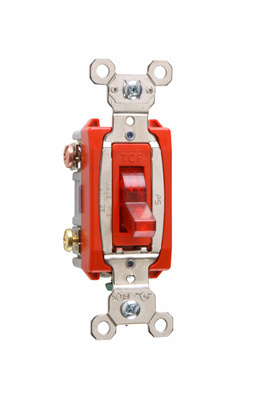

Legrand PS20AC3RPL7 3way Pilot Lighted Switch, Back & Side Wire, 20A 277V

Product Description

The Legrand PS20AC3RPL7 is a 3way pilot lighted switch designed for back and side wiring. It operates at 20 amps and 277 volts, making it suitable for various industrial applications. The switch features a red pilot light that indicates the switch status, ensuring easy identification in dark or high-traffic areas.

• Accepts #14 - #10 AWG copper or copper-clad conductors.
• Heavy-gauge one-piece copper alloy contact arm minimizes contact bounce.
• Cam controls fast make and positive break to reduce arcing.

Product Highlights

This switch is built with a heavy-duty design and includes special features such as oversized silver alloy contacts for longevity and a grounding terminal for safety. It is ideal for various wiring needs in industrial settings.

Product Information

Standard Information

• Brand: Legrand
• Sub Brand: Pass & Seymour

Technical Specifications

• Catalog Number: PS20AC3RPL7
• Amperage Rating: 20 Amps
• Voltage Rating: 120/277 Volts
• Contact Rating: 120 V
• Size: 3.3 inches
• Number of Poles: 3
• Country of Origin: Mexico
• Certification: cULus, FEDSPEC
