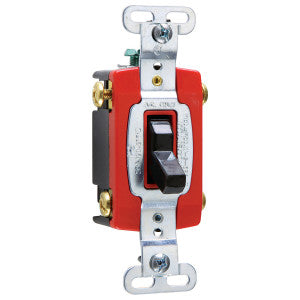

Legrand PS20AC3-BK Industrial Extra Heavy Duty Specification Grade Switch 20 A

Product Description

The LEGRAND PS20AC3-BK is an industrial extra heavy-duty specification grade switch. Features a one-piece toggle molded from chemical, impact, and heat-resistant thermoplastic. The glass-reinforced thermoplastic back body provides durability and resistance to harsh cleaners. Designed with a shallow build for easy installation.

• One-piece nickel-plated brass strap for superior corrosion-resistance
• Auto-ground clip assures positive ground
• Oversized silver-alloy contacts for long life and better heat dissipation

Product Highlights

This toggle switch is ideal for commercial and industrial applications requiring a robust and reliable switching solution.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: PS20AC3-BK
• Country of Origin: Mexico

Technical Specifications

• Color: Black
• Type: Switch
• Material: Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Chemical Resistant: Yes
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Toggle
• Standard: UL 20, FEDSPEC, CULUS
• UPC Number: 785007195378
• Product Depth US: 1.09 in
• Product Height US: 4.195 in
• Product Width US: 1.25 in
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 20 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: 3-Way
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 VAC, 277 VAC
• Brand: Pass & Seymour
• Current Type: AC
• Model: SWITCH
• MPN: PS20AC3-BK
• Category: Toggle Switches
• ECCN: EAR99
• UNSPSC: 39122211
• Application: Industrial
• Amperage Rating: 20A
• AWG Range: 14 - 10 AWG
• Grade: Industrial, Specification
• Rated Voltage: 120V
• Color Family: Black
• Height: 4.195 in.
• Depth: 1.09 in.
• Width: 1.25 in.
