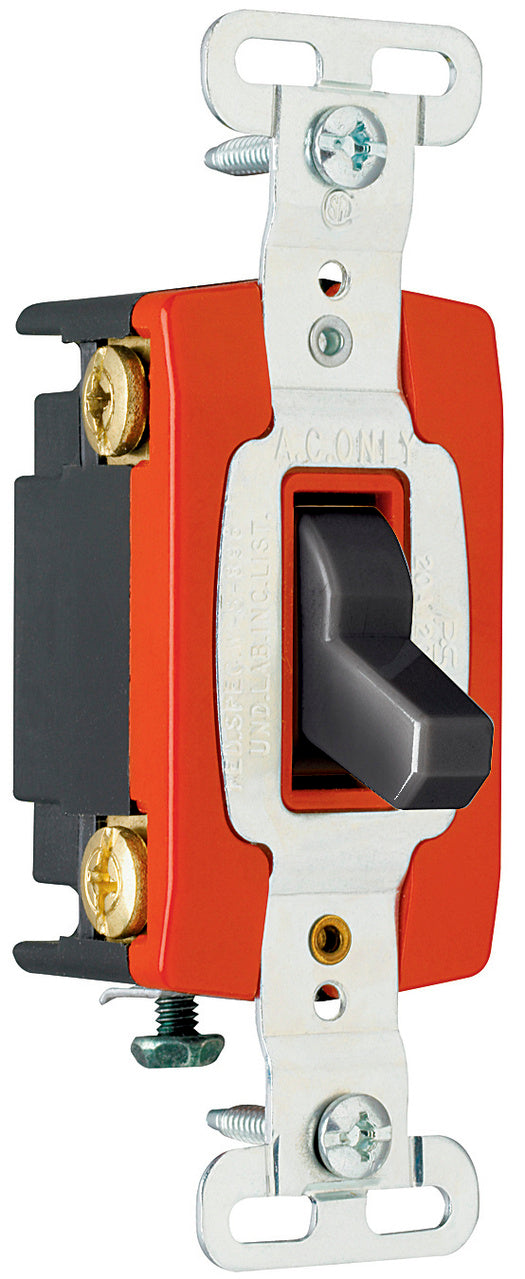

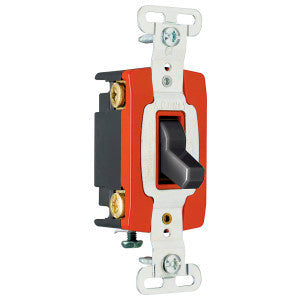

Legrand Pass & Seymour PS20AC4-BK Toggle Switch 20A 120/277 VAC 4-Way

Product Description

The LEGRAND PASS & SEYMOUR PS20AC4-BK is a toggle switch with a 20 Ampere current rating and a voltage rating of 120/277 VAC. This 4-way switch is suitable for industrial applications and features back and side wiring. It accepts #14 - #10 AWG copper or copper-clad conductors.

• 20 Ampere Current Rating
• 120/277 VAC Voltage Rating
• 4-Way Operation

Product Highlights

This toggle switch is designed for industrial use and offers reliable performance with its robust construction and versatile wiring options.

Product Information

Standard Information

• Brand: LEGRAND PASS & SEYMOUR
• Manufacturer Part Number: PS20AC4-BK
• Country of Origin: Mexico

Technical Specifications

• Type: Toggle
• Current Rating: 20 Ampere
• Voltage Rating: 120/277 VAC
• Power Rating: 1 HP at 120 VAC, 2 HP at 240 VAC
• Operation Type: 4-Way
• Material: Thermoplastic Polycarbonate Toggle, Glass-Reinforced Nylon Back Body, Nylon Front Body, Nickel Plated Steel Mounting Strap
• Wiring: Back, Side
• Size: 1.32 Inch W x 1.073 Inch D x 3.281 Inch H
• Wall Plate Included: No
• Application: Industrial
• Approval: UL 498, FSUL WS896, CSA C22.2
• Applicable Standard: NEMA WD-1/WD-6
• Finish: Matte
• Product Line: Pass & Seymour
• Chemical Resistant: Yes
• Number of Switches: 1
• Switch Type: Toggle
• Standard: UL 20, FEDSPEC
• Product Depth US: 1.073 in
• Product Height US: 3.281 in
• Product Width US: 1.32 in
• CSA Listed: Yes
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 20 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: 4-Way
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 VAC, 277 VAC
• Actuator: Toggle
• Applications: Industrial
• Contact Rating: 120 V
• Duty Rating: Extra Heavy Duty
• Grade: Industrial
• Depth: 1.073 Inch
• Height: 3.281 Inch
• Width: 1.32 in
• Certifications: CSA,FEDSPEC,UL
• Terminal: Screw
• AC Adapter Current: 20 Amps
• Contact Material: Copper
• Operating Voltage: 120 Volts
• Operation Mode: Toggle
• Specification Met: CSA, cUL
• Manufacturer: Legrand Pass & Seymour
• Part Number: PS20AC4BK
• Item model number: PS20AC4BK
• Item Package Quantity: 1
• Switch Style: Pressure Switch, Toggle Switch
• Included Components: PS20AC4BK
• Batteries Required?: No
• ECCN: EAR99
• Country of Origin: MX - Mexico
• UPC: 78500719546
• UNSPSC: 39122211
• Amperage Rating: 20A
• AWG Range: 14 - 10 AWG
• Rated Voltage: 120V
• Color Family: Black
