Description

Product Description

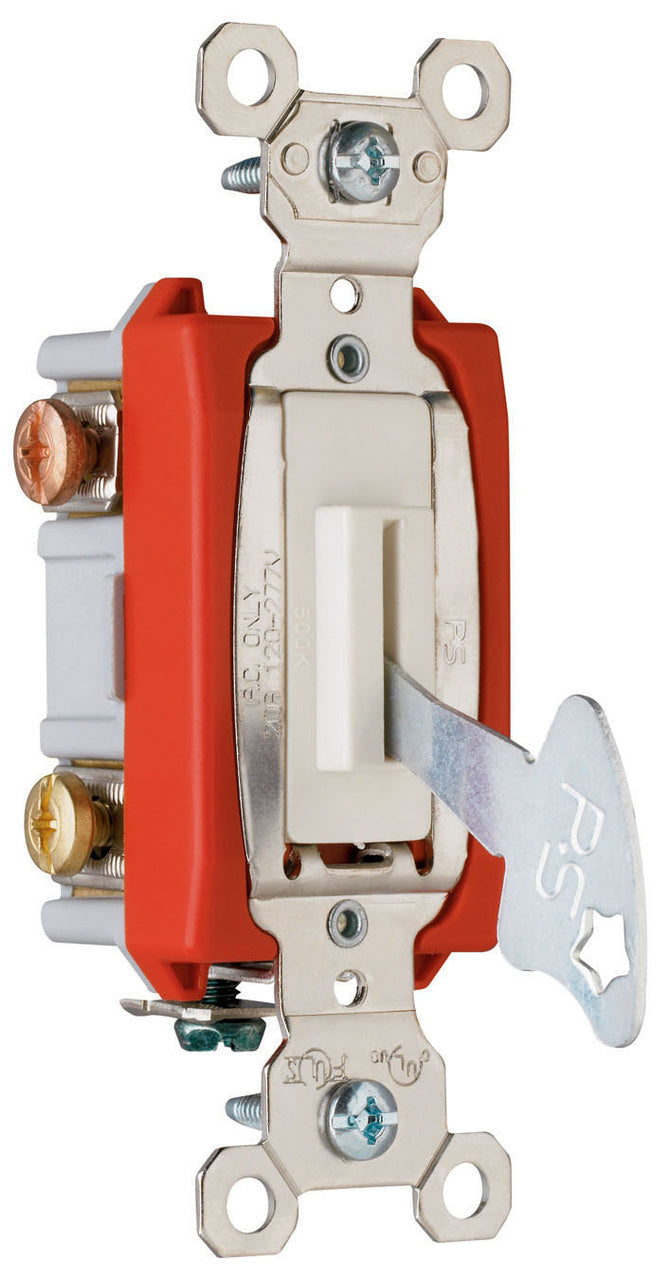

The LEGRAND PASS & SEYMOUR PS20AC3-WL is a keyed locking toggle switch with a current rating of 20 Ampere and a voltage rating of 120/277 VAC. Suitable for industrial applications, it features back and side wiring. The switch has a power rating of 1 HP at 120 VAC and 2 HP at 240 VAC and offers 3-way operation.

  • Keyed Locking
  • 20 Ampere Current Rating
  • 120/277 VAC Voltage Rating
  • 3-Way Operation

Product Highlights

Industrial grade keyed locking toggle switch with back and side wiring and a 20A current rating.

Product Information

Standard Information

  • Brand: LEGRAND PASS & SEYMOUR
  • Manufacturer Part Number: PS20AC3-WL
  • Country of Origin: Mexico
Technical Specifications
Type
Keyed Locking
Current Rating
20 Ampere
Voltage Rating
120/277 VAC
Power Rating
1 HP at 120 VAC, 2 HP at 240 VAC
Operation Type
3-Way
Material
Thermoplastic Polycarbonate Toggle, Glass-Reinforced Nylon Back Body, Nylon Front Body, Nickel Plated Steel Strap
Wiring
Back, Side
Wall Plate Included
No
Application
Industrial
Approval
UL 498, FSUL WS896, CSA C22.2
Applicable Standard
NEMA WD-1/WD-6
Switch Type
Toggle
Product Line
Pass & Seymour
Country Of Origin
Mexico
Chemical Resistant
Yes
Number of Switches
1
Standard
UL 20, FEDSPEC
UPC Number
785007196481
cULus ListingNumber
140597
cULus Listed
Yes
Amperage
20 A
Connection Location
Back and Side
Requires Neutral Wire
No
Wire Connection Type
Screw Terminals
Indoor/Outdoor
Indoor
Load Rating
20 A @ 120/277 VAC
Load Type
CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
3-Way
Throw Type
Double Throw
Terminal Accommodation
#14 AWG - #10 AWG
Voltage
120 VAC, 277 VAC
Finish
Matte
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Industrial
Certifications
CULUS,FEDSPEC
Wattage
3 Watt
