Legrand Pass & Seymour PS20AC2-L Lock Switch 20A 120/277VAC

Product Description

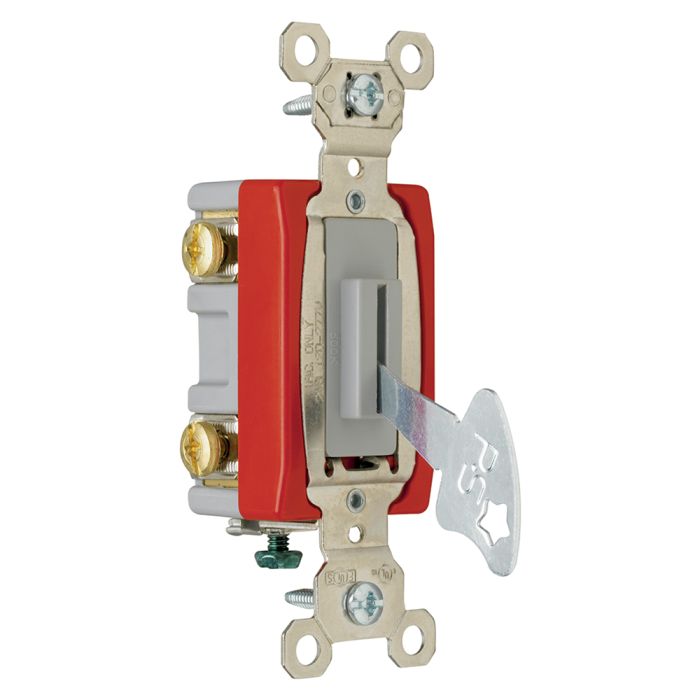

The LEGRAND PASS & SEYMOUR PS20AC2-L is a 20A, 120/277VAC keyed locking toggle switch. Constructed with a thermoplastic polycarbonate toggle, glass-reinforced nylon back body, and a nylon front body. Designed for industrial applications with back and side wiring options. The key can be removed in both positions.

• Keyed Locking
• 20 Ampere Current Rating
• 120/277 VAC Voltage Rating
• Industrial Application

Product Highlights

This heavy-duty specification grade lock switch offers a reliable solution for restricting use in industrial settings. It features a durable design and easy installation.

Product Information

Standard Information

• Brand: LEGRAND PASS & SEYMOUR
• Manufacturer Part Number: PS20AC2-L
• Country of Origin: Mexico

Technical Specifications

• Type: Keyed Locking
• Current Rating: 20 Ampere
• Voltage Rating: 120/277 VAC
• Operation Type: 2-Pole
• Material: Thermoplastic Polycarbonate Toggle, Glass-Reinforced Nylon Back Body, Nylon Front Body, Nickel Plated Steel Strap
• Color: Gray
• Wiring: Back, Side
• Wall Plate Included: No
• Application: Industrial
• Approval: UL 498, FSUL WS896, CSA C22.2
• Applicable Standard: NEMA WD-1/WD-6
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Chemical Resistant: Yes
• Number of Switches: 1
• Switch Type: Toggle
• Standard: UL 20, FEDSPEC
• Product Depth US: 1.09 in
• Product Height US: 4.195 in
• Product Width US: 1.25 in
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 20 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: Double Pole
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 VAC, 277 VAC
• Amperage Rating: 20 A
• Contact Configuration: DPST
• Contact Rating: 20 A at 120/277 VAC
• Actuator: Toggle
• Connection: Thread
• Mounting: Wall
• Environmental Conditions: -40 to 115 deg C Temperature
• Grade: Industrial
• Split Crucible: S
• Lock Key: Lock Key
• Sub Brand: Pass & Seymour
• 12-Digit UPC: 785007195620
• Product UPC: 78500719562
• UNSPSC: 39121507
• Depth: 1.09 Inch
• Height: 4.195 Inch
• Width: 1.25 in
• Certifications: CULUS,FEDSPEC
