Legrand Pass & Seymour IG8300 Ig Dup Recept 20A 125V

Product Description

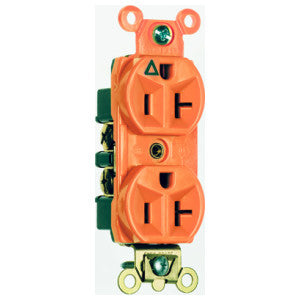

The LEGRAND PASS & SEYMOUR IG8300 is a straight blade, heavy-duty duplex receptacle. This 20A, 125V receptacle features corrosion and impact-resistant construction and isolated grounding. It is made with a nylon face and steel strap, and is suitable for side and back wiring. This hospital-grade receptacle is UL 498, CSA C22.2, and FSUL WC596 approved.

• Straight Blade Receptacle
• Heavy Duty and Corrosion/Impact Resistant
• Isolated Grounding and Hospital Grade

Product Highlights

The LEGRAND PASS & SEYMOUR IG8300 is a durable, high-quality receptacle designed for demanding applications.

Product Information

Standard Information

• Brand: LEGRAND PASS & SEYMOUR
• Manufacturer Part Number: IG8300
• Country of Origin: Mexico

Technical Specifications

• Type: Duplex, Heavy Duty
• Constructional Feature: Corrosion/Impact Resistant
• Configuration: NEMA 2-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Isolated Grounding
• Material: Nylon (Face), Steel (Strap)
• Wiring: Side, Back
• Grade: Hospital
• Approval: UL 498, CSA C22.2, FSUL WC596
• Wire Size: 14 to 10 AWG Solid/Stranded Copper/Copper Clad
• Minimum Dielectric Strength Rating: 2000 Volt
• Temperature Rating: -40 to 60 Deg C
• Finish: Matte
• Application Sector: Commercial, Healthcare
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: Hospital Grade, Isolated Ground
• Standard: UL498, CSA C22.2 No. 42
• UPC Number: 785007830347
• cULus ListingNumber: E140596
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Wire Connection Type: Screw Terminals
• Dielectric Strength: Withstands 2000V minimum
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: 5-20R
• Rated Voltage: 125V
• Color Family: Orange
• ECCN: EAR99
• UNSPSC: 39121406
• Application: Commercial
• Mounting Type: Wall
• AWG Range: 14 - 10 AWG
