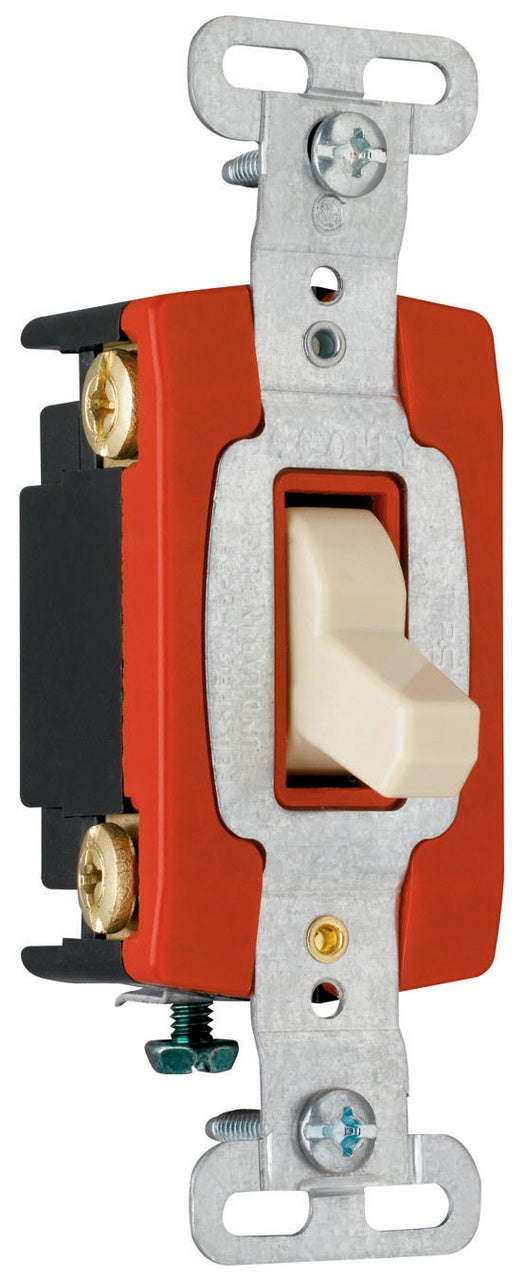

Legrand Pass & Seymour CSB20AC4-GRY Toggle Switch 20A 120/277VAC 4-Way

Product Description

The LEGRAND PASS & SEYMOUR CSB20AC4-GRY is a 4-way toggle switch with a current rating of 20 Ampere and a voltage rating of 120/277 VAC. Constructed with a thermoplastic polycarbonate toggle, glass-reinforced nylon back body, and a nickel-plated steel mounting strap. Designed for commercial applications with back and side wiring.

• 20 Ampere Current Rating
• 120/277 VAC Voltage Rating
• 4-Way Operation
• Suitable for Commercial Applications

Product Highlights

This toggle switch ensures reliable electrical performance with a one-piece brass alloy contact arm and a steel strap with integral ground for corrosion resistance.

Product Information

Standard Information

• Brand: LEGRAND PASS & SEYMOUR
• Manufacturer Part Number: CSB20AC4-GRY
• Country of Origin: Mexico

Technical Specifications

• Type: Toggle
• Current Rating: 20 Ampere
• Voltage Rating: 120/277 VAC
• Operation Type: 4-Way
• Material: Thermoplastic Polycarbonate Toggle, Glass-Reinforced Nylon Back Body, Nylon Front Body, Nickel Plated Steel Mounting Strap
• Wiring: Back, Side
• Application: Commercial
• Approval: UL 20, FSUL WS896, CSA C22.2
• Applicable Standard: NEMA WD-1/WD-6
• Color: Gray
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Switches: 1
• Standard: UL20, FEDSPEC
• UPC Number: 785007126365
• CSA Listed: Yes
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 20 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Horsepower Rating: 1 HP @ 120 VAC, 2 HP @ 240 VAC
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 VAC, 277 VAC
• MPN: CSB20AC4-GRY
