Legrand Pass & Seymour CS8469 2P3W 480V Recept

Product Description

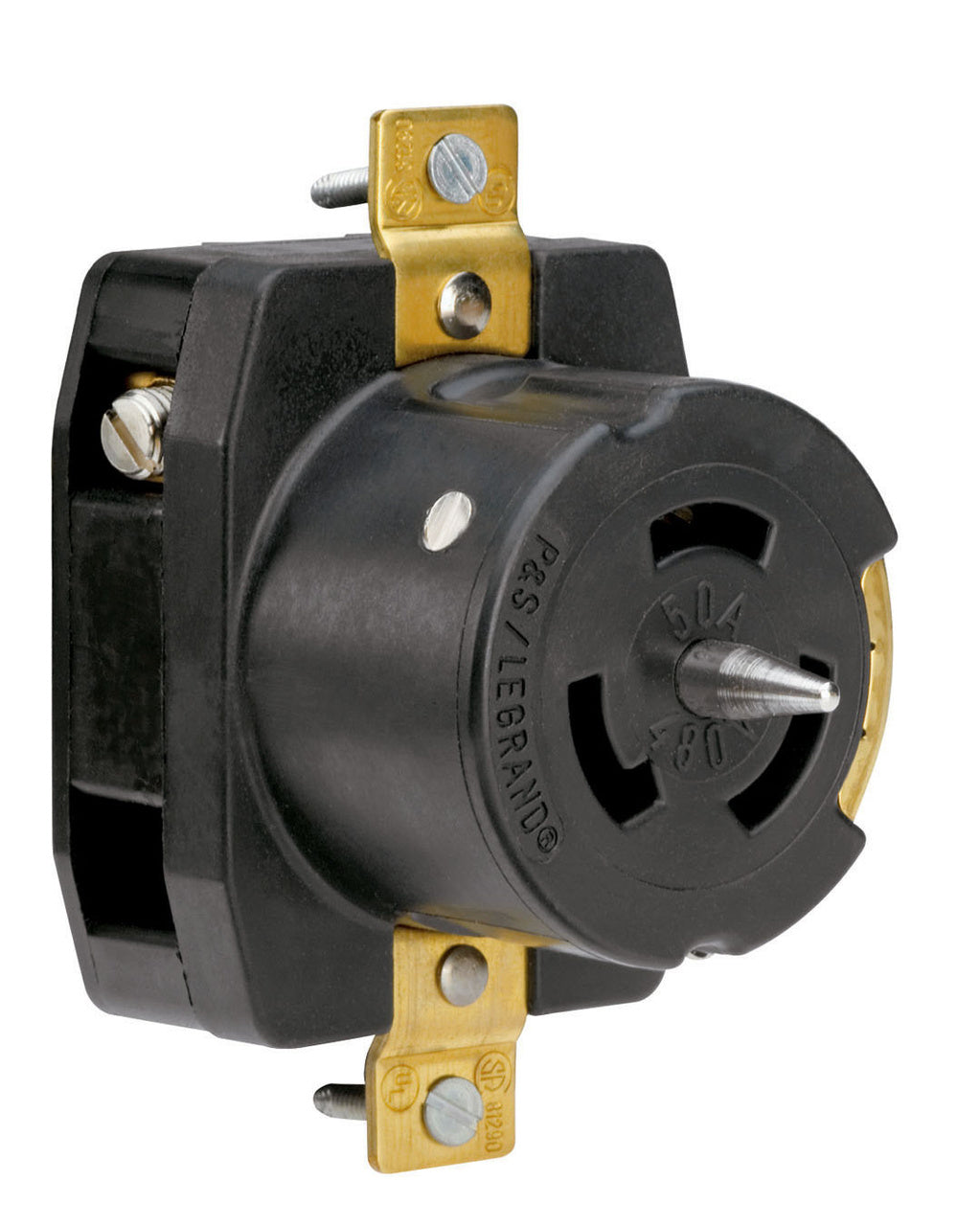

The LEGRAND PASS & SEYMOUR CS8469 is a locking device receptacle. This single locking, California style receptacle features impact resistant construction and a non-NEMA locking configuration. Rated at 480 VAC and 50 Ampere, it has 2 poles and 3 wires with a grounding type.

• Locking Device Receptacle
• Impact Resistant Construction
• Non-NEMA Locking Configuration

Product Highlights

This receptacle is constructed from glass filled nylon and is UL 498 and CSA approved. It operates in temperatures from -40 to 115 Deg C.

Product Information

Standard Information

• Brand: LEGRAND PASS & SEYMOUR
• Manufacturer Part Number: CS8469
• Country of Origin: Mexico

Technical Specifications

• Type: Single Locking, California Style
• Constructional Feature: Impact Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 480 VAC
• Current Rating: 50 Ampere
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Grounding
• Material: Glass Filled Nylon
• Approval: UL 498, CSA
• Applicable Standard: NEMA WD-1/WD-6
• Operating Temperature: -40 to 115 Deg C
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Standard: UL 498
• UPC Number: 785007846904
• Amperage: 50 A
• Voltage: 480.0 V
• Wire Size: 18 - 10 AWG
• Amperage Rating: 50 A
• Temperature Rating: -40 to 75 deg C
• CSA Listed: Yes
• CSA File Number: 140596
