Legrand Pass & Seymour CR6369 P&S 3P4W Recept 125/250V

Product Description

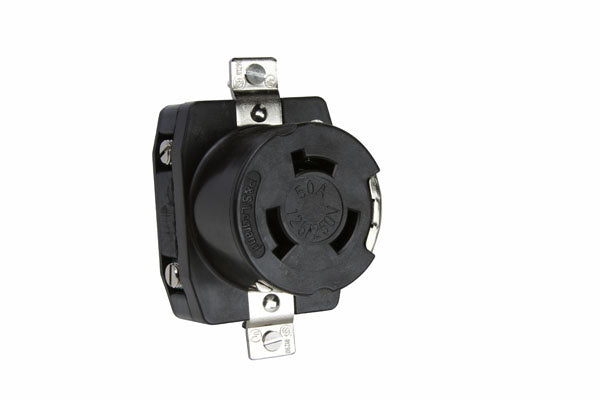

The LEGRAND PASS & SEYMOUR CR6369 is a locking device receptacle. This corrosion-resistant receptacle features a non-NEMA locking configuration and is constructed from glass-filled nylon. It is suitable for industrial applications requiring a durable and reliable power connection. The receptacle is UL 498 and CSA approved.

• Locking Device Receptacle
• Corrosion Resistant construction
• Non-NEMA Locking configuration

Product Highlights

Durable locking receptacle made from glass-filled nylon. Ideal for industrial applications. UL and CSA approved.

Product Information

Standard Information

• Brand: LEGRAND PASS & SEYMOUR
• Manufacturer Part Number: CR6369
• Country of Origin: Mexico

Technical Specifications

• Type: Single Locking
• Constructional Feature: Corrosion Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 125/250 VAC
• Current Rating: 50 Ampere
• Number of Poles: 3
• Number of Wires: 4
• Ground Type: Grounding
• Face Outer Diameter: 1.98 Inch
• Material: Thermoplastic
• Approval: UL 498, CSA
• Applicable Standard: NEMA WD-1/WD-6
• Operating Temperature: -40 to 115 Deg C
• Finish: Matte
• Application Sector: Industrial
• Product Line: Pass & Seymour
• Standard: UL498, CSA C22.2 No. 42
• CSA Listed: Yes
• Amperage: 50 A
• Applications: Industrial
• Wire Size: 10 - 18AWG
• Brand: Pass & Seymour
• Sub Brand: Pass & Seymour
• Depth: 1.08 Inch
• Diameter: 1.98 Inch
• Height: 3.28 Inch
• Width: 1.98 in
• Certifications: CSA,UL
• Contact Type: Socket
• Grade: Commercial
• Manufacturer Part Number: CR6369
• Mounting Type: Tabs
• NEMA Type: Non-NEMA
• Number of Contacts: 4
• Primary Type: Twist Lock
• Series: Turnlok Series
• Termination: screw
• Amperage Rating: 50A
• Phase: 3
• No. Of Poles: 3
• No. of Wires: 4
• Standards: UL 498, CSA Certified
• Temperature Rating: -40 to 75 deg C
