Legrand Pass & Seymour 696-LAG Combo 2Sw 1P 3W 15A 120/277V La

LEGRAND
Brand: LEGRAND
SKU: 696-LAG
Availability: Out Of Stock
$54.67
$54.67
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

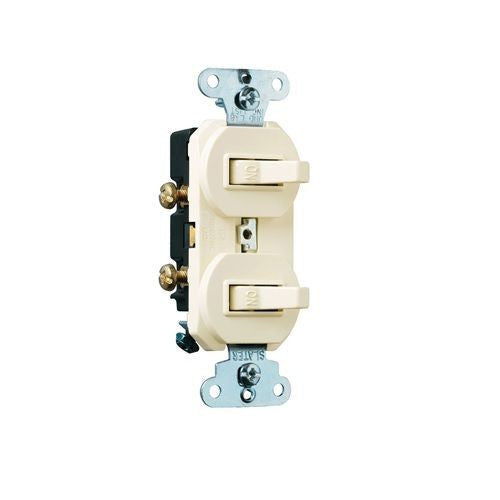

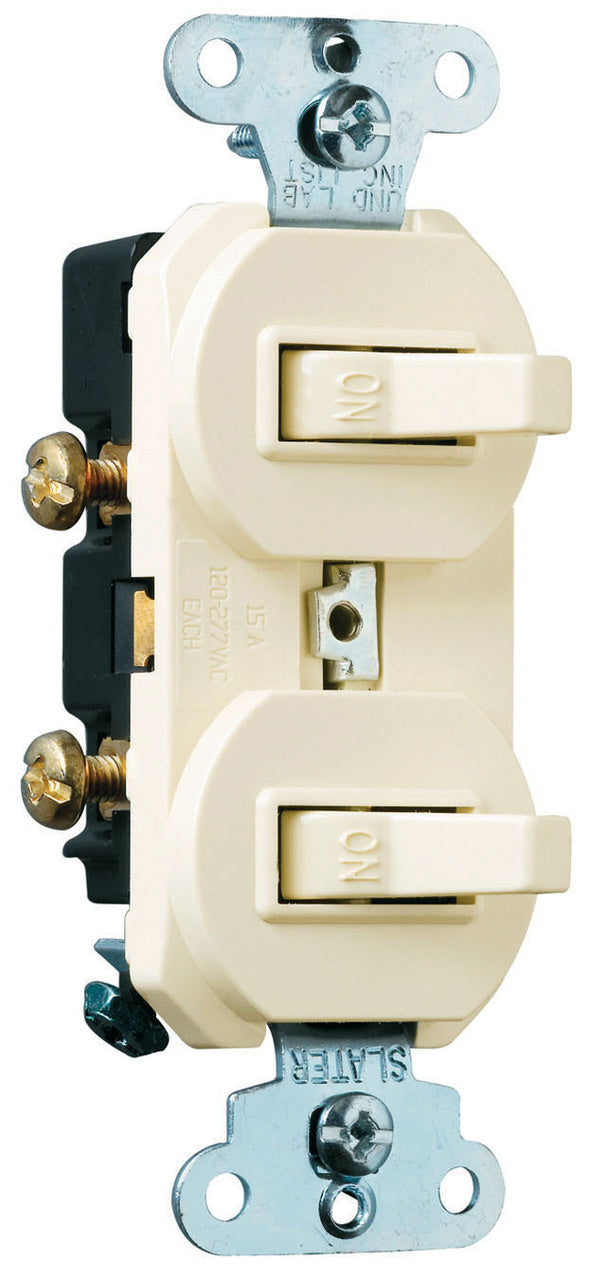

The LEGRAND PASS & SEYMOUR 696-LAG is a combination switch with a duplex type. Switch 1 is a 120/277 VAC 15 Ampere 1-Pole Toggle and Switch 2 is a 120/277 VAC 15 Ampere 3-Way Toggle. It features side wiring and is UL 20 approved, meeting NEMA WD-1/WD-6 standards. Ideal for residential and commercial applications.

  • Combination Switch
  • 120/277 VAC 15 Ampere 1-Pole Toggle Switch
  • 120/277 VAC 15 Ampere 3-Way Toggle Switch

Product Highlights

Combination switch with duplex type, featuring 1-pole and 3-way toggle switches. Side wiring and UL 20 approved.

Product Information

Standard Information

  • Brand: LEGRAND PASS & SEYMOUR
  • Manufacturer Part Number: 696-LAG
  • Country of Origin: Mexico
Technical Specifications
Type
Duplex
Switch 1 Type
120/277 VAC 15 Ampere 1-Pole Toggle
Switch 2 Type
120/277 VAC 15 Ampere 3-Way Toggle
Wiring
Side
Wall Plate Included
No
Approval
UL 20
Applicable Standard
NEMA WD-1/WD-6
Material
Thermoplastic
Finish
Satin
Application Sector
Hospitality, Residential
Product Line
Pass & Seymour
Country Of Origin
Mexico
Combination
Combination
Number of Switches
2
Switch Type
Toggle
Standard
CULUS, UL20
cULus ListingNumber
140597
cULus Listed
Yes
Amperage
15 A
Connection Location
Side Only
Requires Neutral Wire
Yes
Wire Connection Type
Screw Terminals
Contact Configuration
N-O
Flammability
UL94 V2
Indoor/Outdoor
Indoor
Load Rating
15 A @ 120/277 VAC
Load Type
CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
3-Way, Single Pole
Operating Cycles
30000
Throw Type
Single Throw
Terminal Accommodation
#14 AWG - #12 AWG
Voltage
120 VAC, 277 VAC
Action
3W,SP
Actuator
Toggle Switch
Amperage Rating
15 Amp
Applications
Commercial,Residential
Connection Type
Side Wire
Contact Rating
120 V
Operating Temperature
Maximum continuous +60degrees C, minimum -30degrees C
Brand
Legrand
Sub Brand
Pass & Seymour
12-Digit UPC
785007006223
Product UPC
78500700622
Depth
0.94 Inch
Height
4.06 Inch
Width
1.32 in
Certifications
CULUS
Electrical Rating
120/277 VAC, 16 A
Environmental Conditions
UL94 V2 Flammability
ECCN
EAR99
UNSPSC
39122232
Rated Voltage
120V
Mounting
Wall
Number Of Poles
1
AWG Range
14 - 10 AWG
Voltage Rating
120/277V
Ampere Rating
15A
Connection
12 And 14 AWG, Side Wired
