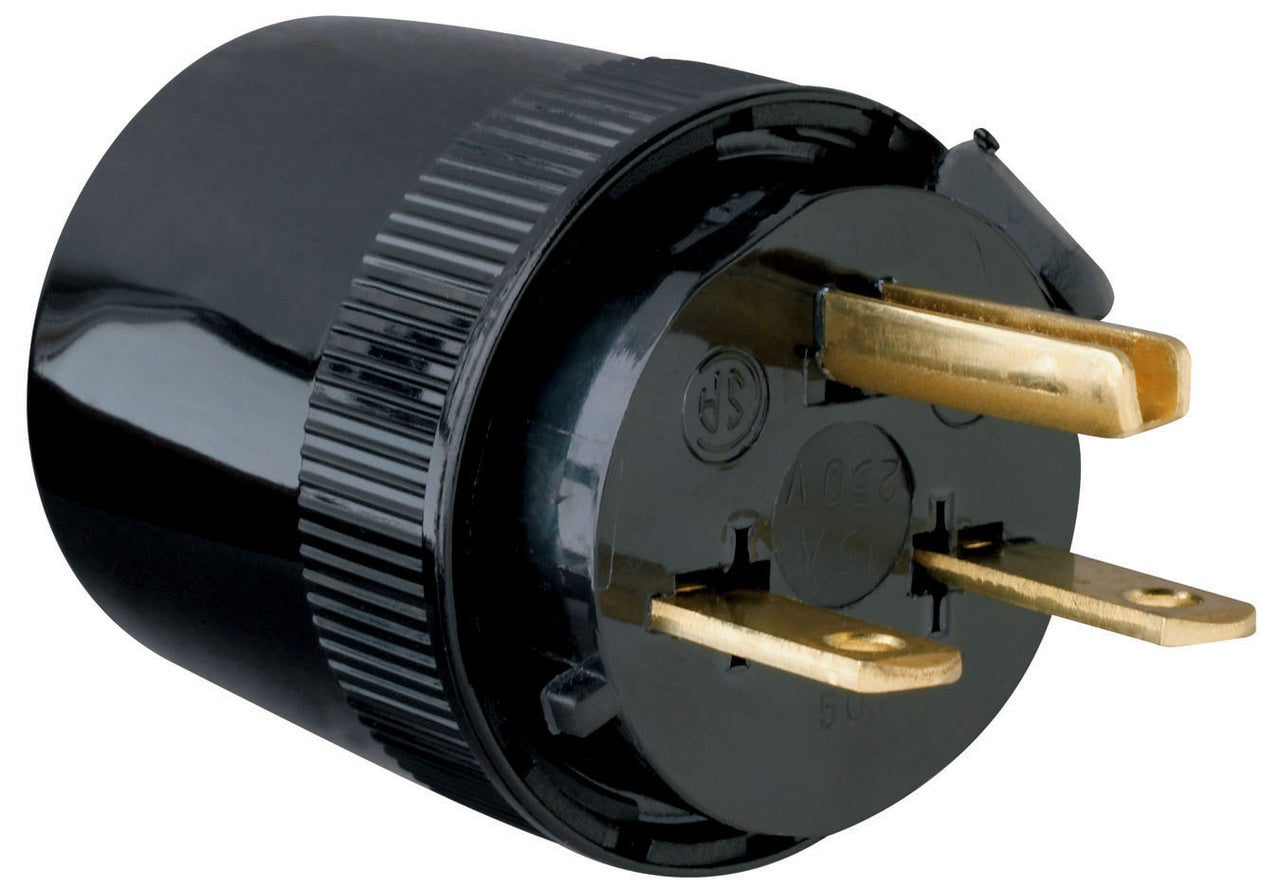

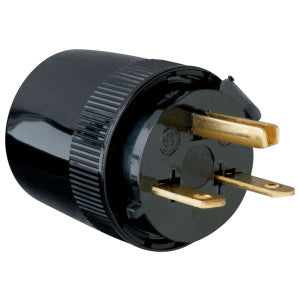

Legrand Pass & Seymour 5666-BK Str Bld Plug 3W 15A 250V Dead Front

Product Description

The LEGRAND PASS & SEYMOUR 5666-BK is a straight blade plug with a polarized design. Constructed from nylon, it offers chemical and impact resistance. Rated at 15A and 250 VAC, this medium-duty plug features a grounding type and accommodates cord sizes from 0.23 to 0.655 inches. It is suitable for commercial applications.

• Chemical and impact resistant nylon construction
• Polarized straight blade plug
• Rated for 15A and 250 VAC

Product Highlights

This medium-duty, grounding plug is ideal for commercial use, offering durability and easy installation with its turn and twist assembly.

Product Information

Standard Information

• Brand: LEGRAND PASS & SEYMOUR
• Manufacturer Part Number: 5666-BK
• Country of Origin: Mexico

Technical Specifications

• Type: Polarized
• Constructional Feature: Chemical Resistant, Impact Resistant
• Configuration: 6-15P
• Voltage Rating: 250 VAC
• Current Rating: 15 Ampere
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Grounding
• Cord Size: 0.23 to 0.655 Inch
• Material: Nylon
• Grade: Medium Duty
• Approval: UL 498, CSA C22.2
• Applicable Standard: NEMA WD1/WD6
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Features: Chemical Resistant, Dead Front
• UPC Number: 785007566604
• cULus ListingNumber: E146159
• cULus Listed: Yes
• Amperage: 15 A
• Flanged: No
• Connector Style: Straight Blade
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: 6-15P
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 250.0 V
• Conductor Size: 14-10 AWG
• Duty Rating: Medium Duty
• Wire Size: 10 AWG
• Brand: Legrand
• Sub Brand: Pass & Seymour
• 12-Digit UPC: 785007566604
• UNSPSC: 39121402
• Application: Commercial
• Amperage Rating: 15A
• AWG Range: 14 - 10 AWG
• Rated Voltage: 250V
• Color Family: Black
• Standard: CULUS, UL 498
