Legrand Pass & Seymour 4887-Y Connector 15A 125V

Product Description

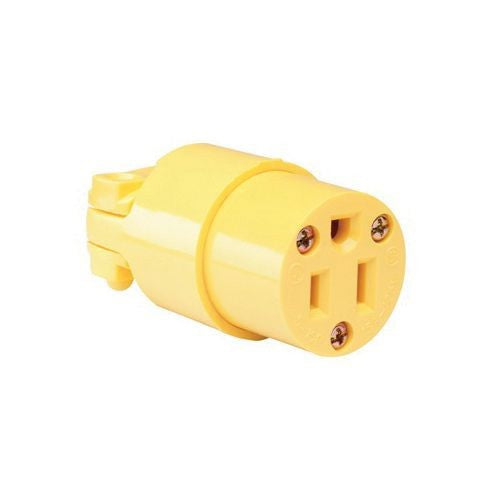

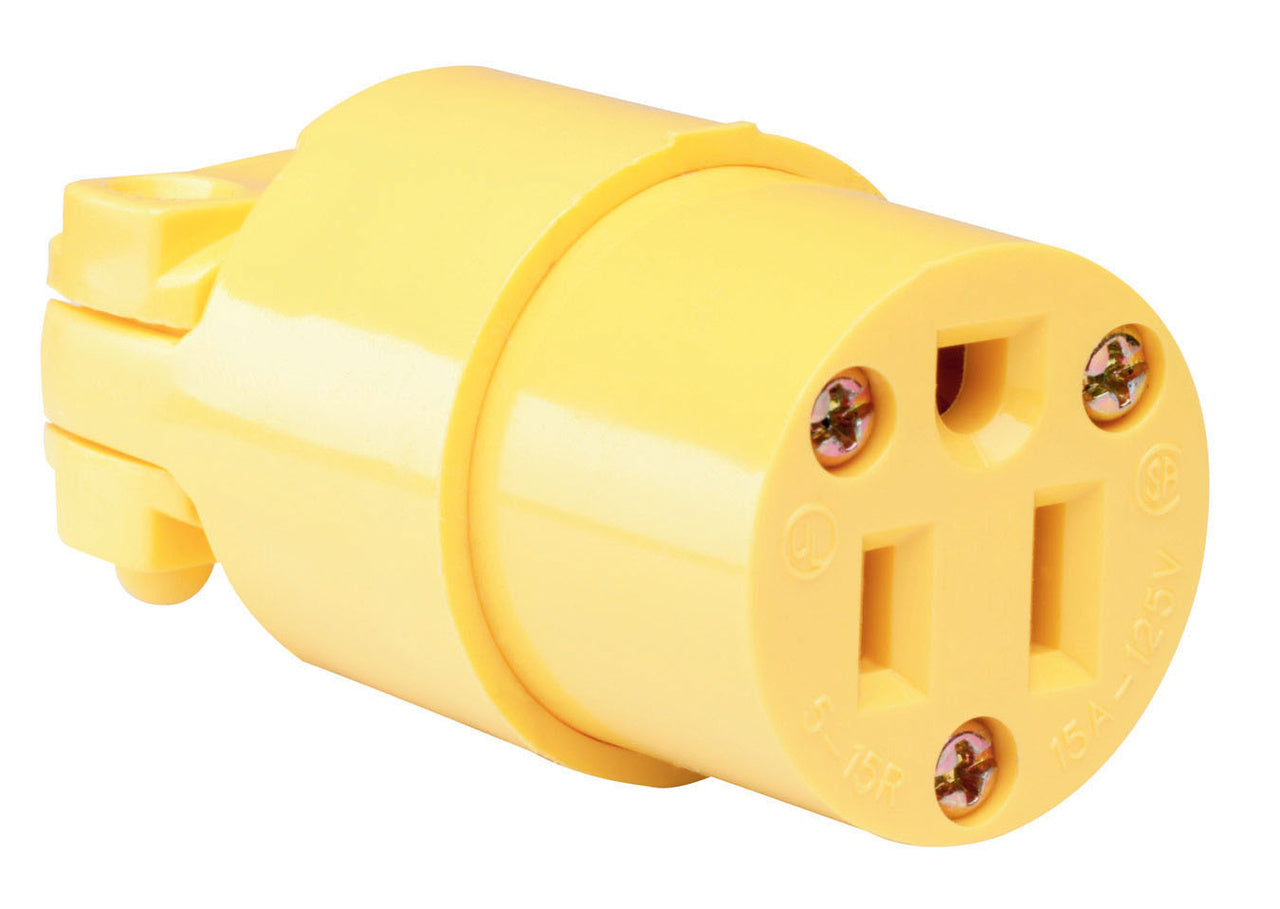

The LEGRAND PASS & SEYMOUR 4887-Y is a straight blade connector with a configuration of 5-15R. This connector has a voltage rating of 125V and a current rating of 15 Ampere. Constructed from nylon, it is suitable for commercial applications and is UL (Canada and US) approved.

• Constructed from nylon material.
• Features termination saddle clamps to securely capture stranded wires.
• Suitable for cords sized 0.25 to 0.6 inches.

Product Highlights

This medium-duty connector is ideal for creating high-visibility cords in commercial settings. It features a straight blade design and all-nylon construction.

Product Information

Standard Information

• Brand: LEGRAND PASS & SEYMOUR
• Manufacturer Part Number: 4887-Y
• Country of Origin: China

Technical Specifications

• Configuration: 5-15R
• Voltage Rating: 125 V
• Current Rating: 15 A
• Cord Size: 0.25 to 0.6 Inch
• Material: Nylon
• Approval: UL (Canada and US)
• Type: Connector
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: China
• Chemical Resistant: Yes
• Standard: UL 498
• UPC Number: 785007046045
• Product Width US: 1.563 in
• cULus Listed: Yes
• Flanged: No
• Connector Style: Straight Blade
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Terminal Accommodation: #14 AWG - #12 AWG
• Amperage: 15 Amp
• Grade: Commercial
• NEMA Rating: NEMA 5-15R
• Cord Diameter: 0.25 to 0.6 in
• Standard & Approvals: cULus Listed, RoHS Compliant
• Conductor Size: 14-12 AWG
• Duty Rating: Medium Duty
• NEMA: 5-15R
• Wire Size: 12 AWG
• Brand: Legrand
• Sub Brand: Pass & Seymour
• GTiN: 00785007046045
• Product UPC: 78500704604
• UNSPSC: 39121402
• Width: 1.563 in
• Certifications: CULUS
