Product Description

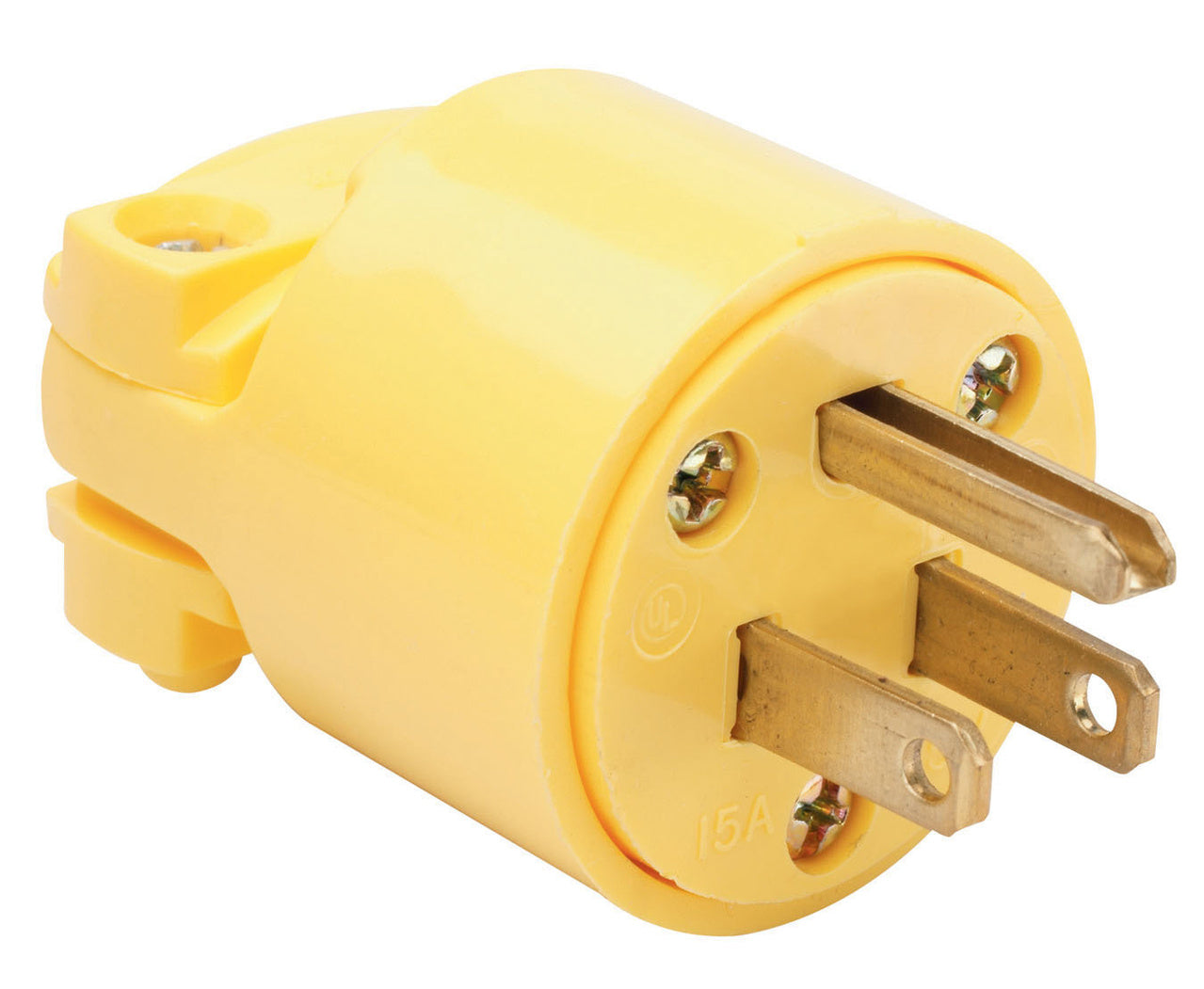

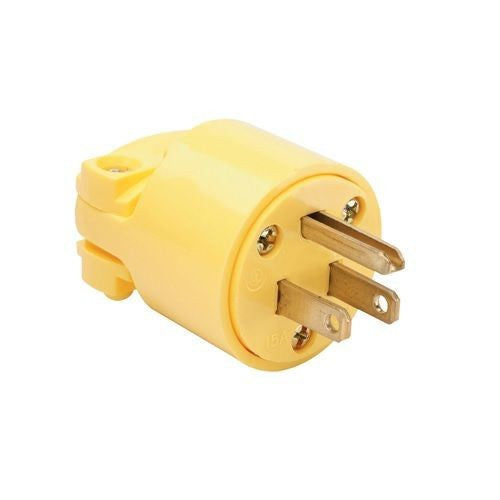

The LEGRAND PASS & SEYMOUR 4867-Y is a straight blade plug with a polarized configuration. Rated at 125V and 15A, this plug features a grounding design with 2 poles and 3 wires. Constructed from nylon, it is suitable for commercial, medium-duty applications and accepts cord sizes from 0.25 to 0.6 inches.
- Straight Blade Plug
- Polarized configuration
- UL (Canada and US) Approval
Product Highlights
This medium-duty plug is ideal for use in temporary power applications and demanding job sites. Its nylon construction offers impact and chemical resistance.
Product Information
Standard Information
-
Brand: LEGRAND PASS & SEYMOUR
-
Manufacturer Part Number: 4867-Y
-
Country of Origin: China
Technical Specifications
-
Type: Polarized
-
Configuration: 5-15P
-
Voltage Rating: 125 V
-
Current Rating: 15 Ampere
-
Number of Poles: 2
-
Number of Wires: 3
-
Ground Type: Grounding
-
Cord Size: 0.25 to 0.6 Inch
-
Material: Nylon
-
Grade: Commercial, Medium Duty
-
Approval: UL (Canada and US)
-
Applicable Standard: NEMA WD1/WD6
-
Application Sector: Industrial
-
Product Line: Pass & Seymour
-
Country Of Origin: China
-
Durable: Yes
-
Standard: UL498
-
UPC Number: 785007046038
-
Product Length US: 1.688 in
-
Product Width US: 1.563 in
-
cULus Listed: Yes
-
Amperage: 15 A
-
Flanged: No
-
Connector Style: Straight Blade
-
Indoor/Outdoor: Indoor
-
NEMA Configuration Code: 5-15P
-
Terminal Accommodation: #14 AWG - #10 AWG
-
Voltage: 125.0 V
-
Temperature Rating: -40 to 75 deg C
-
Amperage Rating: 15 A
-
Cord Diameter: 0.25 to 0.6 in
