Product Description

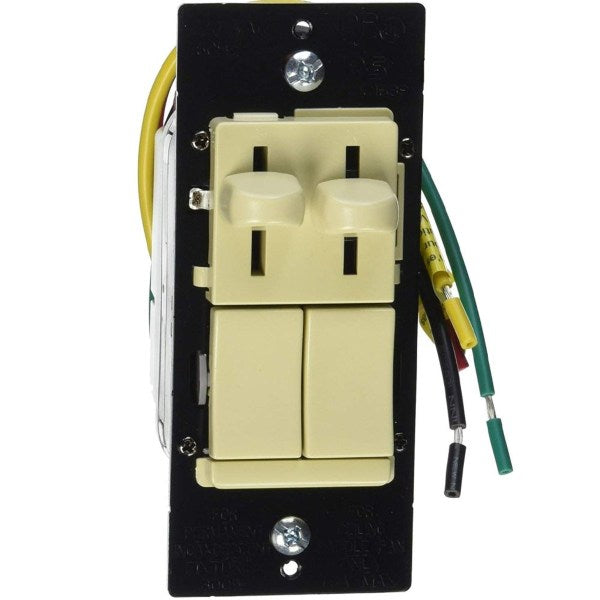

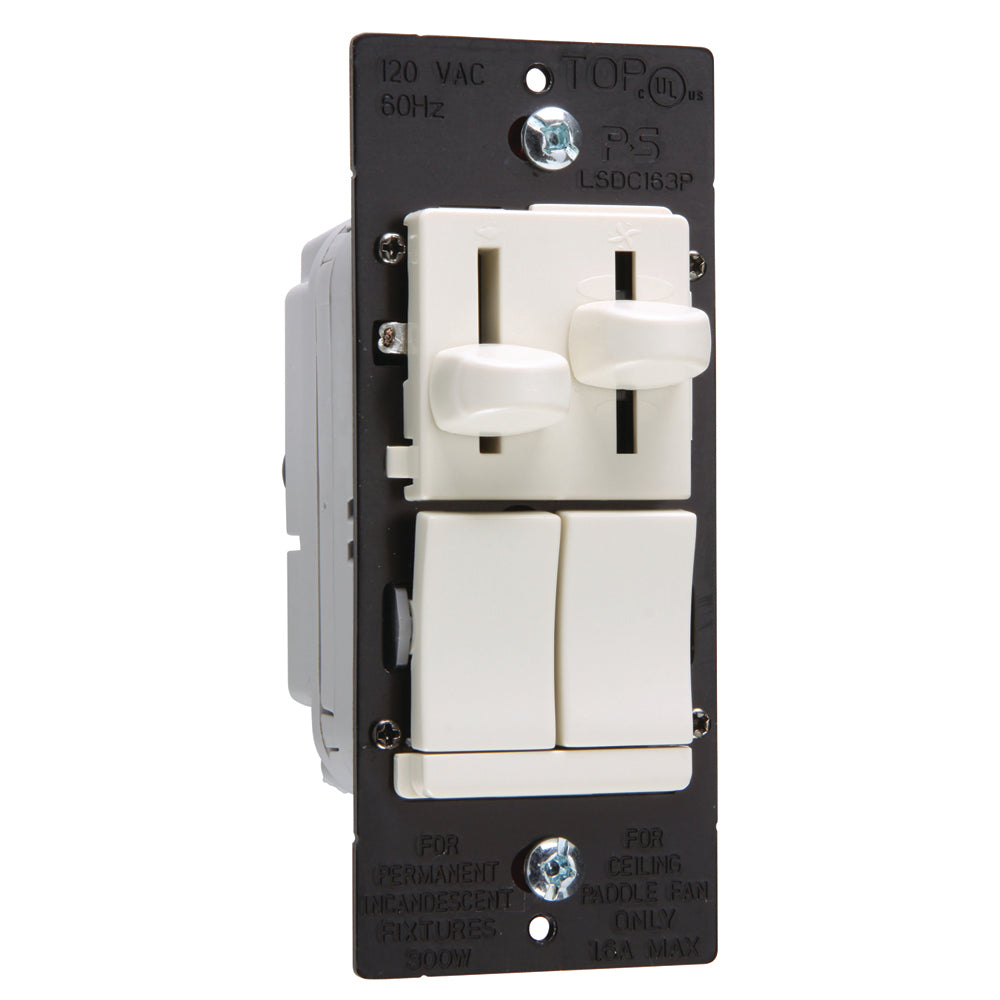

The LEGRAND LSDC163PLAV Pass & Seymour dual fan speed control and dimmer is a preset 3-speed/3-way de-hummer fan control with a 3-way 300W dimmer. Features a double slide and double off/on switch for easy operation. Designed for residential applications and is constructed with a tough, impact-resistant thermoplastic housing.
- cULus Listed
- Power failure memory
- Superior heat management, no time wasting break OFF tabs
Product Highlights
This combination dimmer and fan speed control is ideal for residential use. Features include power failure memory and superior heat management.
Product Information
Standard Information
-
Brand: LEGRAND
-
Manufacturer Part Number: LSDC163PLAV
-
Country of Origin: China
Technical Specifications
-
Type: Dimmer
-
Brand: Legrand
-
Voltage: 120 VAC
-
Wattage: 300 W
-
Actuator: Slide
-
Amperage: 1.6 A
-
Material: Thermoplastic
-
Sub Brand: Pass & Seymour
-
Applications: Residential
-
Certifications: CULUS
-
Number of Poles: Single Pole 3-Way
-
Size: 4.25"
-
Operational Mode: Slide
-
Poles: 1-Pole
-
Ways: 3-Way
-
Amperage Rating: 1.6 A
-
Application: Residential Applications
-
Mounting: Wall
-
Power Rating: 300 W
-
Series: LS Series
-
Standards/Approvals: cULus Listed|UL Listed
-
Number of Switches: 2
-
Switch Type: Dimmer Switch
-
Standard: UL Listed
-
Listing Agencies / 3rd Party Agencies: cULus Listed
-
Requires Neutral Wire: No
-
Wire Connection Type: Flying Leads
-
Dimming Compatibility: Forward Phase
-
Frequency Rating: 60 Hz
-
Indoor/Outdoor: Indoor
-
Load Rating: 120V 1.6A (FAN MOTOR), 120V 300W (Halogen), 120V 300W (Incandescent)
-
Load Type: Fan Motor, Incandescent
-
Mounting Type: Wall Box
-
Preset: Yes
-
Wire Size: #14 - #10 AWG
-
Current Rating: 1.6 Amps
-
Operating Voltage: 120 Volts
-
Item Length: 3.82
-
Item Height: 6.06
-
Item Width: 3.1
-
Input Voltage: 120V
-
Wattage Rating (W): 300
-
Amps: 1.6
-
Product Type: Fan Controls
-
Control Operation: Wired
-
Switch Control Type: Single Pole, 3-Way
-
Compatible Bulb Type: Incandescent
-
Finish: Gloss
-
Compatible Devices: Incandescent, Halogen, CFL, LED (except 0-10V LED drivers)
