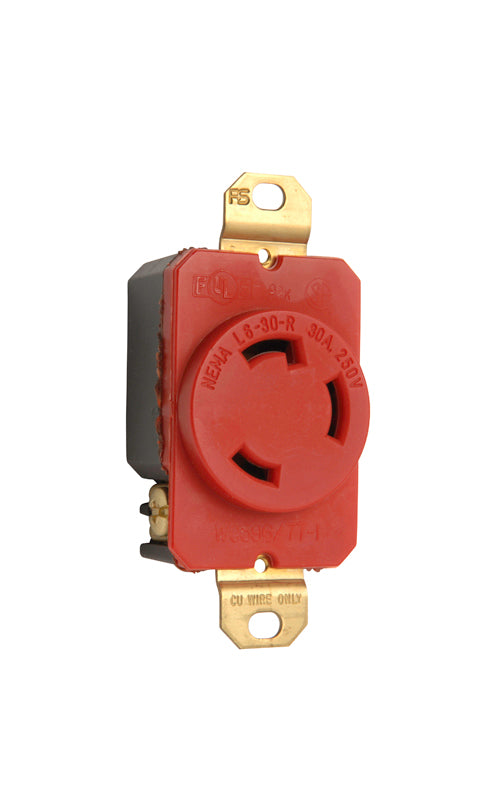

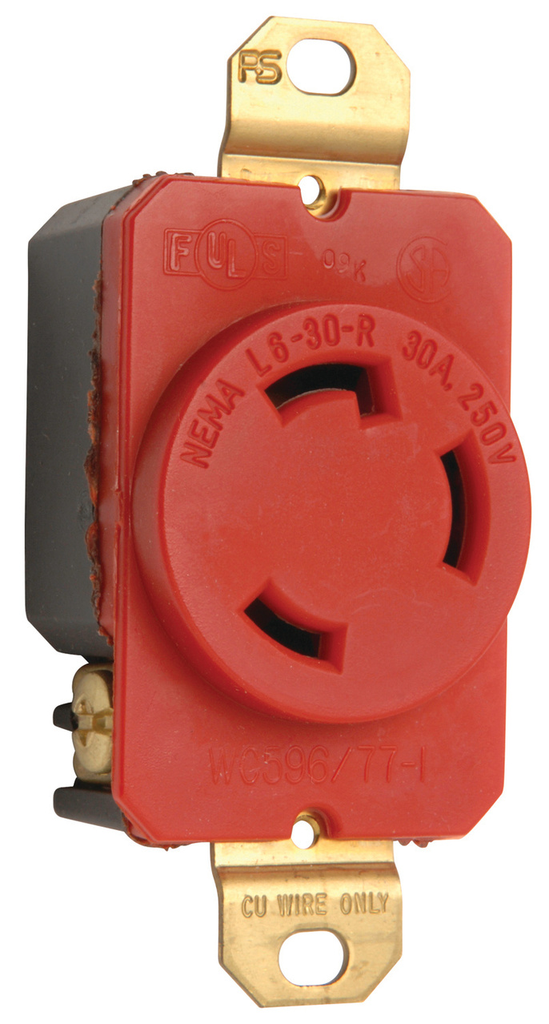

Legrand L630RR Turnlok Single Receptacle 30 Amp 250 Volt Replacement MPN

Product Description

Legrand L630RR is a turnlok single receptacle designed for use in commercial applications. It features a three-wire configuration with a voltage rating of 250 volts and an amperage rating of 30 amps. This receptacle's robust thermoplastic construction ensures resistance against impact and corrosion.

• Compact and impact-resistant design.
• Color-coded face for easy identification of voltage.
• Accepts wires ranging from fourteen to ten AWG.

Product Highlights

This receptacle is suitable for various commercial applications and is particularly useful in settings where reliable locking connections are necessary.

Product Information

Standard Information

• Catalog Number: L630RR
• Manufacturer: Pass & Seymour / Legrand

Technical Specifications

• Voltage Rating: 250 Volt
• Amperage Rating: 30 Amp
• Material: Thermoplastic
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: L6-30R
• Country of Origin: Mexico
• Wire Size Acceptance: 10-18 AWG
