Product Description

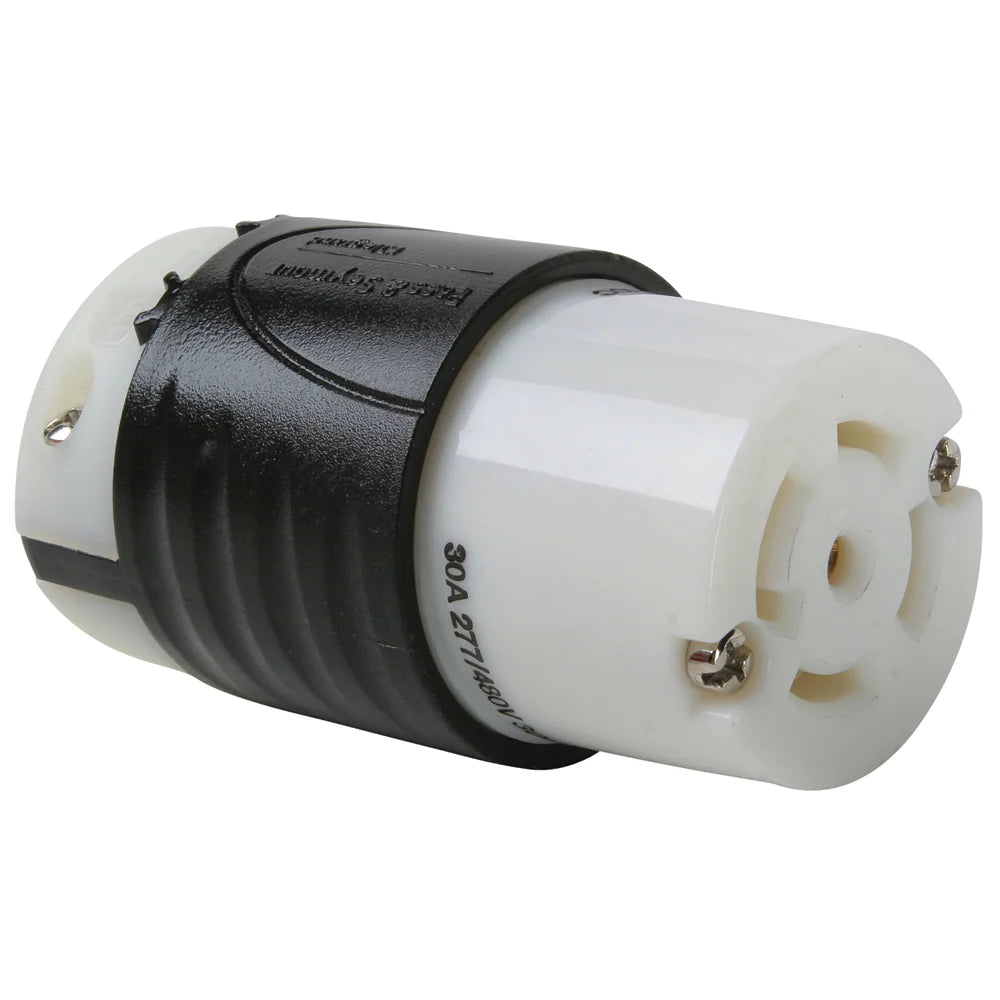

Legrand L2230C is a locking connector designed for commercial applications. It supports three-phase systems and operates at 277/480 VAC with a rating of 30 A. This connector is designed with four poles and five wires, meeting industrial standards for reliability and safety.
- 3-phase locking connector for secure connections
- Rated for up to 30 A and 10 hp
- Constructed from durable thermoplastic material
Product Highlights
Meets NEMA L22-30R standards, suitable for demanding environments.
Product Information
Standard Information
-
Manufacturer: Legrand
-
Product UPC: 78500722301
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 277/480 VAC
-
Horsepower: 10 hp
-
Cord Diameter: 0.39 to 1.15 in
-
Number of Poles: 4
-
Number of Wires: 5
-
Temperature Rating: -40 to 75 deg C
-
Enclosure Rating: IP20
-
Material: Thermoplastic
-
Standards/Approvals: CSA Certified, UL Listed
