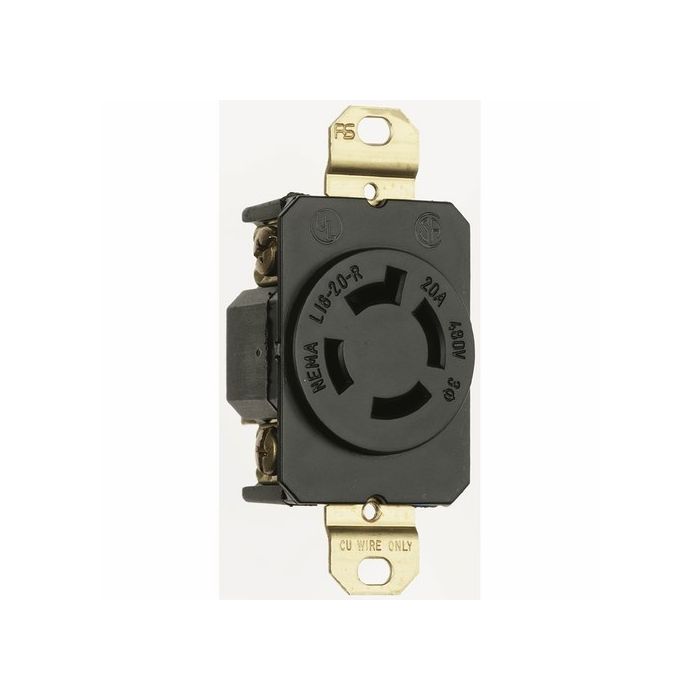

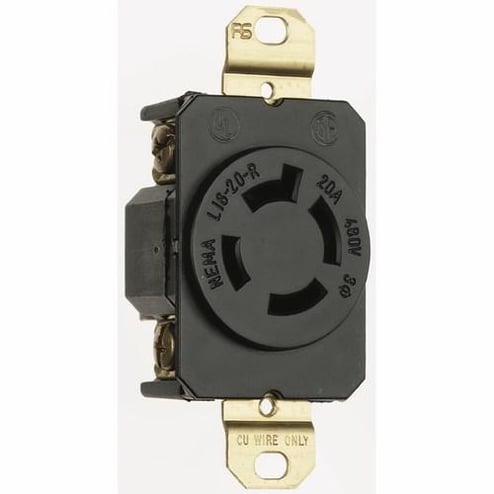

Legrand L1620-R Turnlok Single Receptacle 20A 480V NEMA L16-20R

Product Description

The LEGRAND L1620-R Turnlok single receptacle is designed for durability and high performance in commercial and industrial settings. Features a compact, impact-resistant nylon face and body ultrasonically welded for strength. Brass contacts ensure optimal conductivity and resist heat rise. It is a 20 amp, 480 volt receptacle with NEMA L16-20R configuration.

• Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
• .032 inch thick, brass, triple-wipe power contacts for lasting retention.
• One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.

Product Highlights

Durable and high-performance receptacle for commercial and industrial use. Features impact-resistant design and brass contacts for optimal conductivity.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: L1620-R
• Country of Origin: Mexico

Technical Specifications

• Color: Black
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Features: Brass Mounting Strap, Impact Resistant
• Wall Plate Included: No
• Number of Receptacles: 1
• Outlet Type: Locking
• Standard: UL 498
• UPC Number: 785007162059
• Product Depth US: 1.19 in
• Product Height US: 2.29 in
• Product Width US: 1.61 in
• cULus ListingNumber: 140596
• cULus Listed: Yes
• Product Environmental Profile: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: L16-20R
• Number of Poles: 2
• Number of Wires: 3
• Voltage: 480.0 V
• Wire Size: 14 - 10 AWG
• Amperage Rating: 20 A
• Applications: Industrial
• Grade: Industrial/Specification
• Material: Nylon
• Mounting Type: Flush
• NEMA: L16-20R
• Type: Single Receptacles
• Product UPC: 78500716205
• UNSPSC: 39121403
• Depth: 1.19 Inch
• Height: 2.29 Inch
• Length: 3.28 Inch
• Width: 1.61 in
• Certifications: CULUS
• Sub Brand: Turnlok
• GTiN: 00785007162059
• Voltage Rating: 480 VAC
• Horsepower: 5 hp
• NEMA Rating: L16-20R
• Temperature Rating: -40 to 75 deg C
• Application: Industrial Applications
• Catalog Description (MFR): Turnlok Registered Single Receptacle 4-Wire 20A 3-Phase 480V
• Indoor or Outdoor Use: Indoor
• Marketing Message (MFR): Turnlok Registered Single Receptacle 4-Wire 20A 3-Phase 480V
• Product Name: Locking Device Receptacle
• Special Features: Locking Device, impact resistant
• MPN: L1620-R
• Country of Origin: United States
• Condition: Used
