Legrand HT2302KWH In-Wall TV Power and Cable Management Kit 15A 125V (Fits 2x4 Wall)

Product Description

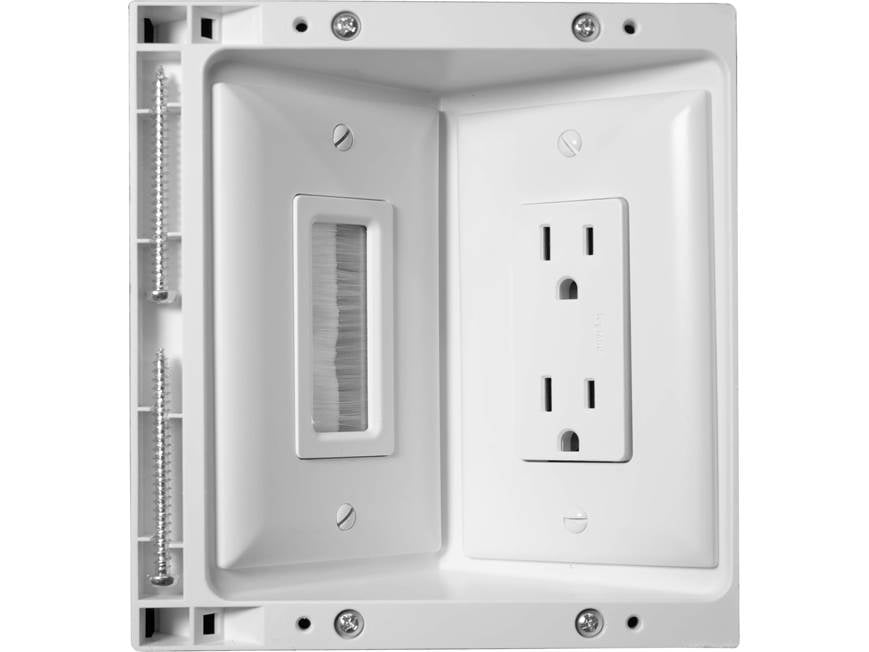

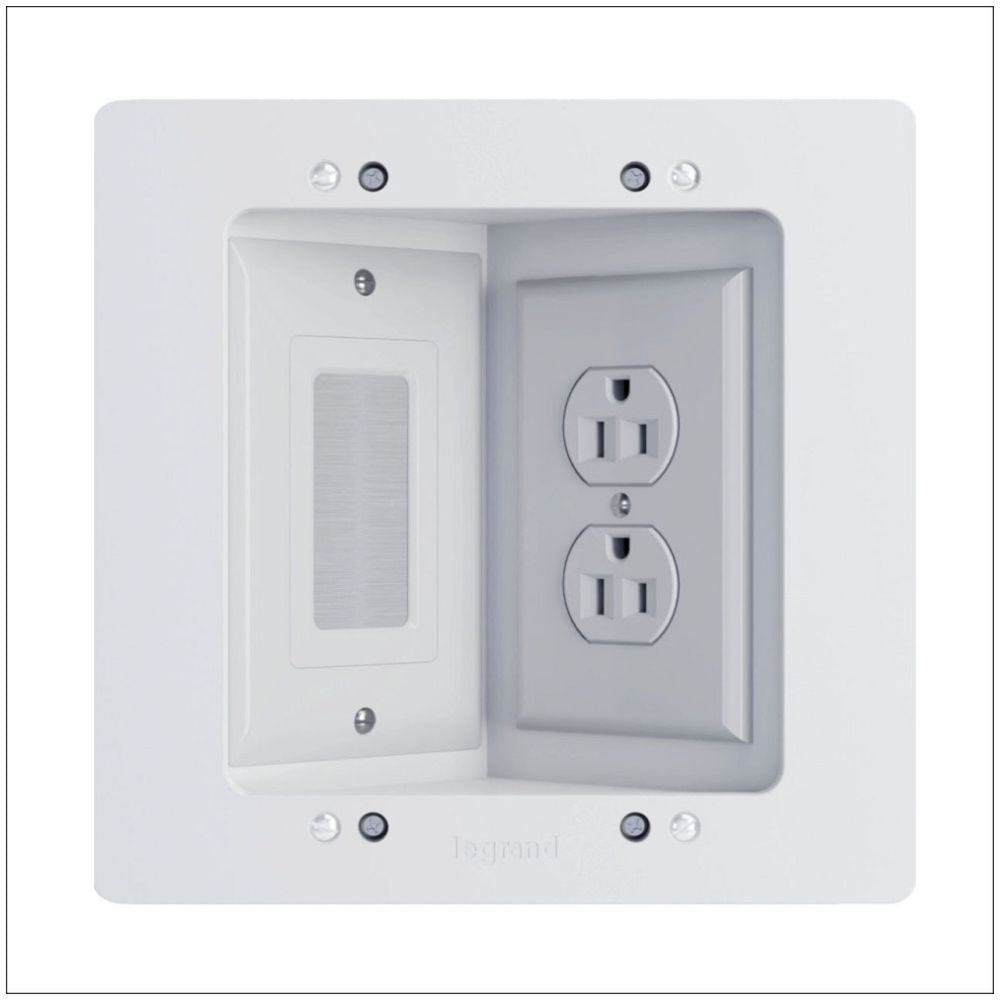

Legrand HT2302KWH is an in-wall power and cable management TV connection kit that combines a recessed connection box with a tamper-resistant 15A duplex outlet (125V) and Class 2 low-voltage support. The kit conceals power and A/V cables for a flush-mounted TV and includes a removable trim ring, 1-gang junction box, cable-access brush strap, wall plates, and mounting hardware. It supports stud mounting for new construction or retrofit installation with wing clamps and fits a standard 2x4 wall up to 1 inch thick.

• Tamper-resistant duplex outlet, 125V, 15A included for TV and accessory power
• Supports Class 2 low-voltage cables with concentric knockout rings for conduit or cable access
• Mounts to wall stud or secures to drywall with pre-installed wing clamps; fits standard 2x4 wall up to 1 inch thickness

Product Highlights

Recessed TV box with tamper-resistant outlet and low-voltage passthrough; includes trim ring, 1-gang junction box, brush plate, wall plates, and mounting hardware; UL listed.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: HT2302KWH
• Country of Origin: CN

Technical Specifications

• Brand: Legrand
• Manufacturer Part Number: HT2302KWH
• Product Name: In-Wall Power and Cable Management TV Connection Kit
• Type: In-wall TV power and cable management connection kit
• Outlet Rating: Tamper-resistant duplex outlet, 125V, 15A
• Low-Voltage Support: Class 2 low-voltage with concentric knockout rings for conduit or cable access
• Installation: New construction (stud-mount) or retrofit (pre-installed wing clamps and drywall clips)
• Wall Compatibility: Fits standard 2x4 wall; supports wall thickness up to 1 inch
• Includes: Recessed TV box, removable trim ring, 1-gang old-work junction box, tamper-resistant outlet, cable access brush strap, wall plates, cutting template, installation hardware, screws
• Listing / Certifications: UL listed
• Material: Plastic
• Dimensions (H x W x D): 8.7 x 8.37 x 3.8 inches
• Weight: 1.12 lb
• Country of Origin: China
• UPC: 804428435099
• Sub Brand: On-Q
