Legrand G3000CE 3000 Series Steel Raceway Cover 600V (60 in)

Product Description

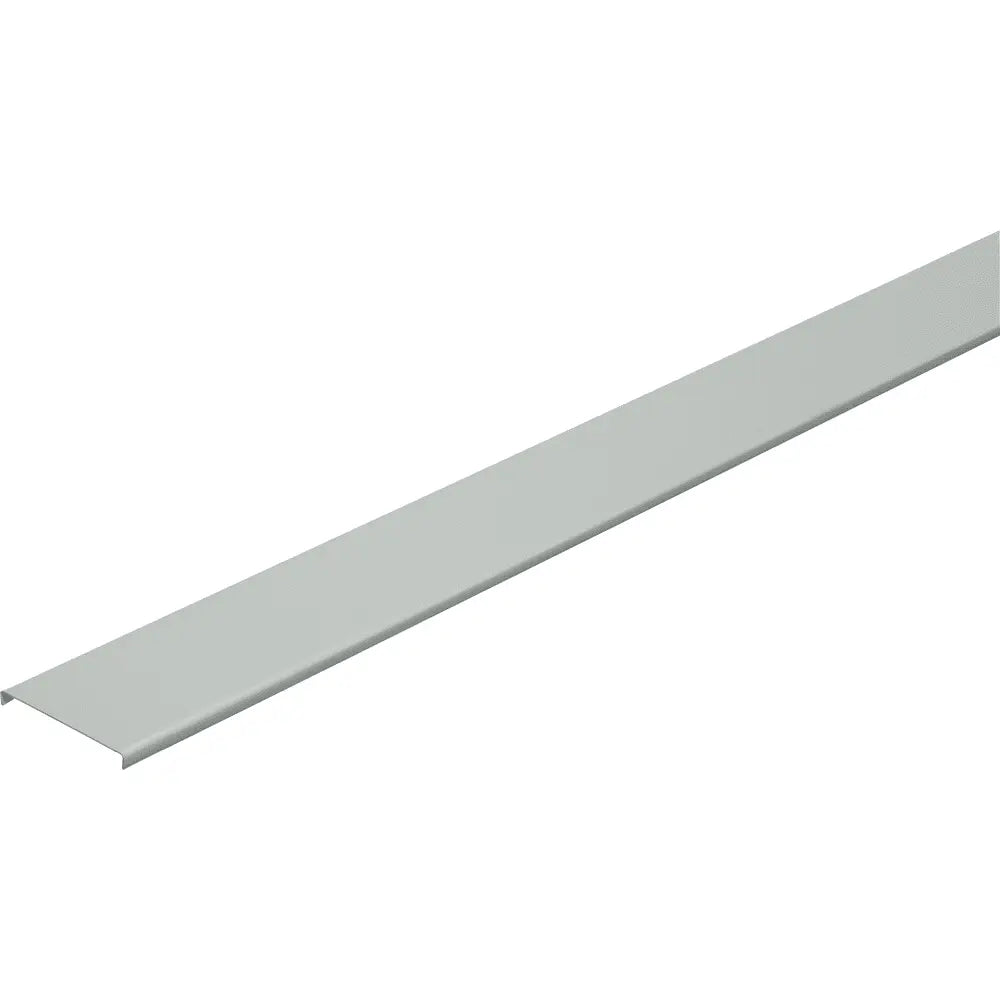

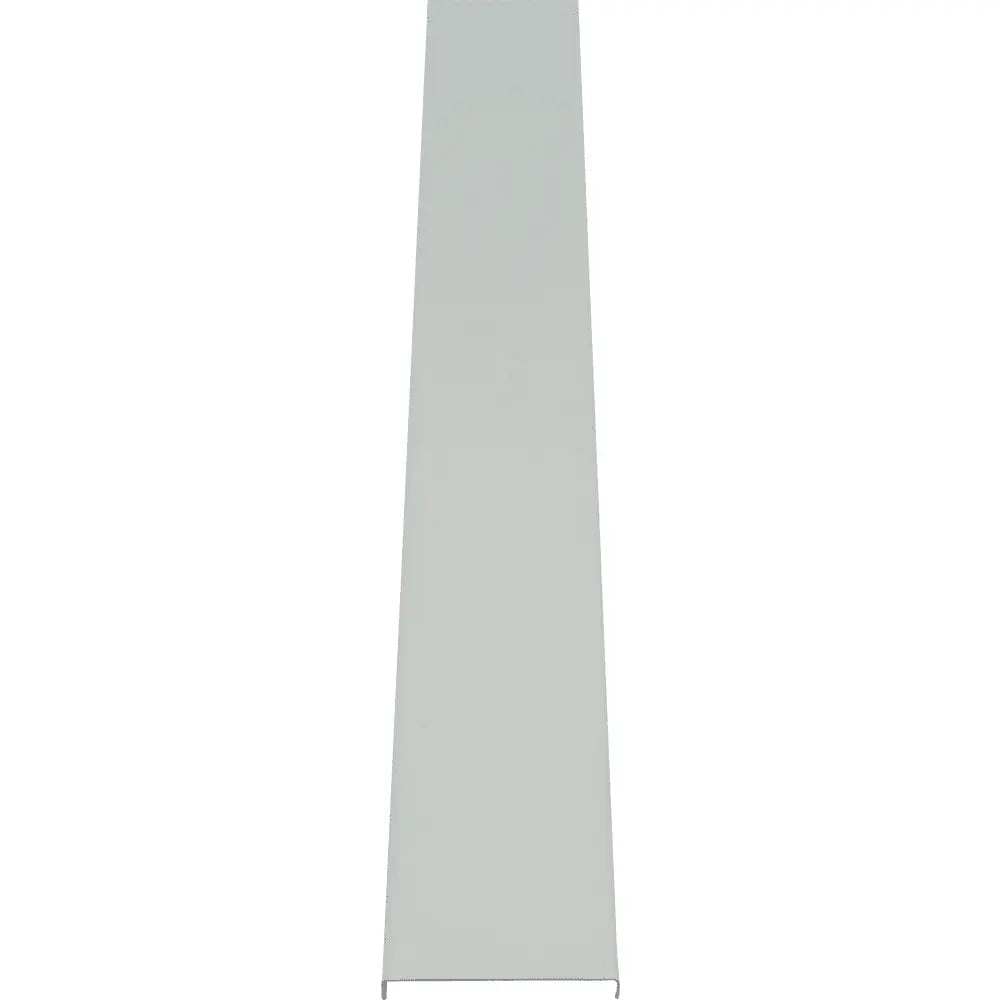

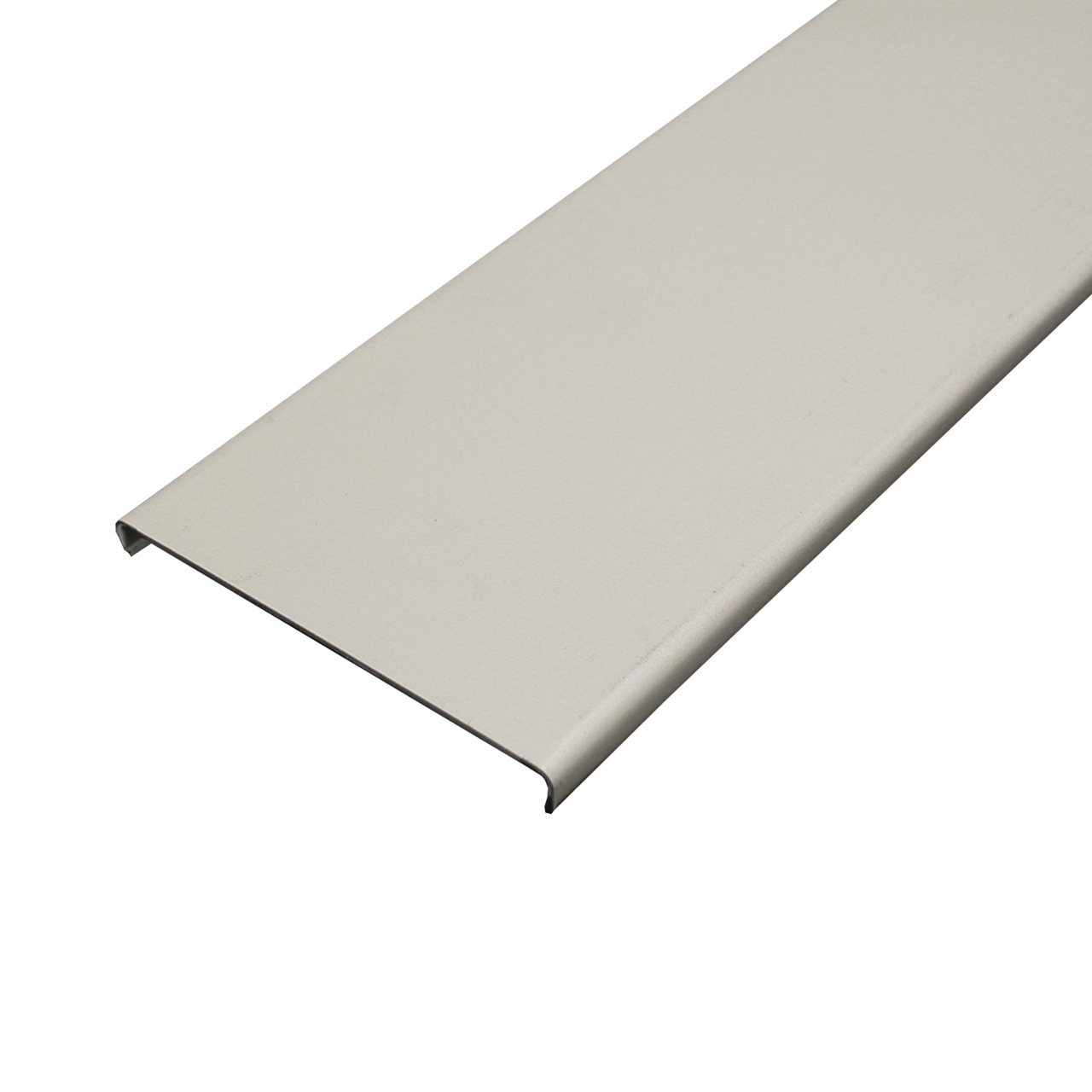

Legrand G3000CE is a steel raceway cover for the 3000 Series that provides surface-mounted wiring access for power, data, and A/V cables. The cover measures 60 in long x 2-3/4 in wide x 1/4 in high and features a snap-on/latching design for removable access. It is suitable for commercial and office surface-mount applications and carries a 600 VAC rating with cULus, PEP, and RoHS listings.

• Steel construction, snap-on/latching cover; fits Legrand 3000 Series raceways.
• Dimensions: 60 in length; 2-3/4 in width; 1/4 in height; thickness 0.04 in; suitable for 2-3/4 in x 1-1/2 in raceway.
• 600 VAC voltage rating; standards include cULus Listed (File E4376), PEP, RoHS, UL5 and ADA compliance; wall/surface mountable.

Product Highlights

Steel snap-on raceway cover for Legrand 3000 Series; 60 in x 2-3/4 in x 1/4 in; 600 VAC; cULus/PEP/RoHS; surface mount.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: G3000CE
• Country of Origin: United States

Technical Specifications

• Brand: Legrand
• Manufacturer Part Number: G3000CE
• Product Type: Raceway cover
• Series: 3000 Series
• Material: Steel
• Finish: Enamel painted / unfinished (sources list enamel painted gray/ivory and unfinished)
• Cover Type: Snap-on; Latching
• Number of Channels: 1 or 2
• Length: 60 in (5 ft)
• Width: 2-3/4 in
• Height: 1/4 in
• Thickness: 0.04 in
• For Raceway Width: 2-3/4 in
• For Raceway Height: 1-1/2 in
• Voltage Rating: 600 VAC
• Mounting Type: Wall / Surface mount (walls, modular furniture, under raised floors, over ceiling)
• Suitable For Use With: 3000 Series Raceway
• Standards/Certifications: cULus Listed (File E4376: Guide RJBT/RJBT7), PEP, RoHS, UL5, ADA compliant; additional listings referenced (cULus E4376/E41751 Guide RJBT/RJPR, NEC 386); CSA referenced in product family
• Application: Commercial and office surface-mount wiring for power, communication, and A/V cables
• Weight (each/unit): 0.39 lb
• UPC: 0786776088649
• GTIN: 00786776088649
• Manufacturer: Legrand
