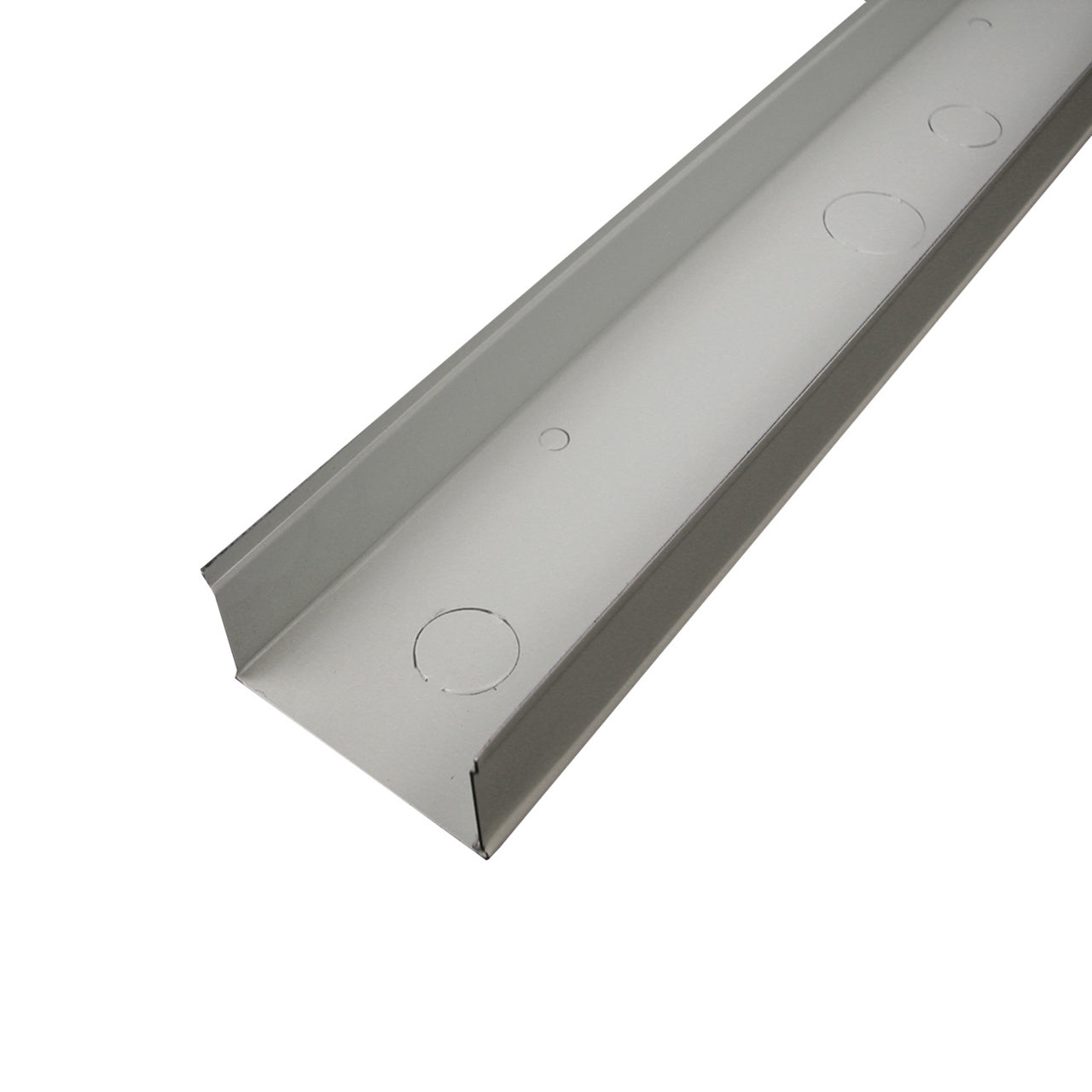

Legrand G3000B Wiremold 3000 Series Raceway Base 10ft

Product Description

The LEGRAND G3000B Wiremold 3000 Series Steel Raceway provides wiring capacities for small to medium size installations. Power or data/communication devices can be wired into the raceway for a flush appearance satisfying both aesthetic and functional requirements. The 3000 Series Steel Raceway is ideally suited for wiring applications.

• Base - 0.040" steel, Packed 100 ft. per carton, ten 10 ft. (3.05m) lengths.
• Mounts easily on walls, modular furniture, under raised floors or over ceiling, speeds installation
• Provides wiring capacities for small to medium size installations

Product Highlights

The Wiremold raceway systems are attractive, cost-effective solutions for bringing electrical, communication and A/V cables and wires wherever they're needed, in virtually any type of room.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: G3000B
• Country of Origin: United States

Technical Specifications

• Color: Gray
• Product Series: 3000 Series
• Type: Raceway Base
• Material: Steel
• Application Sector: Commercial
• Product Line: Wiremold
• Country Of Origin: United States
• Installation Location: On Wall
• Standard: cULus Listed Surface Metal Raceway: File E4376: Guide RJBT/RJBT7
• UPC Number: 786776080261
• Product Depth US: 1.5 in
• Product Height US: 2.75 in
• Product Volume US: 495.54 cu in
• Product Width US: 120.13 in
• Product Weight US: 0.719 lb
• cULus ListingNumber: E4376
• cULus Listed: Yes
• USMCA: Yes
• Product Environmental Profile: Yes
• RoHS Compliant: Yes
• Indoor/Outdoor: Indoor
• Is Pre-Wired: No
• Number of Channels: 1
• Applications: Commercial, Office
• Component Type: Raceway Base & Cover
• Voltage: 600 Volt
• Brand: Wiremold
• Sub Brand: Wiremold
• Product UPC: 78677608026
• Depth: 1-1/2 Inch
• Height: 2-3/4 Inch
• Length: 10 Foot
• Outside Diameter: 2 3/4" x 1 15/32"
• Width: 120.13 in
• Certifications: CULUS,NAFTA,ROHS
• Country of Origin: USA
• USMCA Compliant: cULus Listed
• ECCN: EAR99
• UNSPSC: 39131709
• Series: 3000 Series
• Mounting Type: Wall
• Voltage Rating: 600 VAC
• Thickness: 0.04 in
