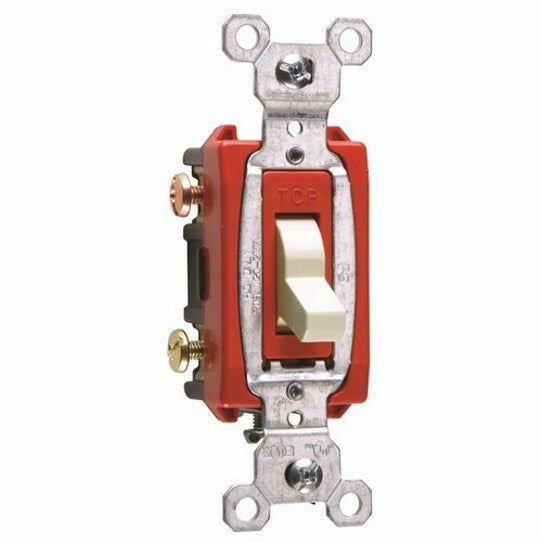

Legrand CS20AC3-LA Commercial Specification Grade Switch 20A

Product Description

The LEGRAND CS20AC3-LA is a commercial 3-Way switch with side wiring, rated at 20A 120/277V. These switches provide excellent value while adhering to federal specification standards. Features include external screw-pressure-plate back wiring for swift installation and robust electrical connections, with a rugged build designed to withstand heavy use.

• One-piece brass alloy contact arm for reliable electrical performance.
• One-piece steel strap with integral ground is plated for corrosion resistance.
• High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.

Product Highlights

This commercial grade switch is ideal for commercial and industrial applications. It features side wiring, a heavy-duty toggle, and meets federal specification standards.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: CS20AC3-LA
• Country of Origin: Mexico

Technical Specifications

• Color: Light Almond
• Type: Switch
• Material: Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Toggle
• Standard: UL Listed E140597, Standard UL20, FedSpec WS896, Flammability Rating UL94 V2, FEDSPEC
• UPC Number: 785007126549
• Product Depth US: 1.073 in
• Product Height US: 3.281 in
• Product Width US: 1.32 in
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Seismic Tested: No
• Wire Connection Type: Screw Terminals
• Contact Configuration: One piece brass alloy contact arm
• Contact Rating: 20Amp, 120/277Vac
• Degree of Protection: 1500V Dielectric Withstand Voltage
• Indoor/Outdoor: Indoor
• Load Rating: 20 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: 3-Way
• Horsepower Rating: 1 HP @ 120 VAC, 2 HP @ 240 VAC
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 VAC, 277 VAC
• ECCN: EAR99
• UNSPSC: 39122211
• Application: Commercial
• Connection Type: Wired
• Mounting: Wall
• Amperage Rating: 20A
• AWG Range: 14 - 10 AWG
• Rated Voltage: 120/277V
• Switch Style: Toggle
• Color Family: Tan
• Height: 3.281 in.
• Depth: 1.073 in.
• Width: 1.32 in.
• Catalog Number: CS20AC3LA
• Manufacturer: Legrand-Pass & Seymour
• Brand: Legrand-Pass & Seymour
• Made in USA: No
• Action: Three pole
• Actuator: Toggle switch
• Enclosure: Nylon
• Insulation: Bare
• Special Features: Side wire, locking support, heavy duty toggle
• Size: 3.3 in
• Voltage Rating: 120/277
• Condition: New
• Model: cs 20 ac 3 la
• PartNumber: cs 20 ac 3 la
• Category: Business & Industrial
