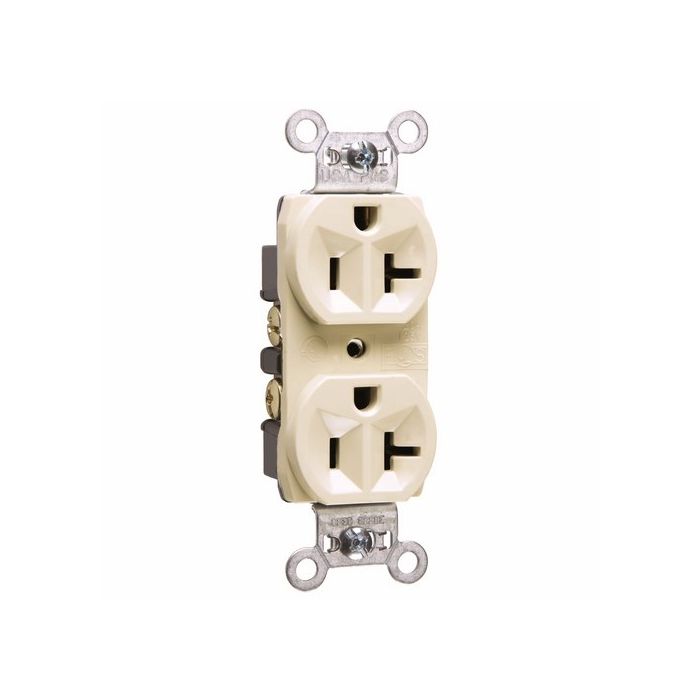

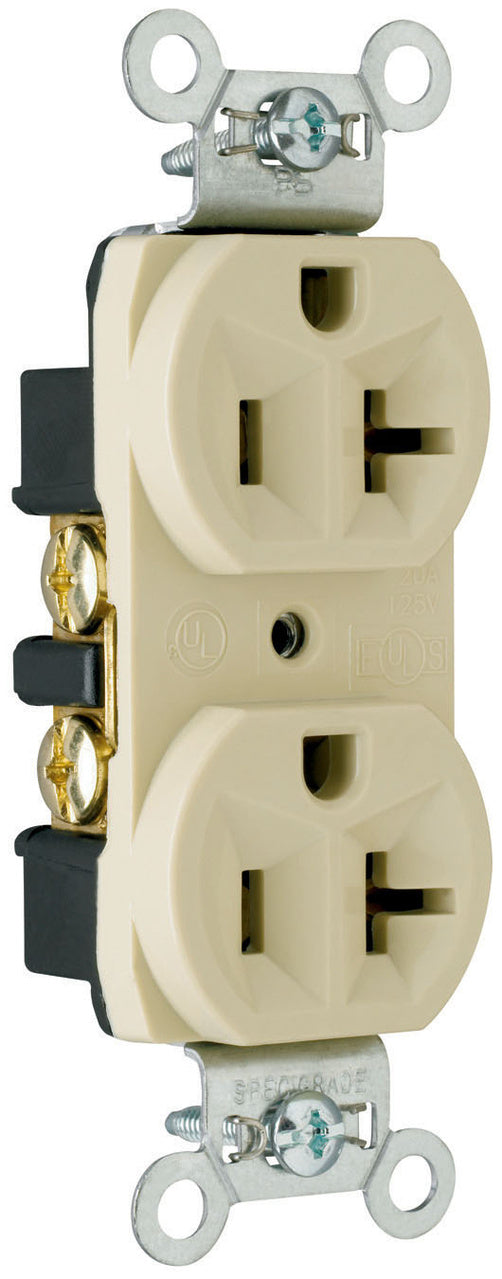

Legrand CRB5362-LA Duplex Receptacle 20A 125V

Product Description

The LEGRAND CRB5362-LA is a Pass & Seymour® construction spec grade duplex receptacle. Rated for 20A and 125V, this receptacle features back and side wire connections. It is suitable for commercial applications.

• Corrosion-resistant, plated steel strap locked in to face and back body.
• Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.

Product Highlights

This receptacle features a durable nylon face and thermoplastic back body, with isolated terminal compartments for positive conductor containment.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: CRB5362-LA
• Country of Origin: Mexico

Technical Specifications

• Color: Light Almond
• Finish: Matte
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: Straight Blade
• Standard: UL 498, FEDSPEC
• UPC Number: 785007210248
• Product Depth US: 0.78 in
• Product Height US: 2.635 in
• Product Width US: 1.322 in
• cULus ListingNumber: E140596
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Wire Connection Type: Internal Pressure Plates, Screw Terminals
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Operating Temperature: -40
• Voltage: 125 V
