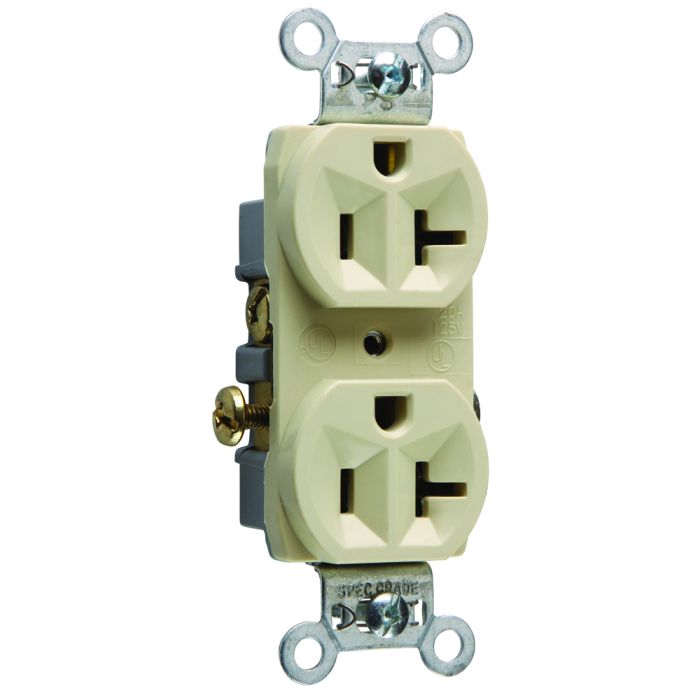

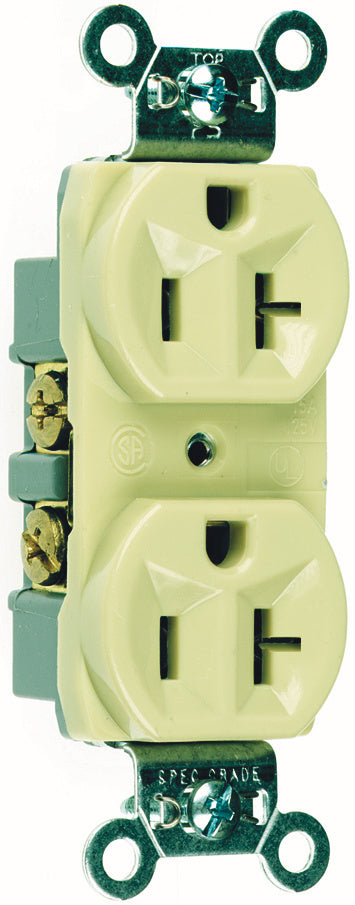

Legrand CR20-I Duplex Receptacle 125V 20A

Product Description

The LEGRAND CR20-I is a commercial spec grade duplex receptacle with side wire connection, rated for 20A and 125V. It features a corrosion-resistant, plated steel strap locked into the face and back body. Designed for commercial or residential applications. Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.

• Corrosion-resistant, plated steel strap
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
• Impact-resistant nylon face and thermoplastic back body

Product Highlights

This duplex receptacle is ideal for commercial and residential applications requiring a durable and reliable power connection.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: CR20-I
• Country of Origin: Mexico

Technical Specifications

• Color: Ivory
• Finish: Matte
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Impact Resistant, Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: Straight Blade
• Standard: UL 498
• UPC Number: 785007119169
• Product Depth US: 0.78 in
• Product Height US: 2.635 in
• Product Width US: 1.322 in
• cULus ListingNumber: E140596
• cULus Listed: Yes
• Product Environmental Profile: Yes
• Amperage: 20 A
• Connection Location: Side Only
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Mounting Type: Box
• NEMA Configuration Code: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Operating Temperature: -40 00b0-60 00b0C
• Operating Temperature Max: 60 00b0C
• Operating Temperature Min: -40 00b0C
• Voltage: 125.0 V
• Wire Size: 14 - 10 AWG
• Manufacturer: Legrand
• Voltage Rating: 125 VAC
• Horsepower: 1 hp
• NEMA Rating: NEMA 5-20R
• Grade: Commercial/Residential
• Terminal Type: Side Wire
• Material: Thermoplastic
• Applications: Commercial,Residential
• Capacity: Duplex
• Connection Type: Wire Ground, Side Wire
• Type: Receptacles
• AWG Range: 14 - 10 AWG
• Ground: Grounding
• Rated Voltage: 125V
• Color Family: Ivory
• Height: 2.635 in.
• Depth: 0.78 in.
• Width: 1.322 in.
