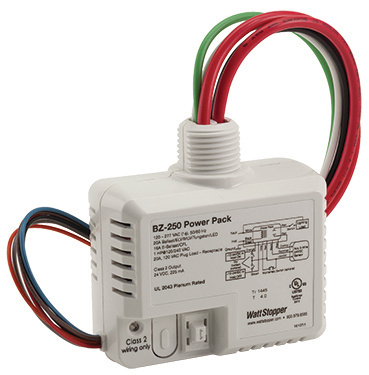

Legrand BZ250 Wattstopper BZ-250 Lighting and Plug Load Flex Control Power Pack

Product Description

The Legrand BZ250 is a power pack designed to control lighting and plug loads. It operates using low voltage control inputs and can deliver up to 225 mA at 24 VDC, specifically to power Wattstopper occupancy sensors. This unit is capable of manual ON sequences, as well as hold-on, hold-off, and load shed applications when integrated with lighting control panels or building automation systems.

• RoHS compliant, using eco-friendly materials.
• Mechanically held latching relay with selectable power loss operation.
• Designed for use in HVAC and lighting control circuits.

Product Highlights

This power pack is essential for efficient lighting control and automation in commercial and industrial applications. Its design supports both automatic and manual operation, ensuring compliance with lighting standards.

Product Information

Standard Information

• Brand: Legrand
• Manufacturer Part Number: BZ250

Technical Specifications

• Input Voltage: 120/277 VAC
• Output Voltage: 24 VDC
• Amperage Rating: 20 A
• Relay Rating: 225 mA
• Frequency Rating: 50/60 Hz
• Operating Temperature: -4 to 131 degrees F
• Width: 3 inches
• Depth: 2.4 inches
• Height: 1.5 inches
• Material: Plastic
• Humidity: 5 to 95%
• Standards/Approvals: UL, cUL Listed
