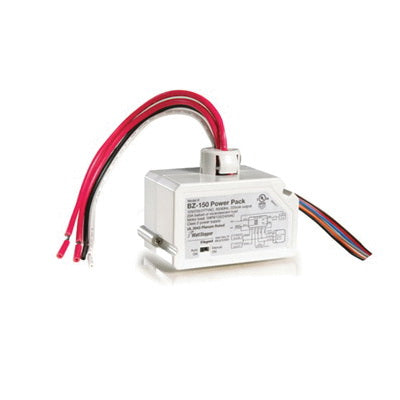

Legrand BZ150 BZ-150 WattStop 24VDC Univ Volt Pwr Pck

Product Description

Legrand, BZ150, is a universal voltage power pack that operates at one-phase. This model supplies twenty-four VDC voltage to various WattStopper low voltage occupancy sensors. It features a power rating of one horsepower and can operate on 120 or 277 VAC input. This power pack is essential for energy-efficient lighting control in commercial spaces.

• Universal voltage operation at 120/277 VAC
• Outputs twenty-four VDC and supports up to twenty amperes
• UL 2043 plenum rated for safety and compliance

Product Highlights

This device supports hold ON/OFF control input and offers reliable operation within a wide temperature range from zero to fifty-five degrees Celsius.

Product Information

Standard Information

• Manufacturer: Legrand
• Manufacturer Part Number: BZ150

Technical Specifications

• Power Rating: 1 hp
• Input Voltage: 120/277 VAC
• Output Voltage: 24 VDC
• Amperage Rating: 20 A
• Frequency Rating: 50/60 Hz
• Relay Rating: 225 mA
• Operating Temperature: 0 to 55 deg C
• Material: Plastic
• Width: 2-3/4 in
• Depth: 1.6 in
• Height: 1.6 in
• Series: BZ-150
• Application: Low Voltage Applications
• Standards/Approvals: UL 2043, cUL Listed, UL 94 V-0 Flammability Rating, ECCN EAR99
