Legrand ARTRUSB156ACW4 adorne duplex tamper-resistant 15a 125v

Product Description

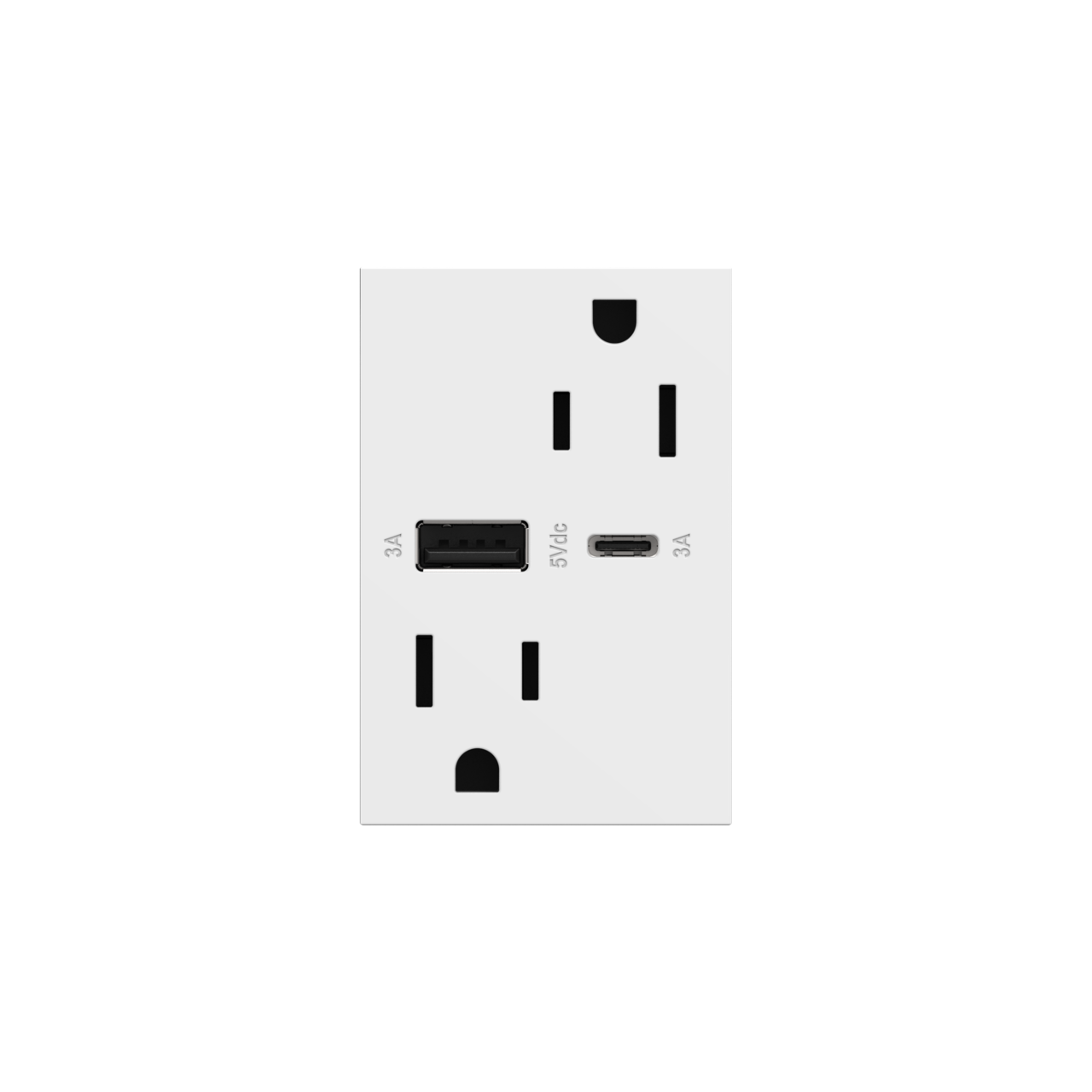

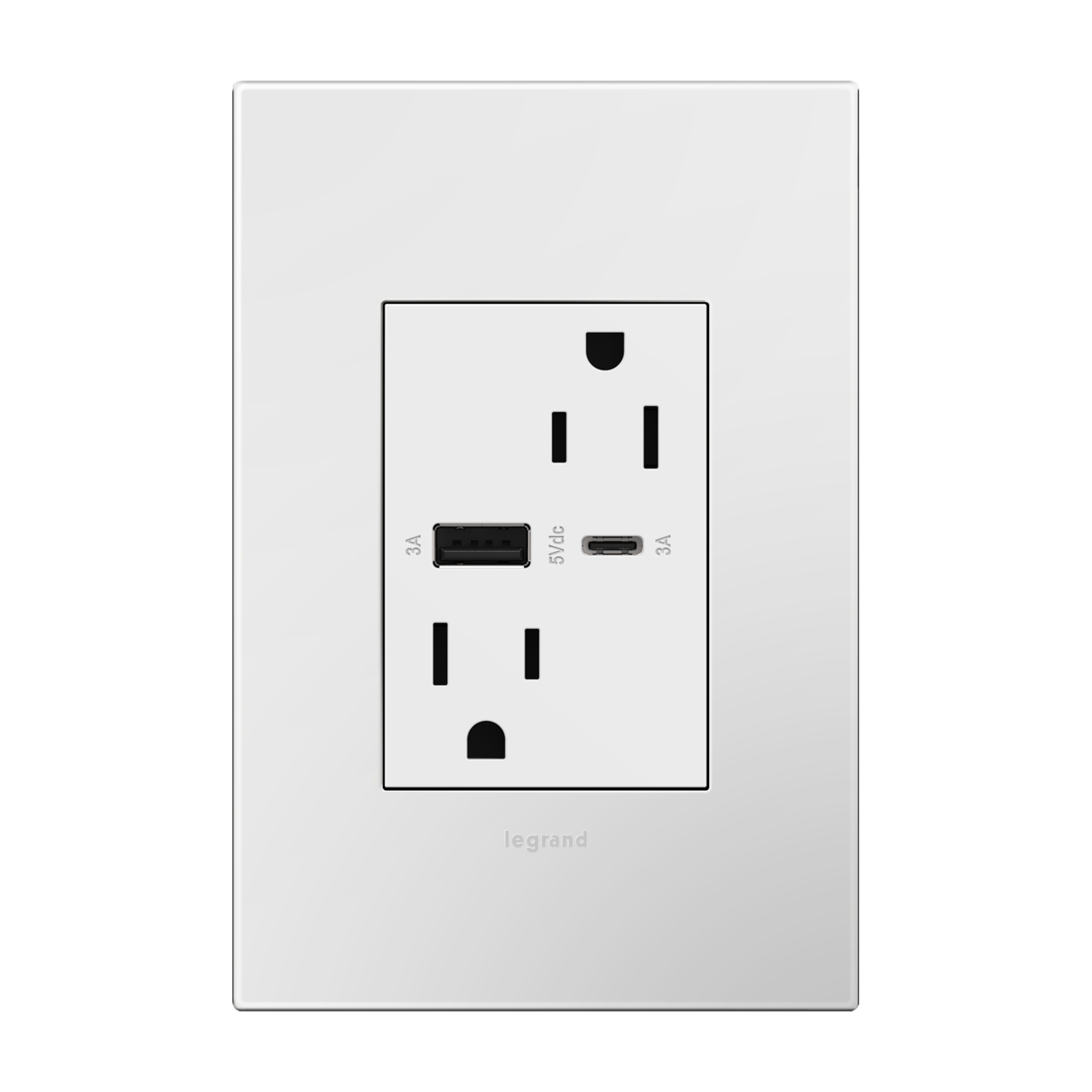

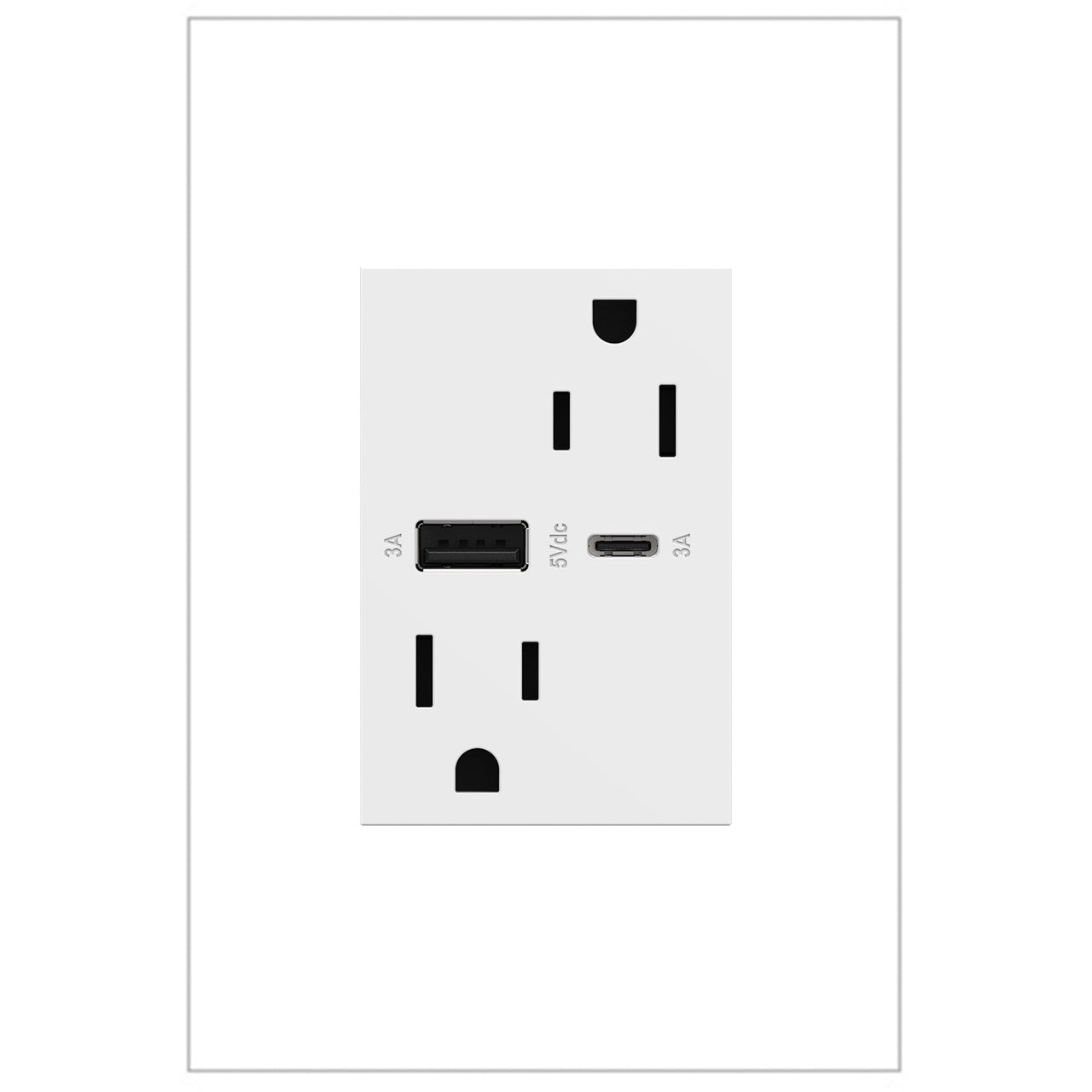

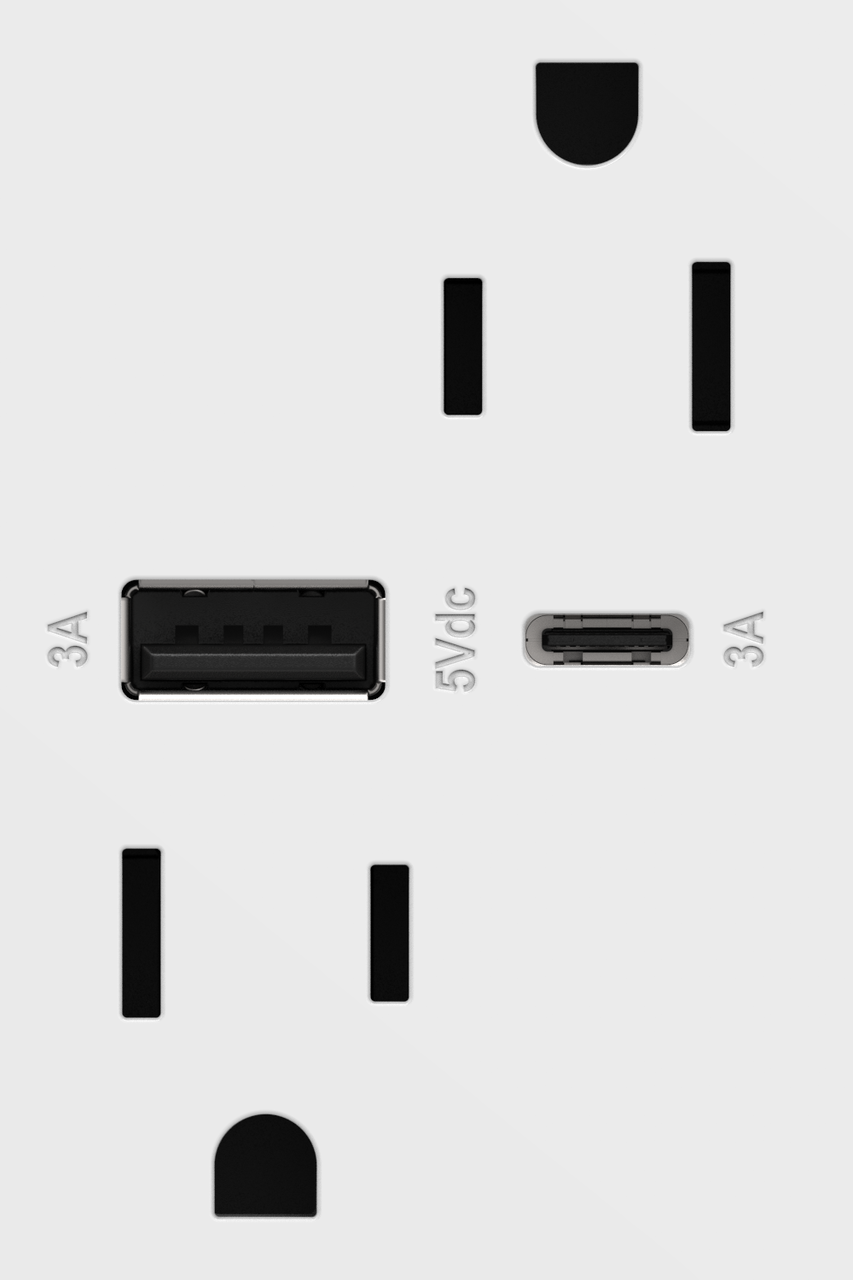

The LEGRAND ARTRUSB156ACW4 is an adorne Ultra-Fast USB Outlet designed for in-wall charging. This 15 Amp, 125 Volt tamper-resistant duplex outlet features two built-in USB connections, including Type-A and Type-C, delivering 6 amps of power for faster charging of phones and tablets. It provides a modern, adapter-free charging solution for residential and commercial applications, easily replacing traditional outlets.

• Provides fast and convenient built-in charging with 6.0A power output.
• Features both traditional USB Type-A and newer USB Type-C connections.
• Tamper-resistant shutter system protects against improper object insertion.

Product Highlights

Ultra-Fast USB Outlet with Type-A and Type-C ports for efficient device charging.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: ARTRUSB156ACW4
• Country of Origin: China

Technical Specifications

• NEMA Configuration: 5-15R
• Outlet Type: Indoor, Residential, Tamper-Resistant, USB-Charging
• Product Depth: 1.77 in
• Product Width: 2.5 in
• Finish: Matte
• Product Height: 3.0 in
• Voltage: 125 Volt
• Amperage: 15 Amp
• Material: Polycarbonate
• Sub Brand: adorne
• Applications: Commercial, Multi-Dwelling Unit, Residential
• Mounting Type: Box
• Indoor/Outdoor: Indoor
• Connection Type: Internal Pressure Plates, USB Type A/C
• Number of Gangs: 1 Gang
• Color: White
• Product Line: Pass & Seymour
• USB Features: USB-A Charging, USB-C Charging
• Wall Plate Included: No
• Number of Receptacles: 2
• Connection Location: Back Only
• Environmental Conditions: 95% (relative humidity, non-condensing)
• USB Amperage: 6 A
• Tamper-Resistant: Yes
• Number of USBs: 2
• Number of Wires: 3
• Wire Size: 14 - 12 AWG
• Certifications: UL
• Series: Adorne
