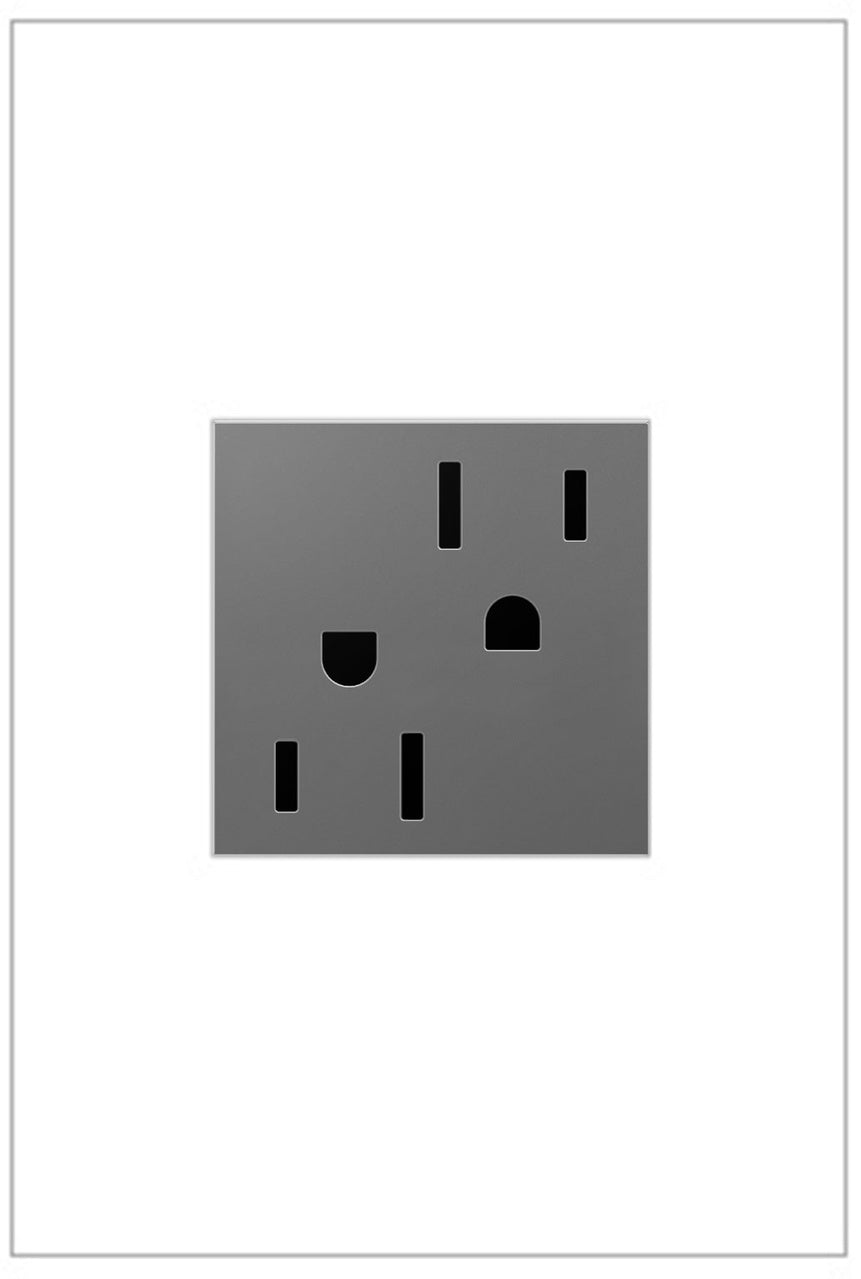

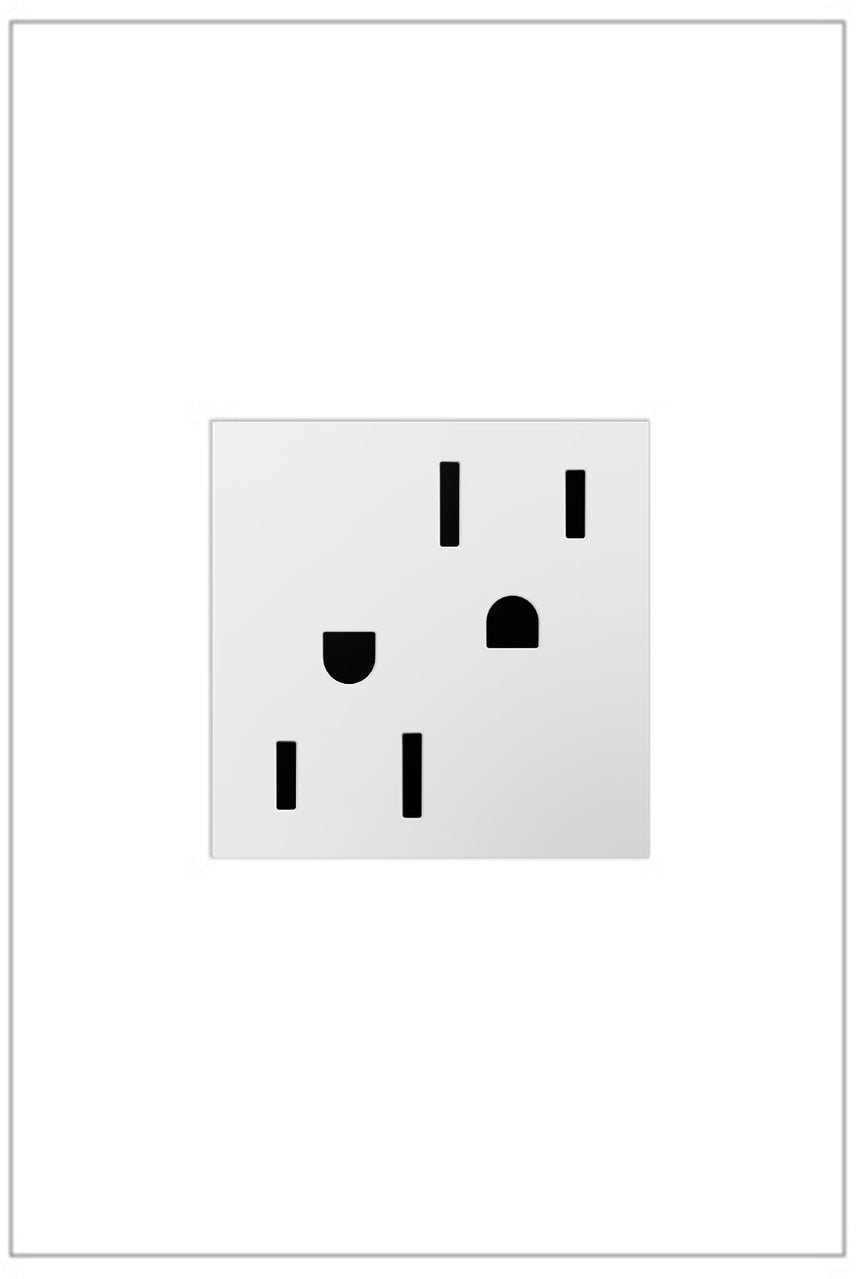

Legrand ARTR152G4 2-module tamper resis outlet 15A 125V

Product Description

The LEGRAND ARTR152G4 is a 2-module tamper-resistant outlet designed for residential, hospitality, and light commercial applications. This 15A, 125V outlet features a NEMA 5-15R configuration and requires 3 wires for installation. It provides basic power while enhancing safety with its tamper-resistant design. The unit is part of the adorne Series and is compatible with adorne Collection screwless wall plates.

• Modern upgrade for style and safety, featuring a tamper-resistant design.
• Easy installation, providing essential power for homes and various settings.
• Exclusively designed for use with screwless Wall Plates from the adorne Collection.

Product Highlights

Features a patented tamper-resistant shutter system to prevent improper insertion of foreign objects, enhancing child safety.

Product Information

Standard Information

• Brand: LEGRAND
• Manufacturer Part Number: ARTR152G4
• Country of Origin: China

Technical Specifications

• Brand: Legrand
• MPN: ARTR152G4
• Manufacturer: Legrand-adorne
• UPC: 785007234589
• GTIN: 00785007234589
• Amperage: 15 A
• Application: Residential, Hospitality, Luxury Office and Light Commercial, Multi-Dwelling Unit
• Color: Graphite
• NEMA Rating: NEMA 5-15R
• Number of Wires: 3
• Series: adorne
• Standards/Approvals: cULus E140596, UL 498
• Type: Tamper-Resistant 2-Module
• Voltage: 125 V
• Material: Polycarbonate
• Tamper Resistance: Yes
• Product Type: Outlet
• Product Line: Pass & Seymour
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: Straight Blade, Tamper-Resistant
• Product Depth: 1.73 in
• Product Height: 2.12 in
• Product Width: 1.77 in
• Connection Location: Back Only
• Wire Connection Type: Internal Pressure Plates
• Environmental Conditions: 95% (relative humidity, non-condensing)
• Indoor/Outdoor: Indoor
• Mounting Type: Box
• Number of Gangs: 1
• Wire Size: 14 - 12 AWG
